Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Newart |
| Certification: | ISO CE |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Cartons or Pallets |
| Delivery Time: | 30-35days after deposit |
| Payment Terms: | T/T, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs/months |
| Type: | Conductor Lifter | Application: | Lifting Wire |
|---|---|---|---|
| Conductor Material: | Steel And Rubber | Conductor Type: | Electrical Wire |
| Insulation Material: | Rubber | Dimension(L*W*H): | 40X40X40 |
| Name: | Three Bundle Conductor | Warranty: | At Least One Year |
| High Light: | Three Bundled Conductor Lifter,Steel Rubber Conductor Lifter,Conductor wire Lifter |
||
Stable And Reliable Three Bundled Conductors Lifter
Configuration

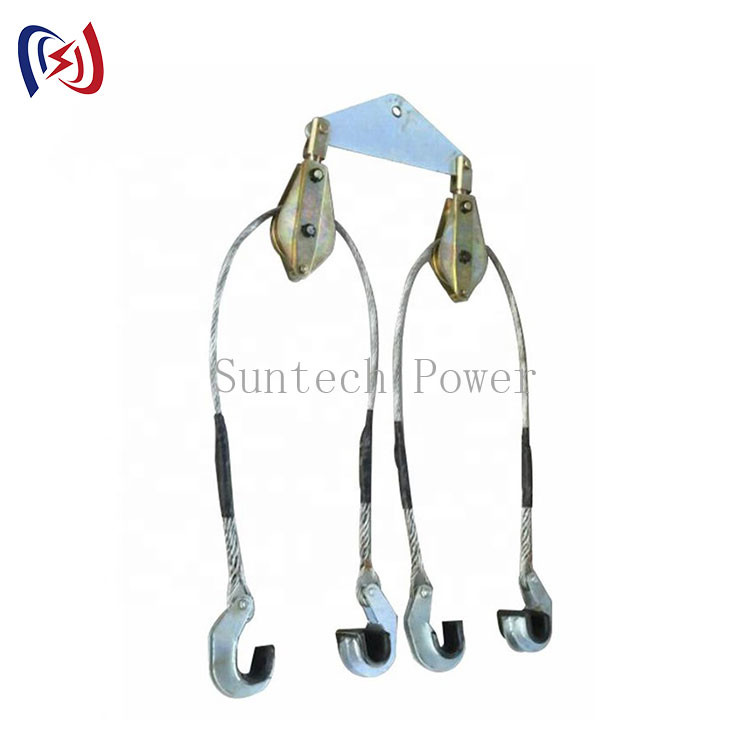

Lifting wire for two bundled conductors or four bundled conductors or sex bundled conductors or eight bundled conductors.
Advantages:
1. Use twist-free wire rope for better bearing and no bending
2. Hook surface rubber for better protection of the wire
Specification
| Item number | Model | Rated Load | Hook slot length | Weight(KG) | Note |
| 19112 | ST25-2 | 2x12 | 120 | 13 | Two |
| 19113 | ST50-2 | 2x15 | 160 | 25 | Two |
| 19114 | ST80-2 | 2x40 | 250 | 40 | Two |
| 19108 | ST36-3 | 3x12 | 120 | 21 | Three |
| 19109 | ST75-3 | 3x25 | 160 | 35 | Three |
| 19110 | ST120-3 | 3x40 | 250 | 60 | Three |
| 19115 | ST48-4 | 4x12 | 120 | 35 | Four |
| 19116 | ST100-4 | 4x25 | 160 | 60 | Four |
| 19117 | ST160-4 | 4x40 | 250 | 90 | Four |
| 19118A | ST150-6 | 6x25 | 160 | 70 | Sex |
| 19118B | ST240-6 | 6x40 | 250 | 110 | Sex |
| 19119A | ST200-8 | 8x25 | 160 | 120 | Eight |
| 19119B | ST320-8 | 5+6 | 250 | 160 | Eight |
