Place of Origin: | China |
Brand Name: | Newart |
Certification: | ISO |
Minimum Order Quantity: | 100PCS |
---|---|
Price: | Get Latest Price |
Packaging Details: | Cartons or Pallets |
Delivery Time: | 25-35days |
Payment Terms: | T/T, T/T |
Supply Ability: | 5000pcs/months |
Type: | Joints | Material: | Steel |
---|---|---|---|
Warranty: | One Year | Weight: | 0.2-8.0kg |
Used: | Connecting | Selling Units: | Single Item |
Single Package Size : | 20X10X10 Cm | Single Gross Weight: | 2.000 Kg |
High Light: | 8kg Cable Swivel Joint,0.2kg Cable Swivel Joint,ISO Cable Swivel Joint |

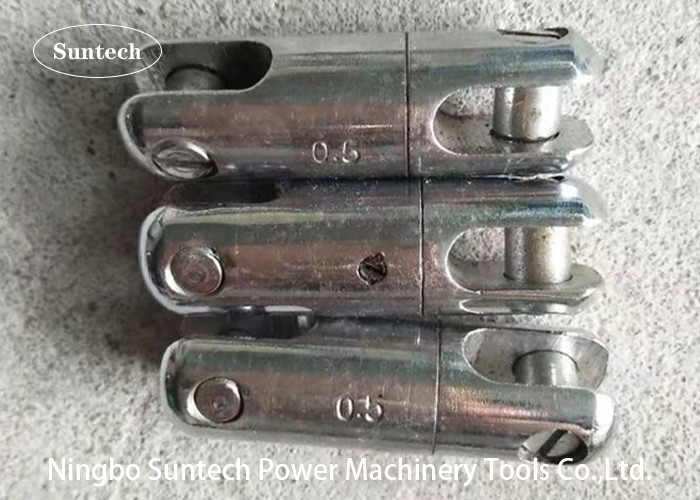

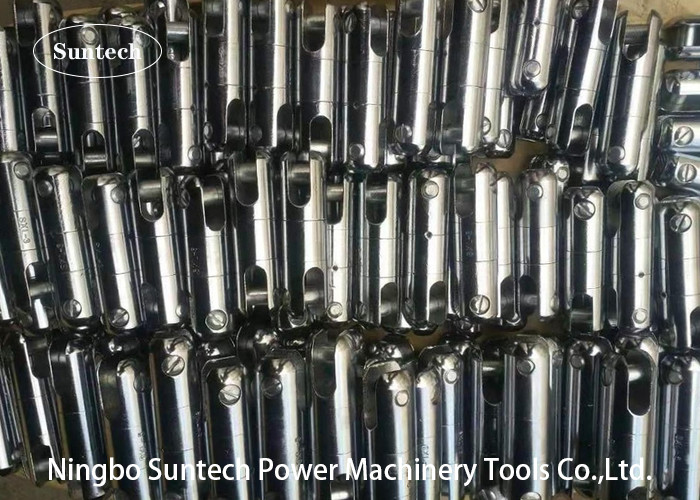

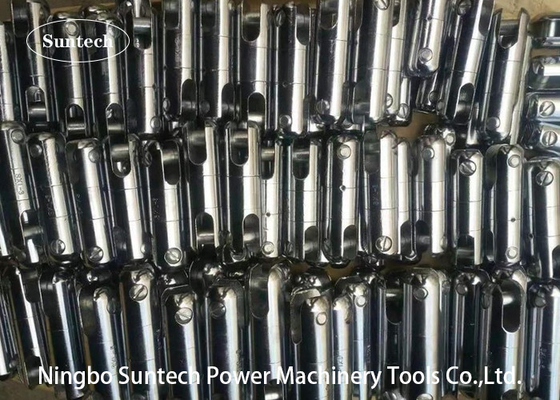

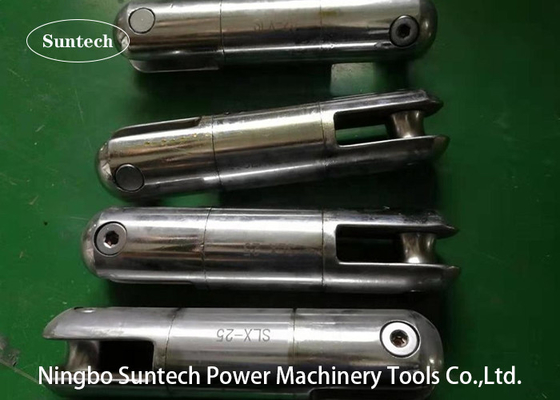

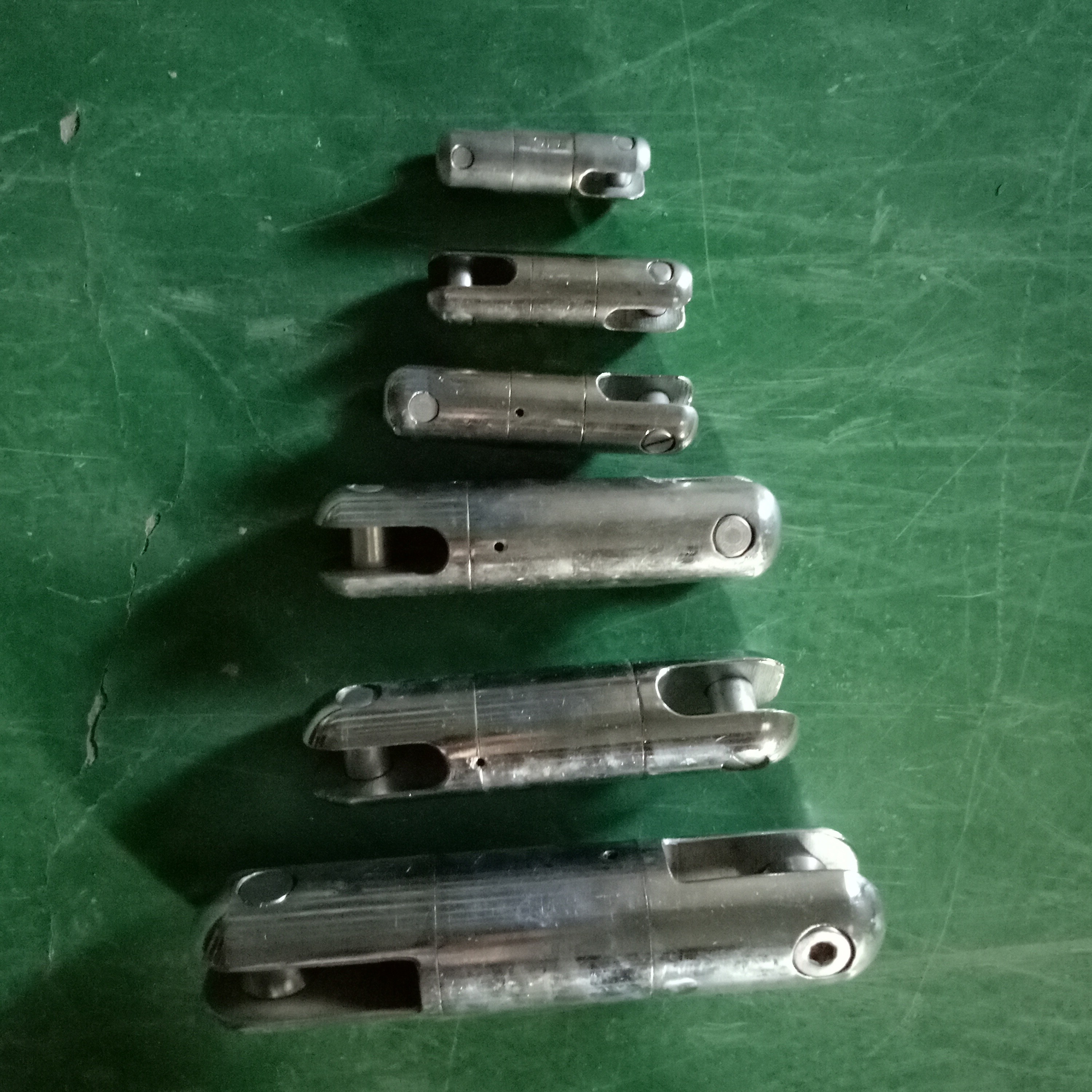

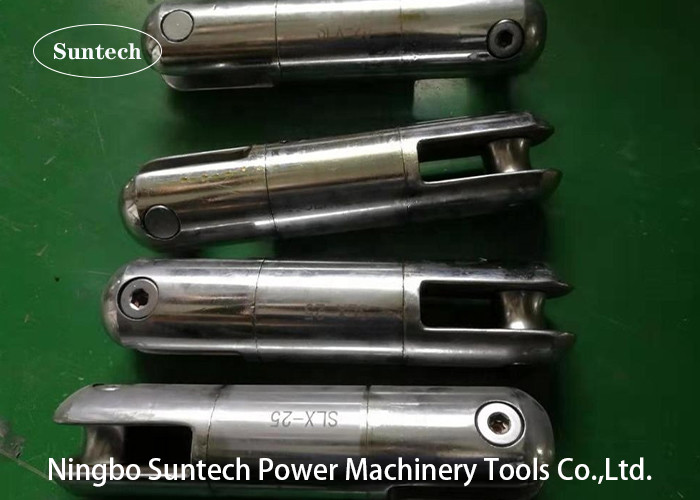

Connect Pulling Wire Rope Cable Swivel Joint 0.2 - 8.0kg Weight ISO Certification
Feature 1. High strength, light weight, and good looking. 2. It smoothly can pass through the corners, pulley, tension machine, traction machine and other equipments. Applicatoin Fixed Joint Anti-twist Connector is suitable to traction of connecting anti-twisting wire rope.In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting
Item number | Model |
Rated Load (KN) |
Main Size (mm) |
Weight (Kg) |
||||

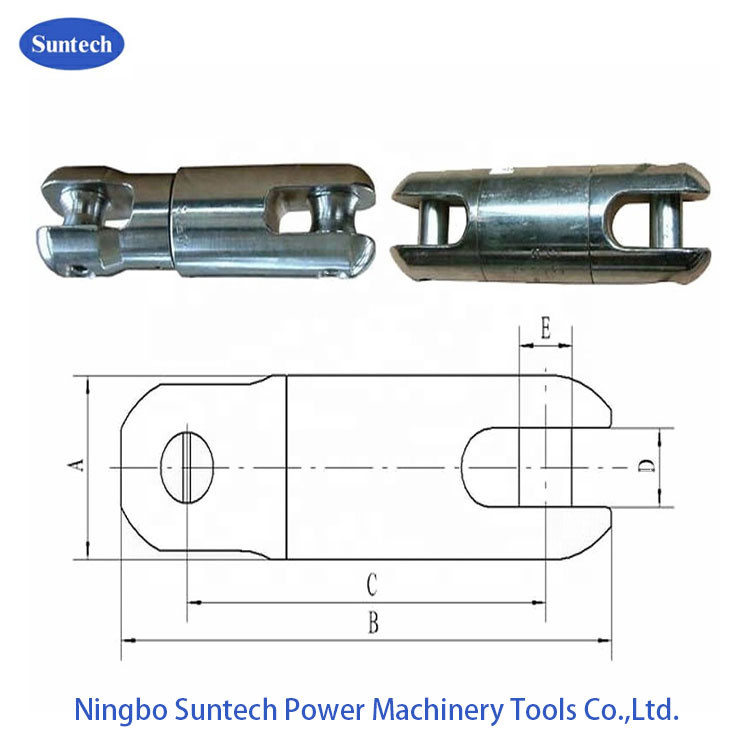

A | B | C | D | E | ||||
17121 | SLX-0.5 | 5 | 19 | 61 | 40 | 8 | 9 | 0.20 |
17122 | SLX-1 | 10 | 30 | 100 | 70 | 12 | 13 | 0.40 |
17123 | SLX-2 | 20 | 35 | 120 | 90 | 14 | 14 | 0.55 |
17124 | SLX-3 | 30 | 37 | 129 | 95 | 16 | 16 | 0.65 |

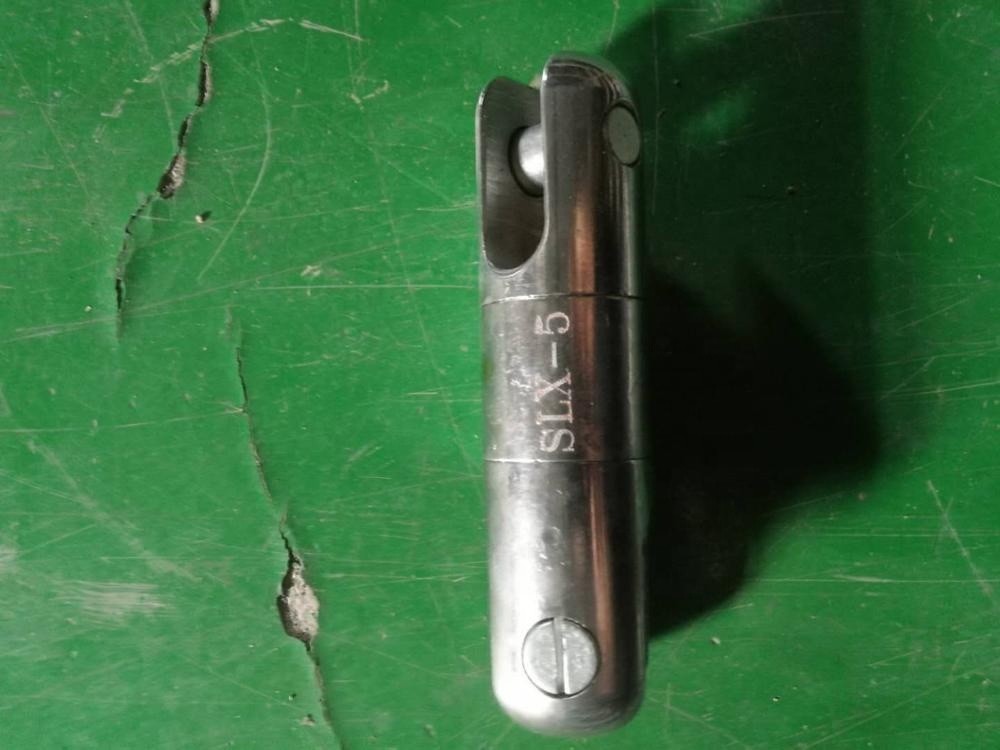

17125 | SLX-5 | 50 | 42 | 154 | 116 | 18 | 17 | 1.50 |

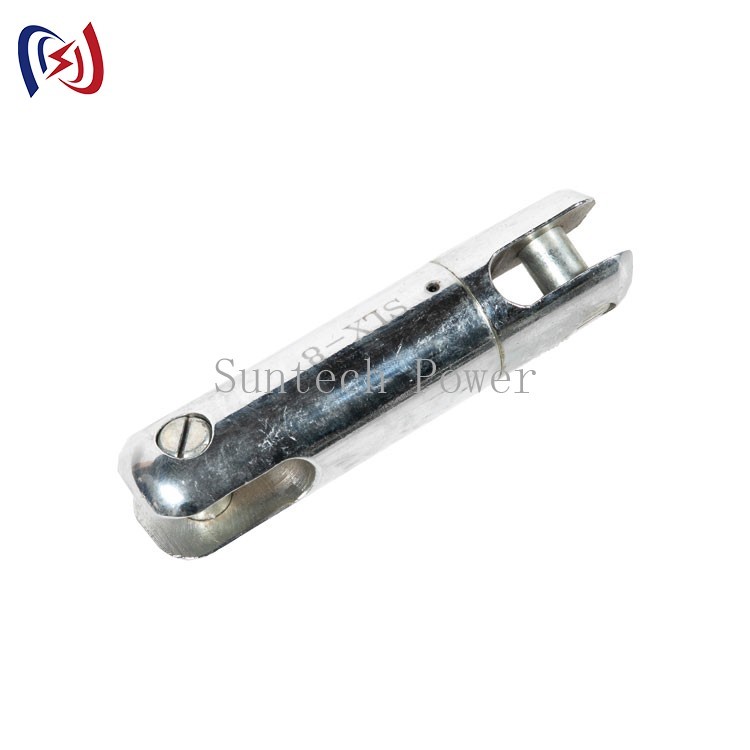

17126 | SLX-8 | 80 | 57 | 220 | 165 | 24 | 22 | 2.40 |
17127 | SL130 | 130 | 62 | 248 | 192 | 26 | 24 | 3.50 |
17128 | SL180 | 180 | 75 | 294 | 222 | 26 | 26 | 7.20 |
17129 | SL250 | 250 | 85 | 331 | 251 | 30 | 30 | 10.5 |
17130 | SL250V | 250 | 80 | 323 | 243 | 30 | 30 | 8.0 |
