Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field

|
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | SFS,FCS,FC |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Exported Cartons And Pallets |
| Delivery Time: | 7-9 days after Payment |
| Payment Terms: | T/T, T/T, Western Union |
| Supply Ability: | 900pcs/months |
| Usage: | Installation And Maintenance For Conductor | Material: | Aluminum,Steel |
|---|---|---|---|
| Rated Load: | 1KN Or 1.5KN | Conductor Distance: | 400-500mm |
| Weight: | 36-43,5kg | Name: | Inspection Trolleys Overhead Line Cart For Four Bundle Conductors |
| Feature: | Four Bundle Conductors Overhead Lines | Type: | Bicycle Trolley |
| High Light: | Inspection Trolleys Overhead Line Cart,1.5KN Overhead Line Cart,1KN Overhead Line Cart |
||
Application

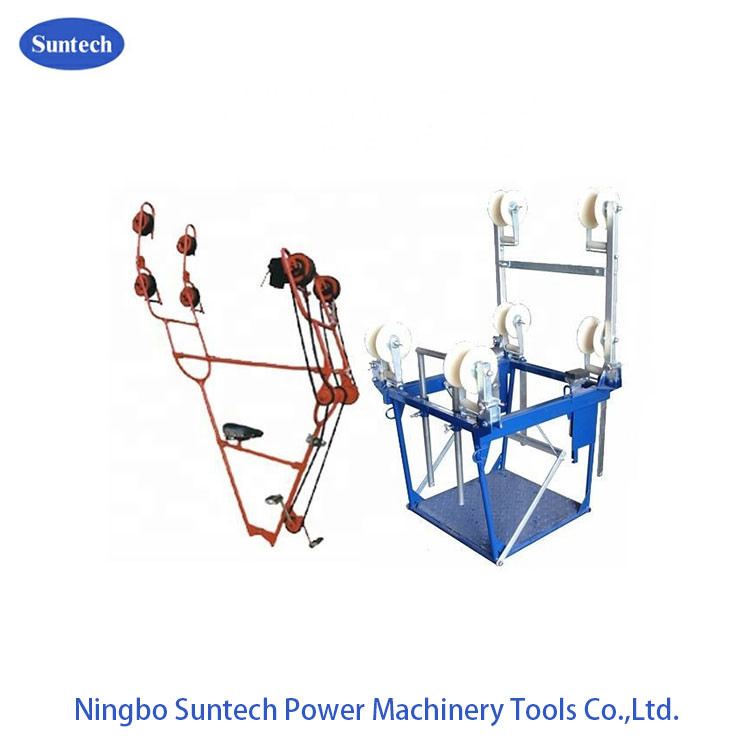

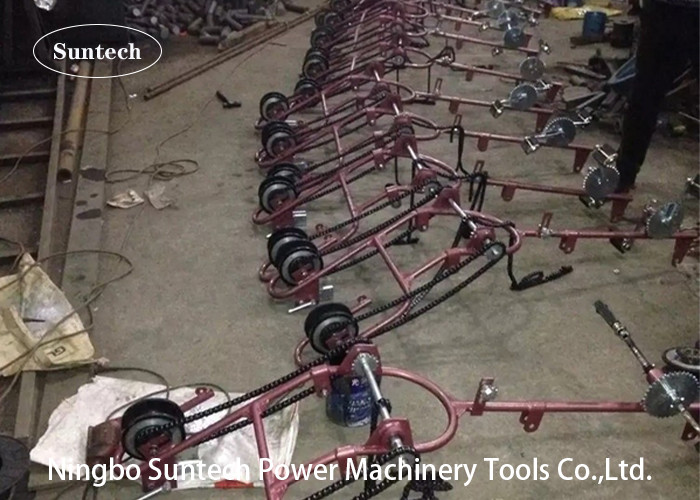

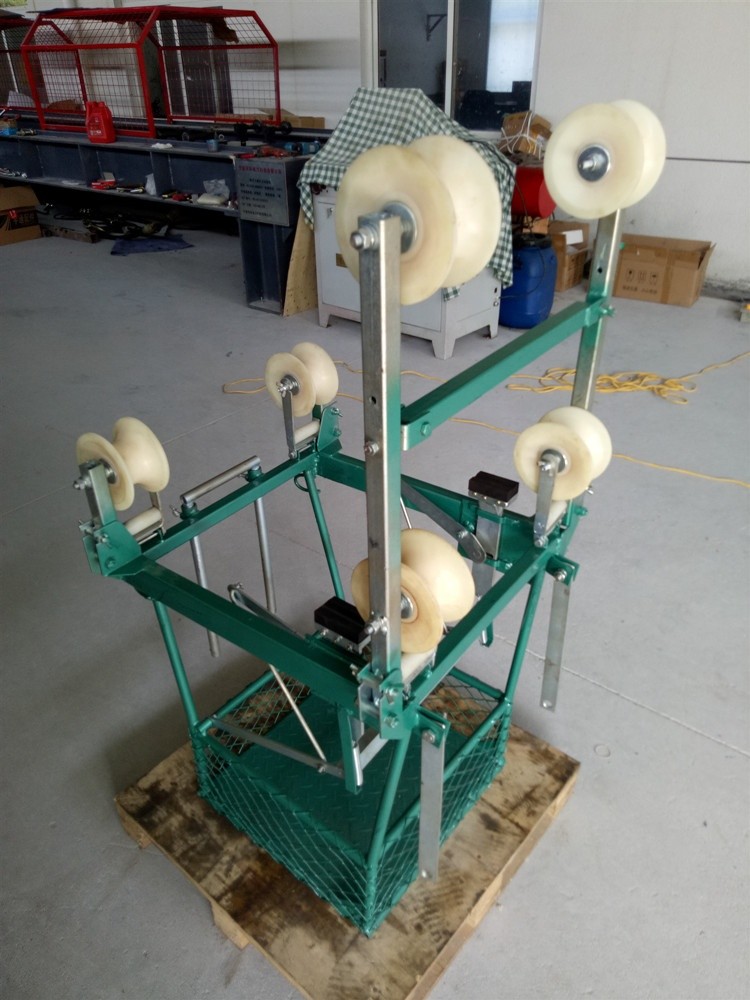

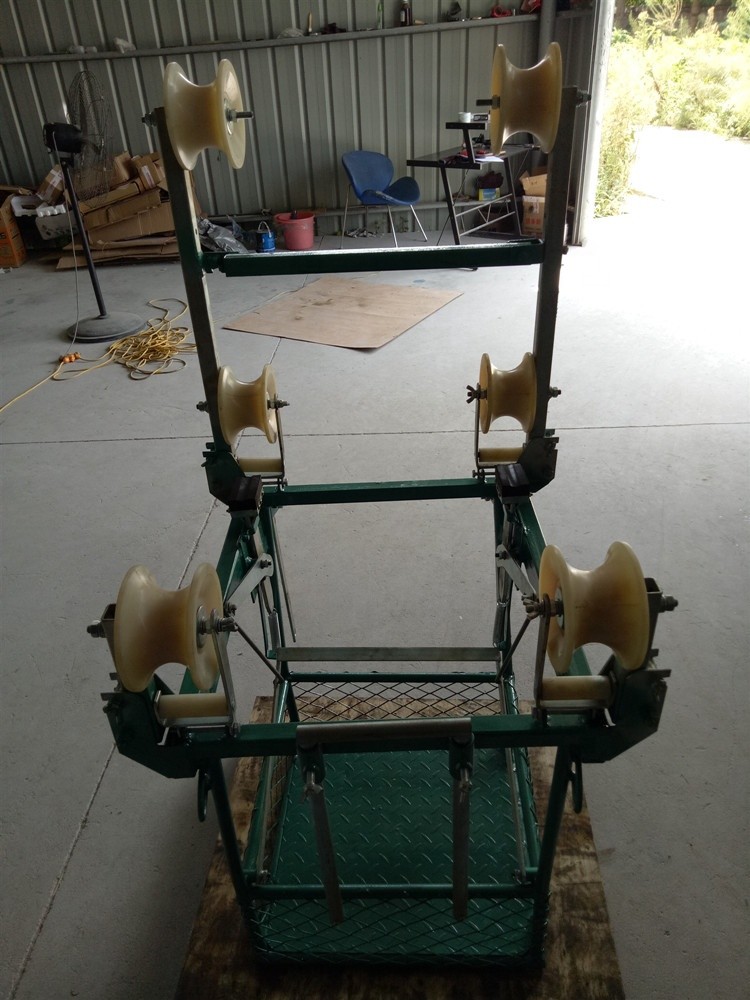

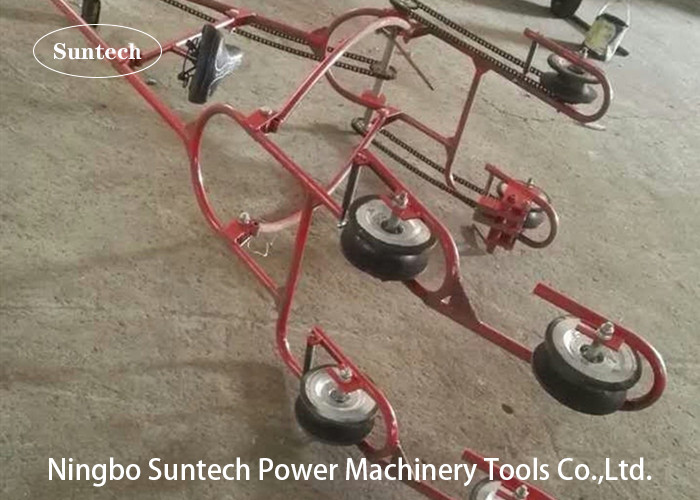

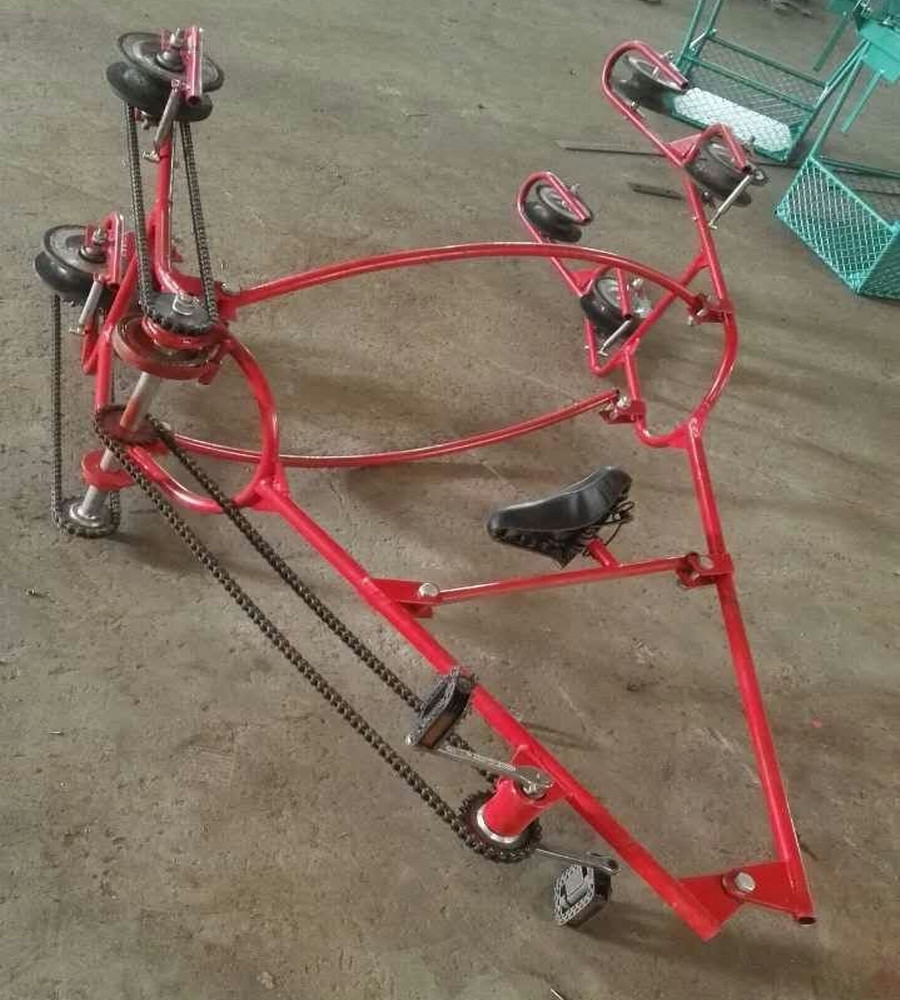

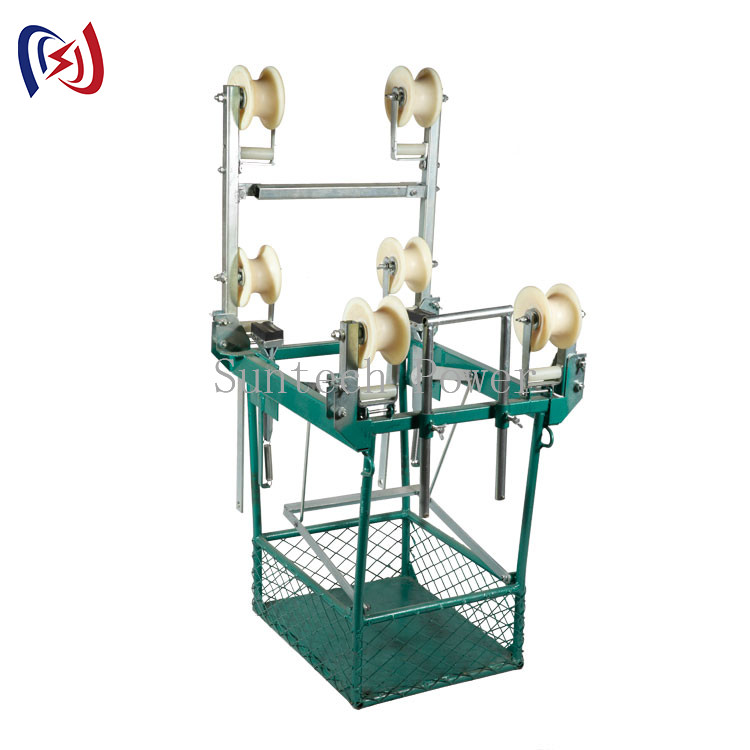

Inspection trolleys and overhead line bicycles/carts for four bundle conductors is used to install accessories and overhaul on four split wires,ect.
Notes
Please specify the wire spacing when ordering.
Technical Data
| Item number | Model |
Rated Load (KN) |
Maximum through diameter (mm) |
conductors distance (mm) |
重量(KG) Weight |
| 17271 | SFS1 | 1.5 | Φ70 | 450 | 40 |
| 500 | |||||
| 17272 | SFS3 | 1.5 | Φ40 | 400 | 36 |
| 450 | 38 | ||||
| 500 | 40 |
