SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave

SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave

    • SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave
    • SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave
    • SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave
    • SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave
    • SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave
  • SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: Suntech
    Certification: ISO,CE
    Model Number: SZ2-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Get The Latest Price
    Packaging Details: Exporting Cartons
    Delivery Time: In Stock
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Head Boards Bundles: Two
    Load: 80KN Type: Independent
    Rated Load: 80-180KN Weight: 17kg
    Model: SZ2
    High Light:

    Conductor Running Board 180KN

    ,

    180KN Balanced Pulley Headboard

    ,

    Aluminum Conductor Running Board

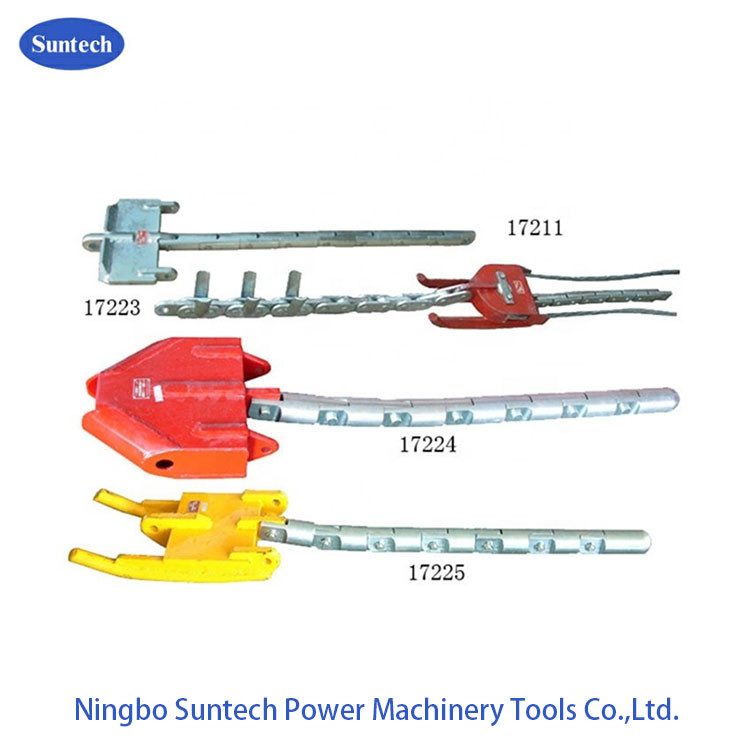

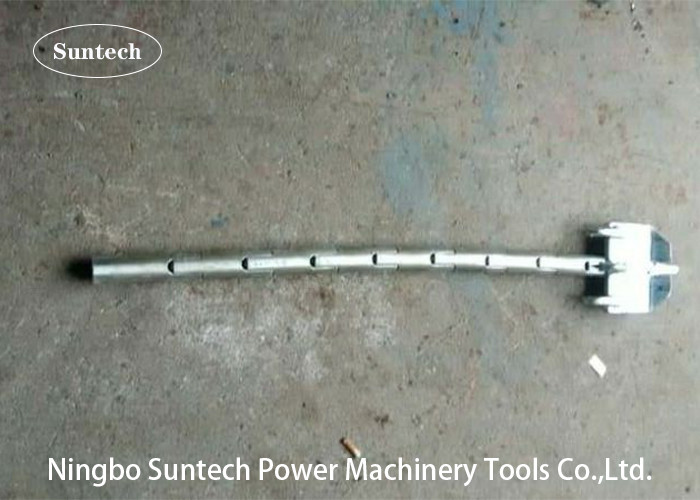

    SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave



    Notes:Can be customized according to the specificaiton of other stringing blocks.

    SZ2 Model 80KN Running Board For Two Bundle Conductors Poising Sheave Data



    Specifications:

    Item number Model

    Rated Load

    (KN)

    Applicable

    Sheave Width

    (MM)

    Weight

    (KG)

    Feature
    17220 SZ2-8 80 75 17

    Conductor

    are independent

    17221 SZ2-8A 100 19
    17222 SZ2-8B 110 19.5
    17223 SZ2A-8 80 100 90 Poising sheave
    17223T SZ2A-8T 110 100 Poising sheave
    17224 SZ2B-13 130 110 55

    Conductor

    are independent

    17225 SZ2C-13 130 110 50

    Conductor

    are independent

    17226 SZ2B-18 180 125 90

    Conductor

    are independent



    SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave 0

    This running boards, has two types, independent, poising sheave, applicable tackle width of 75-125mm wheel, it can be customized according to the specificaiton of other stringing blocks.while the rated load max reached to 18T, this model is only for two bundle conductor in the operation site. But our plant, also made the head boards, to the three, and four conductos, they all have the features, to avoid torsion strain accumulation during line stringing.



    Factory price:

    We are directly factory to give bettom price.

    Feedback:
    Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services.

    How to order?

    Step 1 Contact Us
    Show Us Item Name, Colors, Quantity and Details / Requirements
    Step 2 Make a Performa Invoice for you
    Step 3 Performa Invoice Confirm and Payment
    Step 4 Production and Shipment
