Place of Origin: | China |
Brand Name: | DongHuan |
Certification: | ISO |
Model Number: | CC-50A,CPC-50A,HT-50A |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Exported Standard Carton or Case |
Delivery Time: | 15 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs per month |
Crimping Force: | 100KN | Usage: | Cutting Cable |
---|---|---|---|
Application: | Power Construction | Type: | Cutter |
Weight: | 6.1-9.1kg | Product Name: | Hydraulic Cable Cutter |
Warranty: | One Year | ||
High Light: | Integral Manual Cable Cutter,100KN Manual Cable Cutter,100KN Hydraulic Crimping Tools |

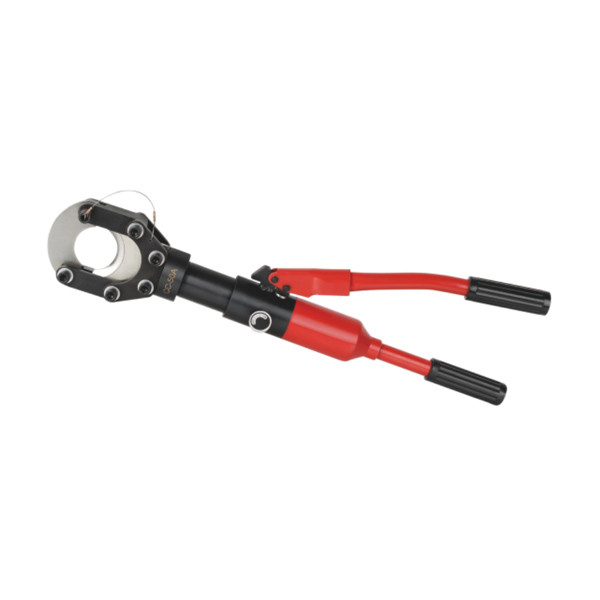

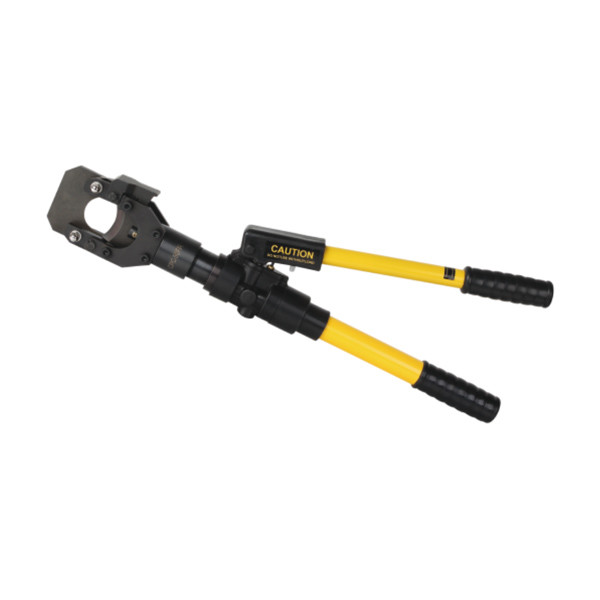

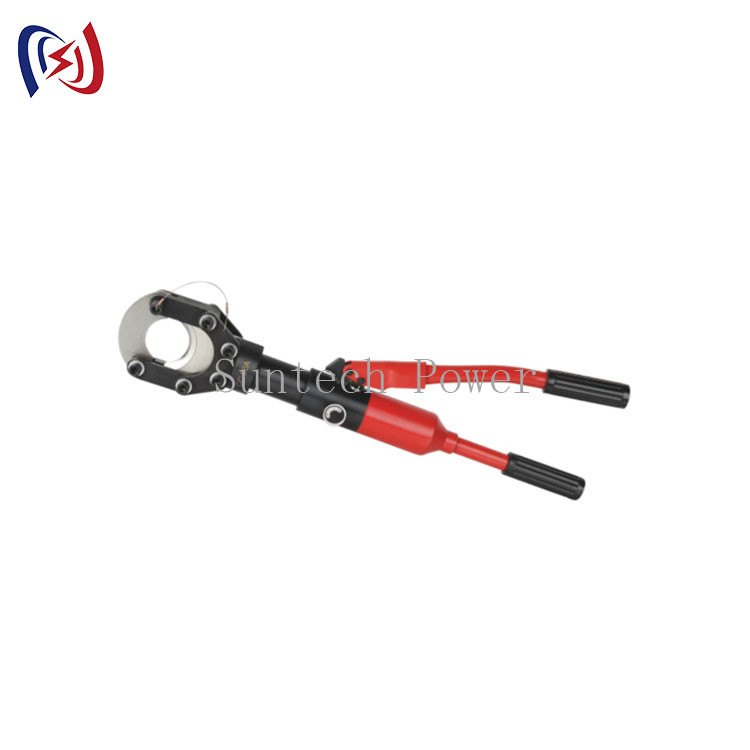

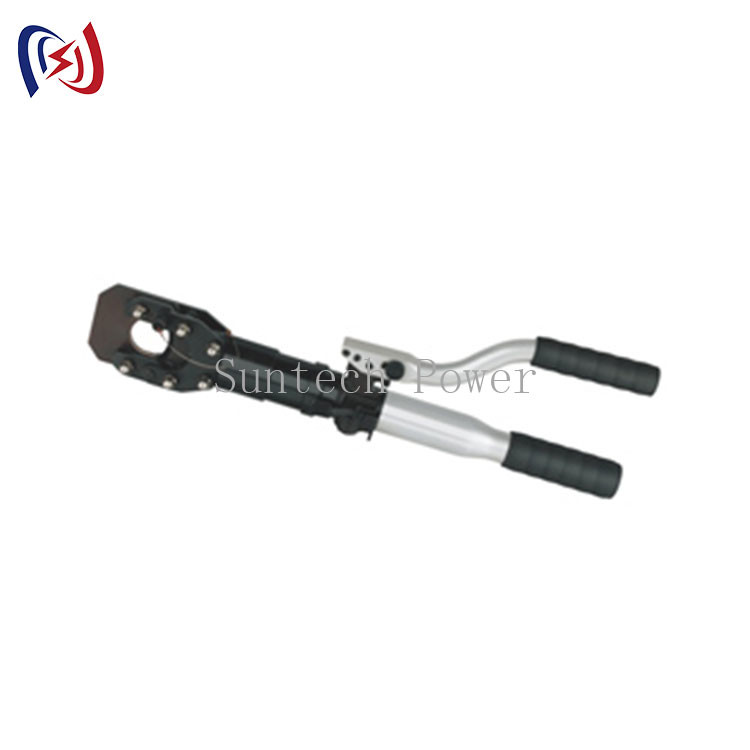

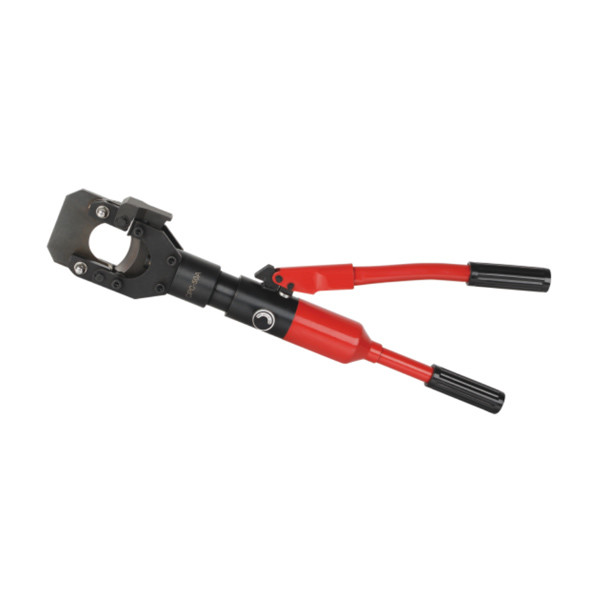

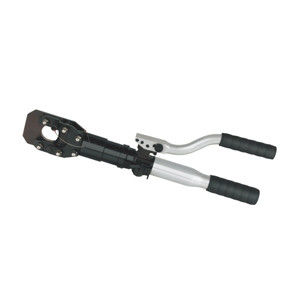

Integral Manual Hydraulic Cable Cutter
Hydraulic Cable Cutter Introduction
1.Hand operated hydraulic tool specifically designed to cut copper, aluminium and tel cables having a max overall diameter from 40 to 85mm.
2.The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cutting.
3.The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
4.The head can be easily opened to allow the cutting of running cables.
Hydraulic Cable Cutter Technical Data
Item number | 21447A | 21447B | 21447C |
Model | CC-50A | CPC-50A | HT-50A |
Crimping force |
100KN | 80KN | 70KN |
Cutting range |
CU/AL cable Φ50mm max |
steel rope cable Φ18mm max |
steel rope cable Φ15mm max |
ACSR cable Φ50mm ma |
steel strand Φ10mm max |
||
armored CU/AL cable Φ50mm max |
ACSR cable Φ50mm max |
||
strand Φ16mm max |
armored CU/AL cable Φ50mm max |
||
Stroke | 50mm | 50mm | 40mm |
Length |
approx.620mm | approx.620mm | approx.660mm |
Weight(kg) |
approx.N.W6.1KG G.W9.1KG |
approx.N.W6.2KG G.W9.2KG |
approx.N.W6.5KG G.W8.9KG |
Package | plastic box | plastic box | plastic box |
Details
Contact Person: Peter
Tel: 86-13958364836
