Integral Hydraulic Crimping Plier EP-430 Hydraulic Crimping Tools

Negotiable
MOQ
Negotiable
Price
Integral Hydraulic Crimping Plier EP-430 Hydraulic Crimping Tools
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel, Chrome Vanadium
Handle Material: Insulating Resin
Jaw Surface: Smooth
Product Name: Hydraulic Crimping Pilers
Crimping Force: 120KN
Crimping Range: 16-400
Highlight:

Vanadium Hydraulic Crimping Pliers

,

Chrome Hydraulic Crimping Pliers

,

Hydraulic Crimping Pliers 120KN

Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: EP-430
Payment & Shipping Terms
Packaging Details: Exported Standard Case
Delivery Time: 7-15days after Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Product Description

Integral Hydraulic Crimping Plier EP-430 Hydraulic Crimping Tools



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either



1. The tool has a double speed action,a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping.

2. For easy and comfort operation, the tool head can rotate 180 degress.

3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the

pressure release system can easily be operated at any stage of compression

4. With interchangeable dies and safety system inside.



Item number 16199 16200 16200A
Model EP-430 EP-510 EP-610

Crimping

force

120KN 130KN 130KN

Crimping

range

16-400mm² 16-400mm² 16-400mm²
type hexagon crimping hexagon crimping hexagon crimping
Dies

50,70,95,120,150,

185,240,400mm²

50,70,95,120,150,

185,240,400mm²

50,70,95,120,150,

185,240,400mm²

Stroke 32mm 38mm 42mm
Oil capacity(CC) 145cc 200cc 200cc
Length approx.770mm approx.780mm approx.800mm
Weight(KG)

approx.N.W7.1KG

G.W10.7KG

approx.N.W7.4KG

G.W11KG

approx.N.W8.5KG

G.W12.1KG

Package plastic box plastic box plastic box



Hydraulic Crimping Pliers Feature;

1. Open the working clamp head, 350 ° free rotation
2. Two-stage hydraulic system to improve work efficiency and more effort
3. Built-in safety valve to prevent overpressure
4. Press the manual release button
5. Press release halfway, quick reset

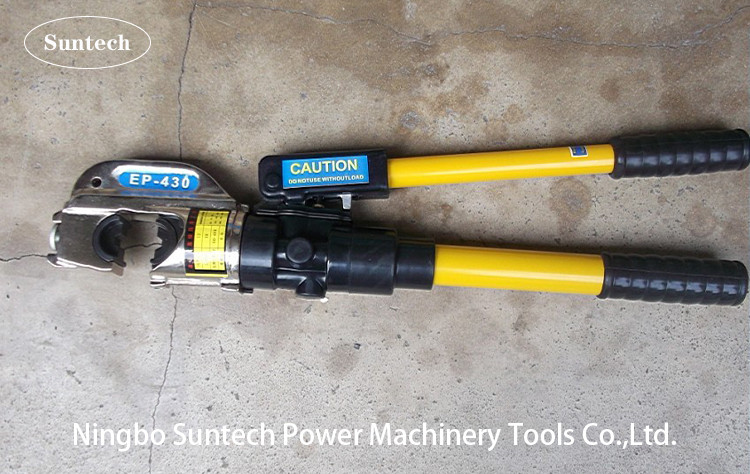

Integral Hydraulic Crimping Plier EP-430 Hydraulic Crimping Tools 0

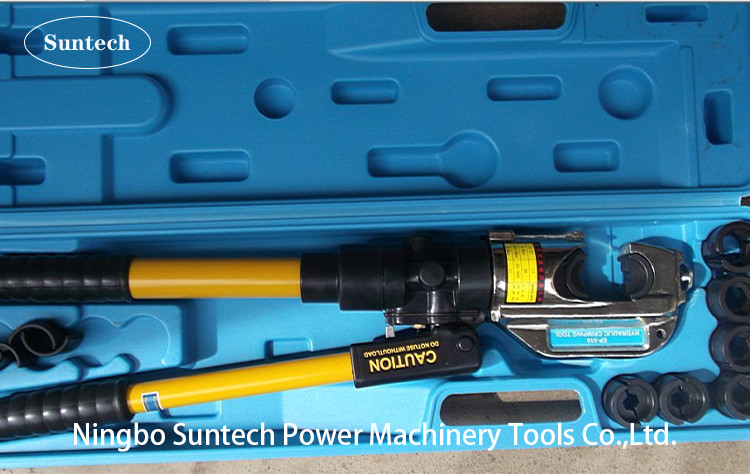

Integral Hydraulic Crimping Plier EP-430 Hydraulic Crimping Tools 1
