Place of Origin: | China |
Brand Name: | Donghuan |
Certification: | ISO |
Model Number: | YQK-120,YQK-240 , YQK-300 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Get the lastest Price |
Packaging Details: | Standard Exported Case |
Delivery Time: | 7-15days after Payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5pcs per two months |
Material: | Aluminum, Aluminum Bronze, Aluminium Alloy | Hand Material: | Soft Grip Plastic |
---|---|---|---|
Application: | Crimping | Product Name: | Hydraulic Crimping Pilers |
Weight: | 3.4-4.5kg | Crimping Type: | Crimping Tool |
Crimping Range: | 10-120 | Crimping Force: | 80-100KN |
Warranty: | One Year | Package: | Box |
High Light: | 100KN Hydraulic Crimping Tools,100KN Hydraulic Crimping Plier,80KN Hydraulic Crimping Plier |

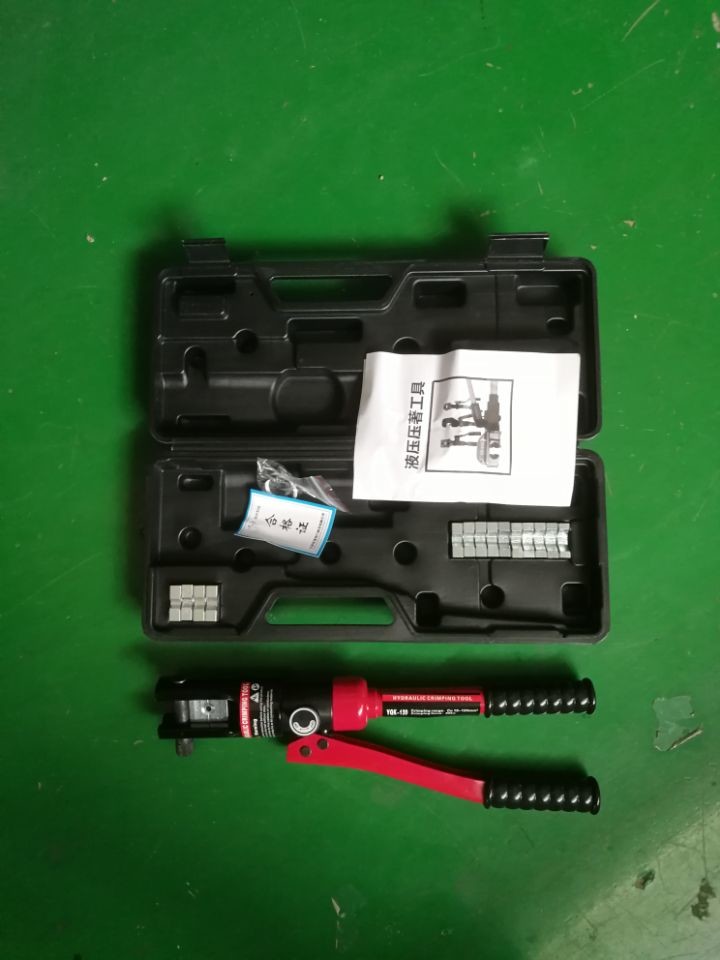

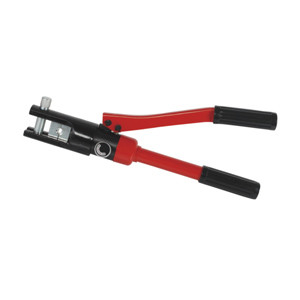

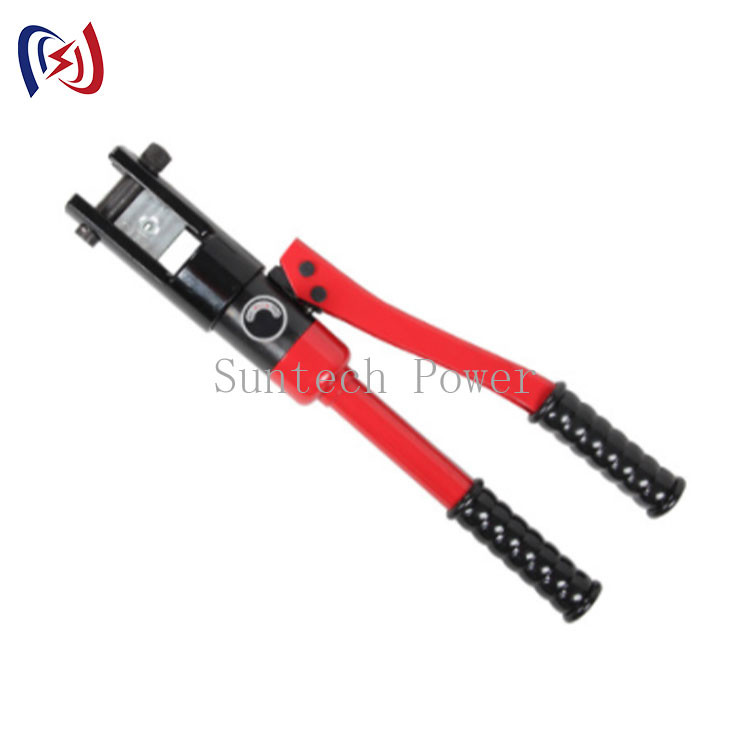

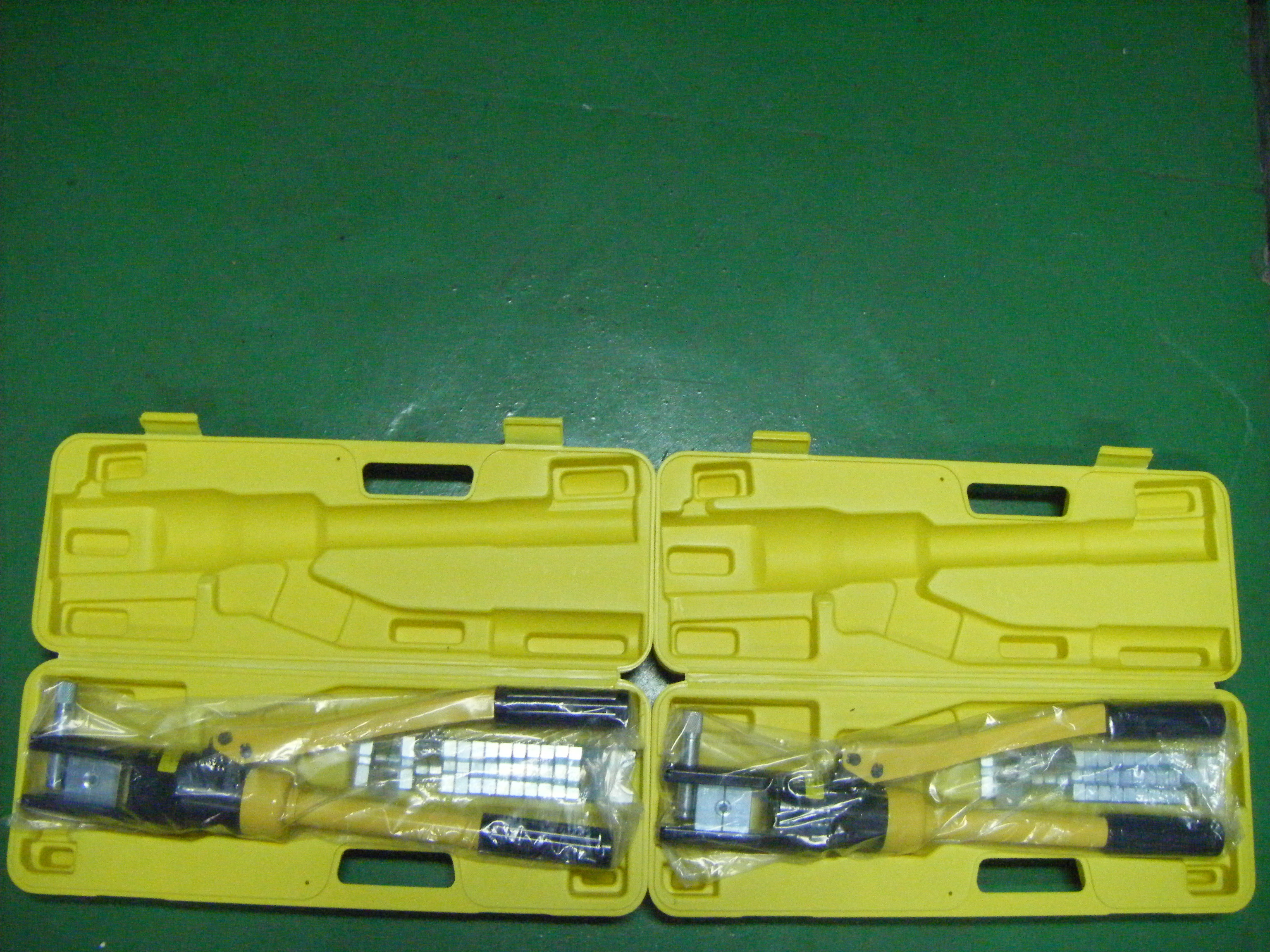

Hydraulic Crimping Tool Model YQK-120 Quick Hydraulic Crimping Pliers
Hydraulic Crimping Tool Specification
Item number | 16181 | 16182 | 16183 |
Model | YQK-120 | YQK-240 | YQK-300 |
Crimping force |
80KN | 100KN | 100KN |
Crimping range |
10-120mm² | 16-240mm² | 16-300mm² |
type | hexagon crimping | hexagon crimping | hexagon crimping |
Dies |
10,16,25,35,50, 70,95,120mm² |
16,25,35,50,70,95, 120,150,185,240mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
Stroke | 16mm | 20mm | 20mm |
Length | approx.410mm | approx.470mm | approx.470mm |
Weight(KG) |
approx.N.W3.4KG G.W4.5KG |
approx.N.W4KG G.W6KG |
approx.N.W4.5KG G.W6.5KG |
Package | plastic box | plastic box | plastic box |
Our products include:manual hand winch,worm gear winch,brake winch,hand puller,boat trailer,boat winch,ATV winch,jockey wheel,leaf spring,coupler,trailer roller and other trailer parts.Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in boat trailer, lifting, crane, agriculture, greenhouse, constructions, terminals, marine boat, pontoon boat, as well as more industries.
