Place of Origin: | Ningbo Port |
Brand Name: | Donghuan |
Certification: | ISO9001 |
Model Number: | SWG-25 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export Carton |
Delivery Time: | 7days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500pcs per month |
Material: | ALLOY | Application: | Power Construction |
---|---|---|---|
Type: | Hydraulic Pipe Bender | Output: | 60-200 |
Stroke: | 120-380 | Product Name: | Hydraulic Pipe Bender |
Package: | Box | Warranty: | 1 Year |
High Light: | SWG-25 Hydraulic Pipe Bender,Red hydraulic tube bender,ALLOY Hydraulic Pipe Bender |

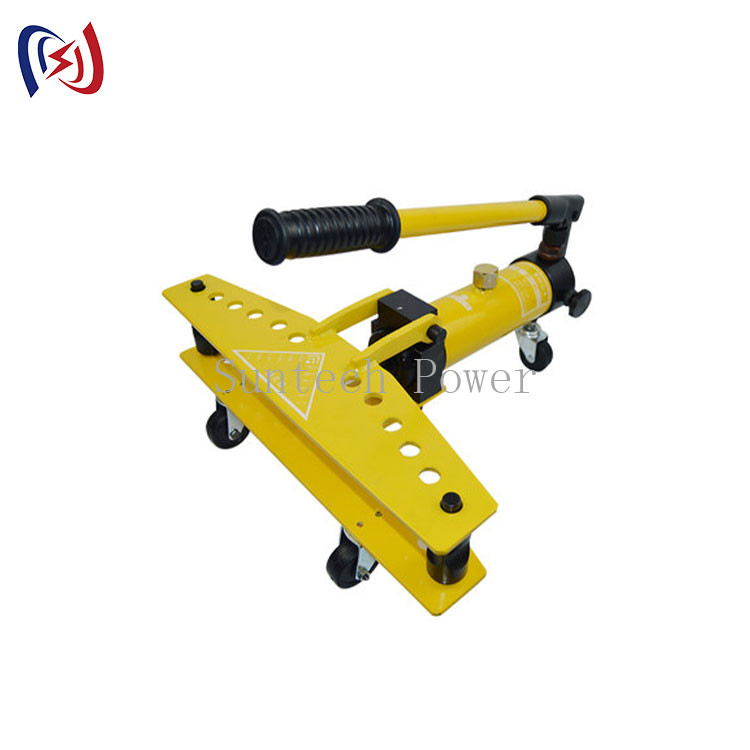

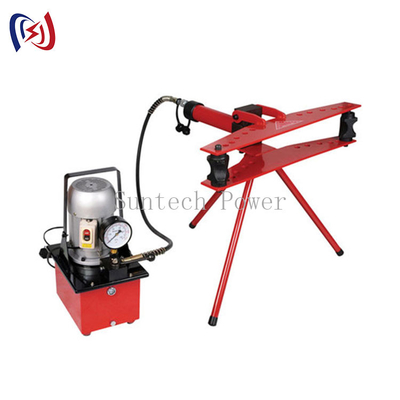

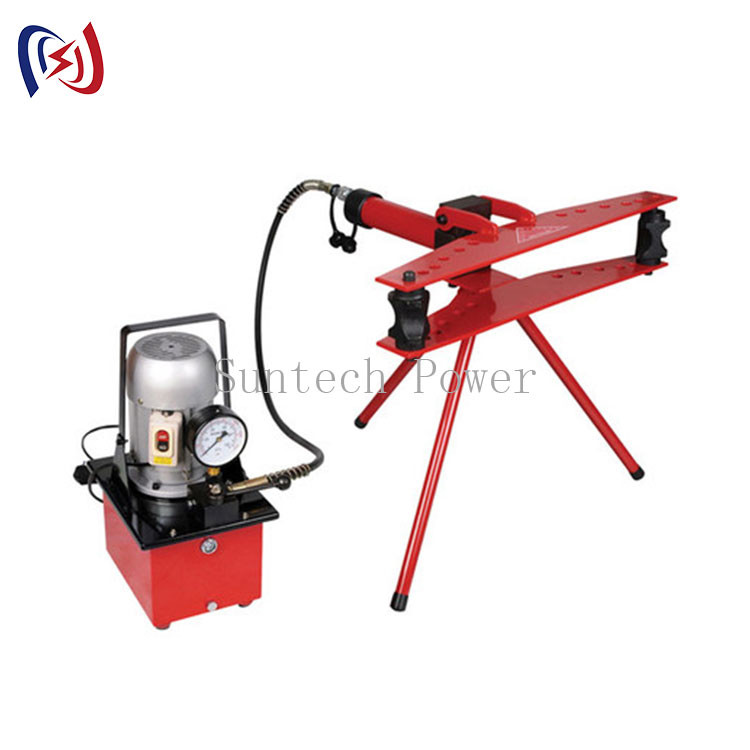

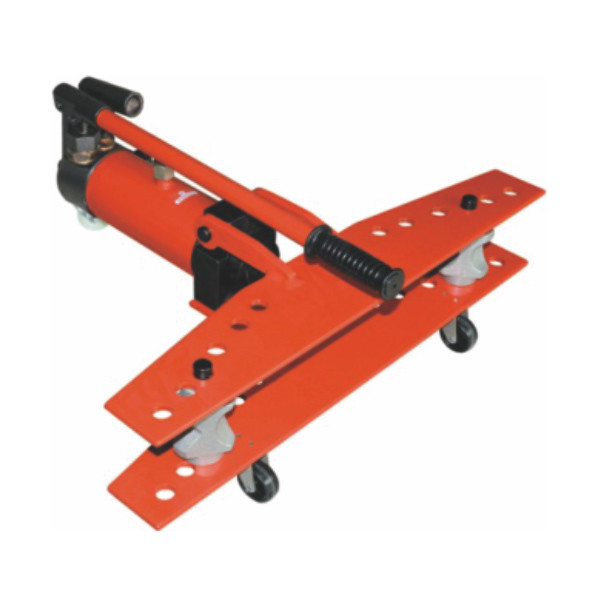

Model SWG-25 Portable Electric Hydraulic Pipe Bender Manual Bar Bender
Portable Electric Hydraulic Pipe Bender Application
SWG-25 Portable manual hydraulic busbar bender, pipe bender is applicable to the general water pipe, conduit, gas pipe, carbon steel pipe, bending angle with 90., it can be shaped 90º one time. The mold is made of aluminum alloy or solid ball cast iron.
Portable Electric Hydraulic Pipe Bender Specification
Item number | 06250 | 06250-1 | 06250-2 | 06250-3 | 06250-4 | 06250-5 |
Model | SWG-25 | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
Cutting force | 60 | 100 | 160 | 180 | 200 | 200 |
Stroke (MM) |
120 | 160 | 230 | 320 | 380 | 380 |
Wall thickness (MM) |
1.5-5 | 2-5 | 2.5-5 | 2.5-5 | 2.5-6 | 2.5-6 |
Weight | 16 | 20 | 47.5 | 97 | 137 | 186 |
Bending angl(rad) | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | ≤90° |
Pipe diameter(mm) |
Φ10 Φ13 Φ16 Φ19 Φ22 Φ25 |
Φ13 Φ16 Φ19 Φ22 Φ28 Φ34 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114 |
Details
