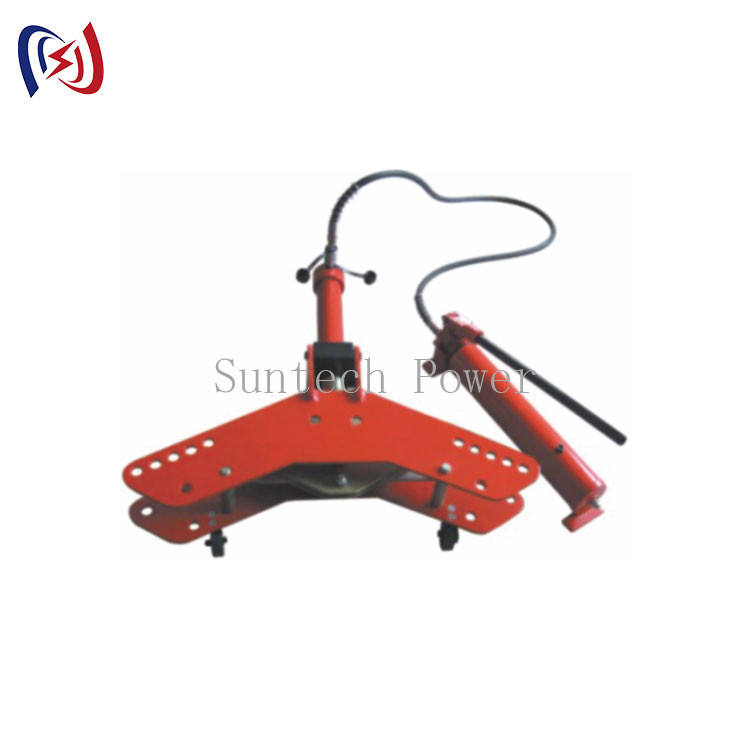

Model SCD-100D Portable Electric Hydraulic Bus-Bar Bender Manual Bar Bender
Manual Bar Bender Application
For vertical bending. Working with a manual hydraulic pump or an electric hydraulic pump.
Manual Bar Bender Specification
| Item number | 06245 | 06246 | 06245A | 06246A |
| Model | SCB-100D | BCB-100A | SCB-120D | BCB-120A |
| Output(Mpa) | 44 | 59 | ||
| Stroke(MM) | 250 | 320 | ||
| Bending ability(MM) | 40-100(Width) 4-10(Thickness) | 440-120(Width) 4-12(Thickness) | ||
| Bending angle(MM) | 90°<A<180° | 90°<A<180° | ||
| Radius of curvature | 25 times the width | 25 times the width | ||
| Weight(KG) | 50KG | 100KG | ||
| Size(MM) | 760x380x580mm | 960x450x540mm | ||

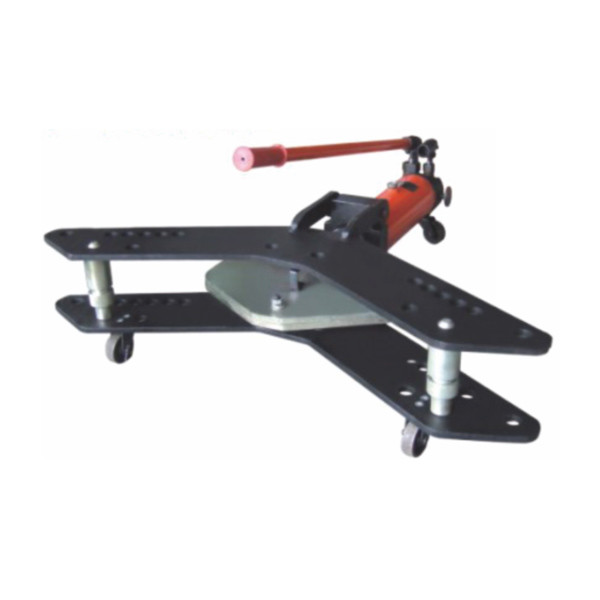

Manual Bar Bender Details
