Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo Port |
| Brand Name: | Donghuan |
| Certification: | ISO9001,CE |
| Model Number: | CWC-150 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Carton or Ply-wood pallet |
| Delivery Time: | 15days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800pcs per month |
| Power: | Hydraulic | Type: | Hydraulic Cutting Tools |
|---|---|---|---|
| Application: | Power Construction | Package: | Wooden Box |
| Product Name: | Hydraulic Copper Aluminum Bus-bar Cutter | Material: | Alloy Steel |
| Cutting: | 200-300KN | Feature: | Portable |
| High Light: | Aluminum BusBar Cutter,300KN BusBar Cutter,300KN Hydraulic Crimping Tools |
||

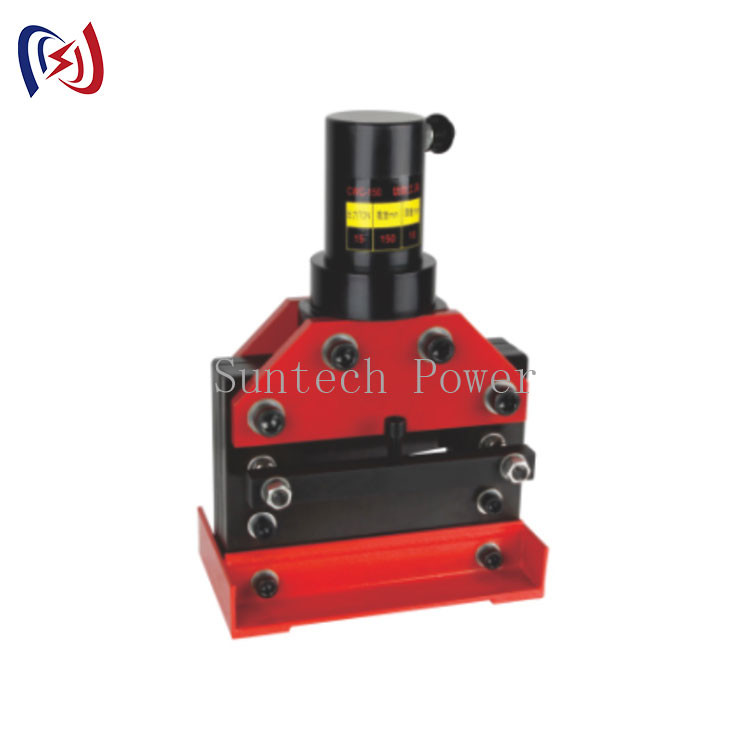

Portable Model CWC-150 High Quality Hydraulic Copper Aluminum Bus-bar Cutter for Cutting
Bus-bar Cutter Application
Portable Model CWC Hydraulic Bus Bar Cutter For Cutting is formed by high strength alloy steel precision.It is high efficacy due to smooth fracture surface and neat without burrs. It only takes a few seconds to cut off the Angle. It is mainly used in the iron tower factory, cutting off in transmission and distribution engineering construction site. It is used to cut off the copper and aluminum platoon,and the hydraulic pump needs to be matched.
| Item number | 06242-1 | 06242-1A |
| Model | CWC-150 | CWC-200 |
| Cutting force | 200KN | 300KN |
|
Max thickness of sheet |
CU/AL plate 10mm | 12mm |
| Width of sheet | CU/AL plate 150mm | 200mm |
| Height | approx.440mm | approx.460mm |
| Weight(KG) |
approx.N.W30KG G.W33KG |
approx.N.W37KG G.W40KG |
| Package | wooden case | wooden case |

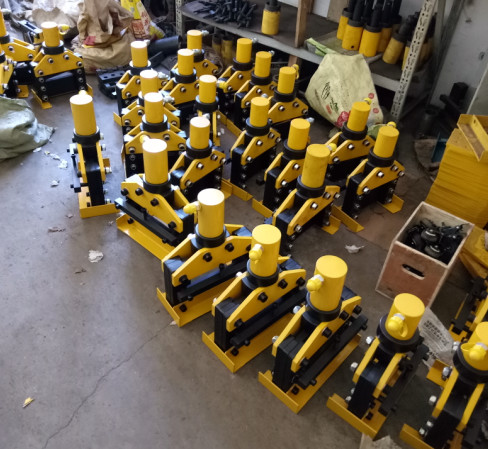

Bus-bar Cutter Details
