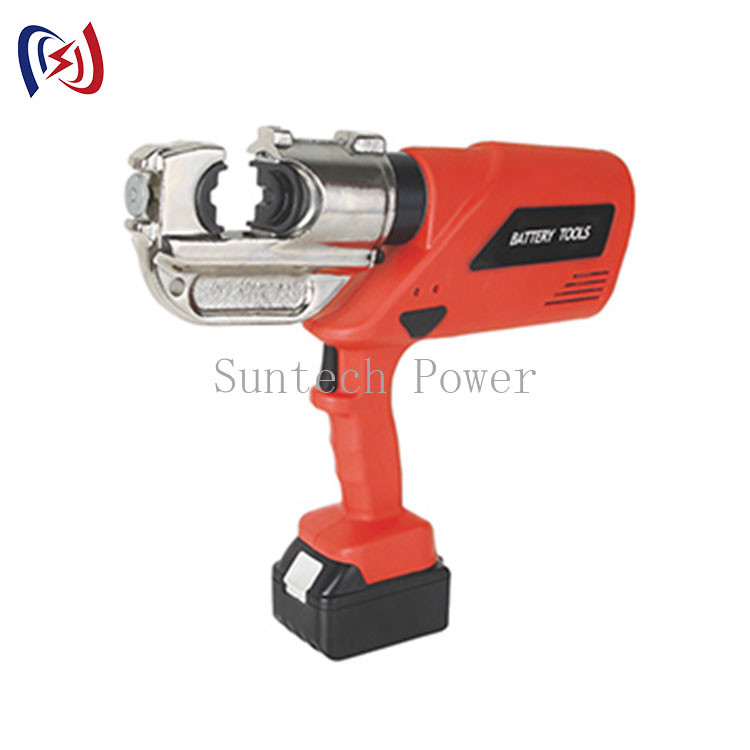

Charging Type Hydraulic Crimping Pliers
Hydraulic Crimping Pliers Introduction
Portable battery electrical powered hydraulic crimping tool, crimping pliers is used to compress copper and aluminum terminals.
Hydraulic Crimping Pliers Technical Data
| Item number | 16209A | 16209 |
| Model | HT-Z1 | HT-Z2 |
|
Crimping force(KN) |
60KN | 60KN |
|
Crimping range |
16-400mm² | 16-300mm² |
|
Crimp charge |
250times(CU150mm²) | 320times(CU150mm²) |
|
Crimping cycle |
3s-6s(depend on the size of cable) | 3s-6s(depend on the size of cable) |
| Stroke | 35mm | 17mm |
|
voltage |
18V | 18V |
| Capacity | 3.0Ah | 3.0Ah |
|
Charging time |
2hours | 2hours |
|
Weight (kg) |
approx.N.W10KG G.W17KG |
approx.N.W8KG G.W15KG |
| Package | plastic box | plastic box |
Hydraulic Crimping Pliers Details
