| Place of Origin: | Ningbo,Zhejiang,China |
| Brand Name: | Donghuan |
| Certification: | ISO9001 |
| Model Number: | CPB-1 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Case |
| Delivery Time: | 15 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per month |
| Power: | Hydraulic | Product Name: | Hydraulic Pipe Cutter |
|---|---|---|---|
| Type: | Hydraulic Cutting Tools | Application: | Power Construction |
| Package: | Wooden Box | Material: | Alloy Steel |
| Stroke: | 180-380 | ||
| High Light: | Handheld Hydraulic Pipe Cutter,180mm Hydraulic Pipe Cutter,CPB-1 Hydraulic Cutting Tools |
||

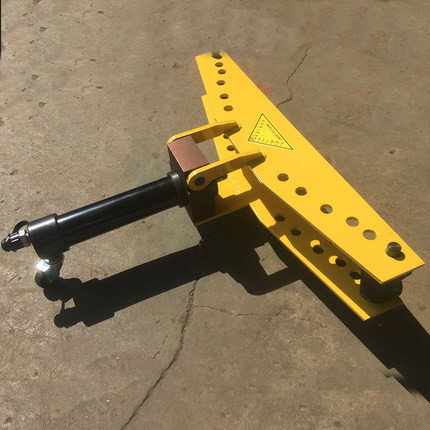

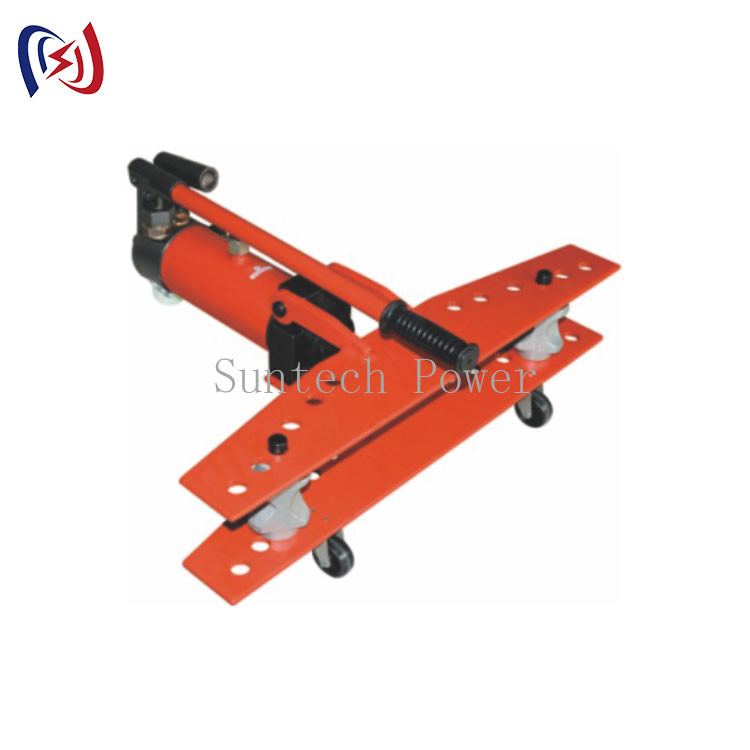

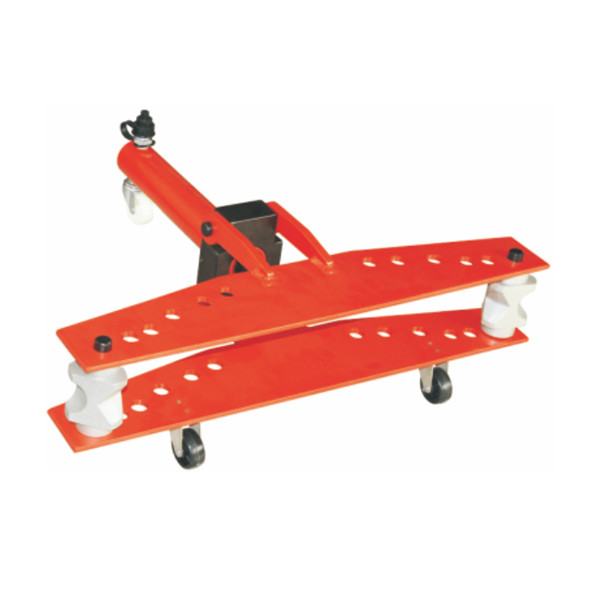

Portable Model CPB-1 High Quality Hydraulic Pipe Cutter for Cutting
Hydraulic Pipe Cutter Application
Simple operation, convenient maintenance, for construction, chemical industry, water, oil, coal and other industries to provide the ideal pipe bending tools.
Rely on hydraulic cold bending operations of hydraulic tools. We offer a wide range of hydraulic pipe bending machine that are used for pipe bending purpose in various industries. It is designed for common water pipe,conductor pipe,gas pipe,thick steel pipe and so o
In addition to their precision, toughness and variety. Our pipe bending machines offer these great features. Consumables can be changed easily.
| Item number | 06251 | 06252 | 06253 | 06254 | 06255 |
| Model | CPB-1 | CPB-2 | CPB-3 | CPB-4 | CPB-5 |
| Cutting force | 100 | 250 | 320 | 380 | 380 |
| Stroke(MM) | 180 | 250 | 320 | 380 | 380 |
|
Wall thickness (MM) |
2-5 | 2.5-5 | 2.5-5 | 2.5-6 | 2.5-6 |
| Weight | 18 | 40 | 85.5 | 128.5 | 177.5 |
|
Bending angle (rad) |
π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π |
|
Pipe diameter (mm) |
Φ13 Φ16 Φ19 Φ22 Φ28 Φ34 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89
|
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114 |
