Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Newart |
| Certification: | ISO |
| Model Number: | LBN,LBR |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the Lastest Price |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 7 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per month |
| Product Name: | Concrete Electric Pole | Material: | High Strength Aluminum Alloy |
|---|---|---|---|
| Application: | Assemble And Erect Tower And Pole In Transmission Line Construction | Weight: | 10.5-75KG |
| Safety Factor: | 2.5K | Usage: | Power Transformer |
| Warranty: | 1 Year | Packing: | Wooden Case |
| High Light: | Alloy Electrical Gin Pole,Aluminum Electrical Gin Pole,75KG Concrete Electric Pole |
||

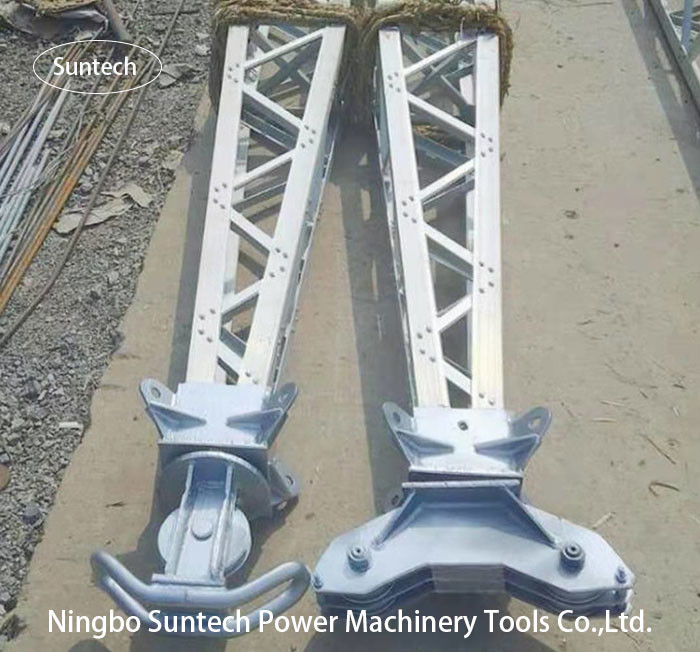

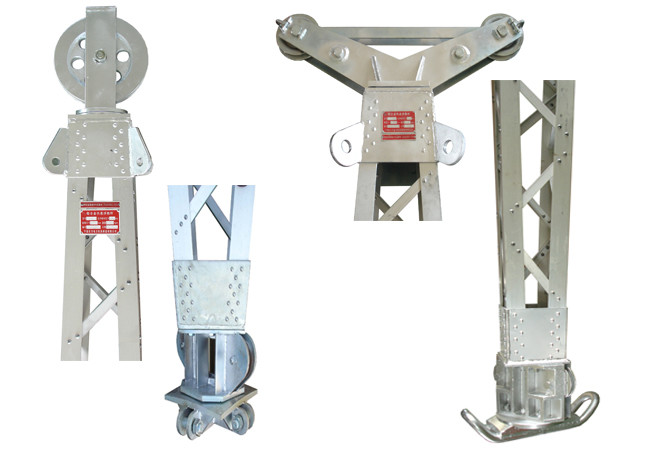

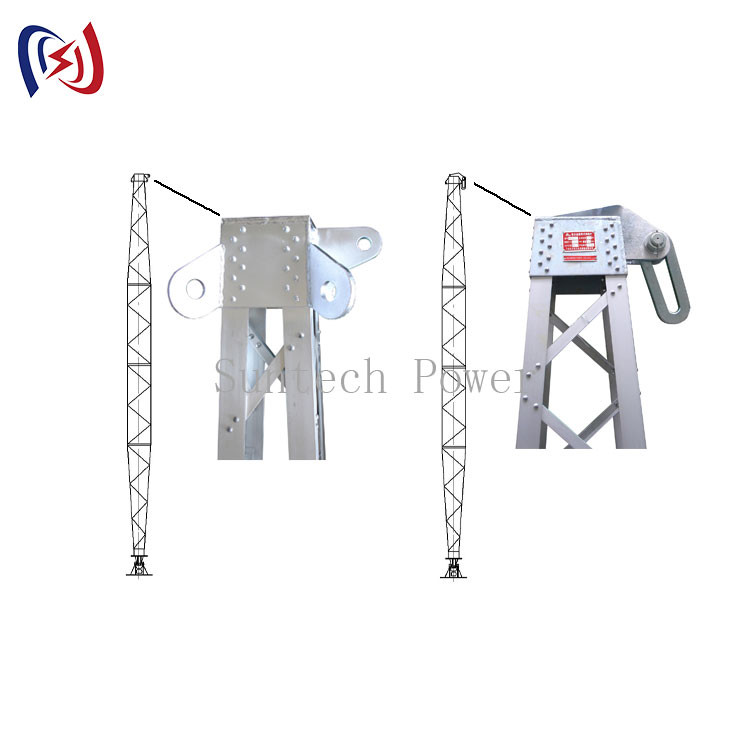

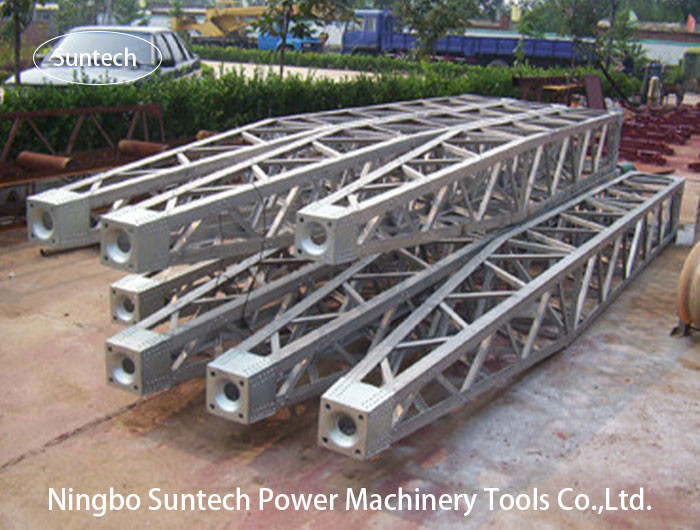

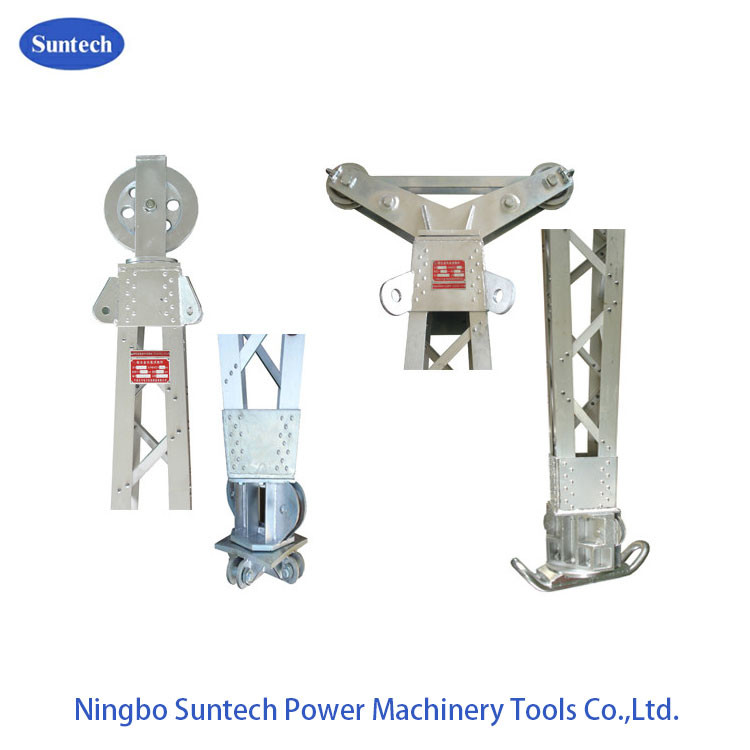

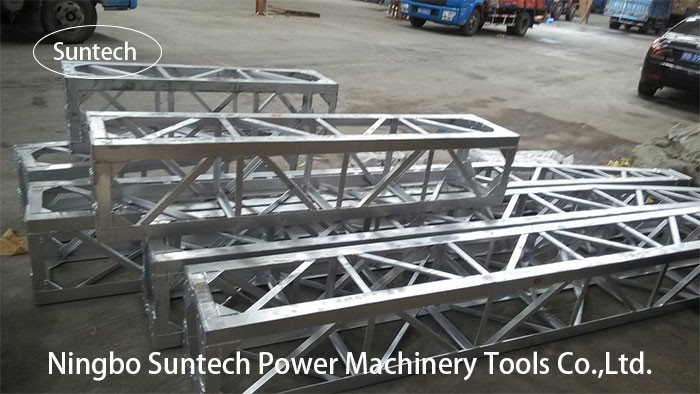

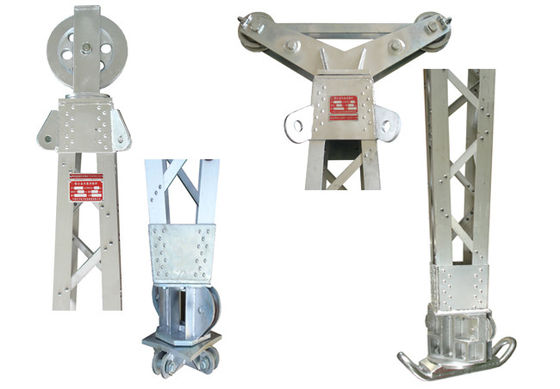

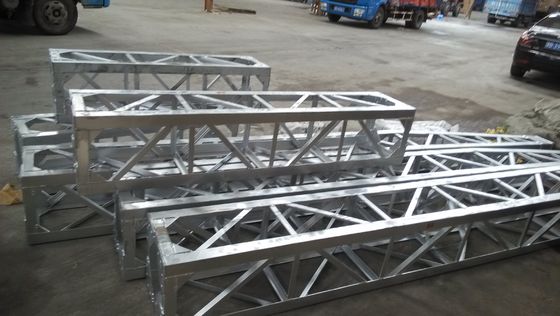

Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Use and Characteristics
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.
The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.
| Item number | Model |
Range (M) |
Section(MM) |
Main part size (MM) |
Accessory size (MM) |
Vertical Load (KN) |
Safety Factor (K)
|
Weight (KG/M) |
| 03131 | LBNX-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 13-38 | 2.5 | 10.5 |
| 03141 | LBNX-300B | 11-18 | 300*300 | 50*50*5 | 30*30*3 | 15-40 | 2.5 | 11.0 |
| 03151 | LBNX-400 | 12-20 | 400*400 | 50*50*5 | 30*30*3 | 14-43 | 2.5 | 14.6 |
| 03511 | LBNX-500A | 12-20 | 500*500 | 60*60*5 | 30*30*3 | 34-75 | 2.5 | 18 |
| 03515 | LBNX-500B | 14-22 | 500*500 | 60*60*5 | 40*40*3 | 2.5 | 20 | |
| 03521 | LBNX-500C | 15-23 | 500*500 | 70*70*6 | 40*40*3 | 42.88 | 2.5 | 21 |
| 03525 | LBNX-500D | 17-25 | 500*500 | 70*70*6 | 50*50*4 | 2.5 | 22 | |
| 03531 | LBNX-600A | 15-23 | 600*600 | 60*60*6 | 40*40*3 | 38.75 | 2.5 | 20 |
| 03535 | LBNX-600B | 17-25 | 600*600 | 70*70*6 | 40*40*3 | 2.5 | 21 | |
| 03541 | LBNX-600C | 17-25 | 600*600 | 70*70*6 | 50*50*4 | 58.119 | 2.5 | 22 |
| 03545 | LBNX-600D | 17-25 | 600*600 | 75*75*6 | 50*50*4 | 2.5 | 24 | |
| 03601 | BNX-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 17-35 | 2.5 | 33 |
| 03602 | BNX-400 | 12-16 | 400*400 | 50*50*5 | 30*30*3 | 29-51 | 2.5 | 43 |
| 03603 | BNX-500 | 16-24 | 500*500 | 63*63*6 | 30*30*3 | 41-93 | 2.5 | 54 |
| 03604 | BNX-600 | 16-32 | 600*600 | 70*70*6 | 40*40*4 | 72-221 | 2.5 | 63 |
| 03605 | BNX-700 | 20-32 | 700*700 | 80*80*6 | 40*40*4 | 115-294 | 2.5 | 75 |
