Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | 12-A |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Container |
Delivery Time: | 10-12days after payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 500sets per month |
Name: | Cable Winch Puller | Engine: | Diesel Drive |
---|---|---|---|
Ground Clearance(MM): | 150 | Wheel-base(MM): | 1040 |
Power(HP): | 15 | Speed(RPM): | 2000 |
High Light: | Walking Tractor Cable Winch Puller,2000RPM Cable Winch Puller,tractor drive Winch Puller |

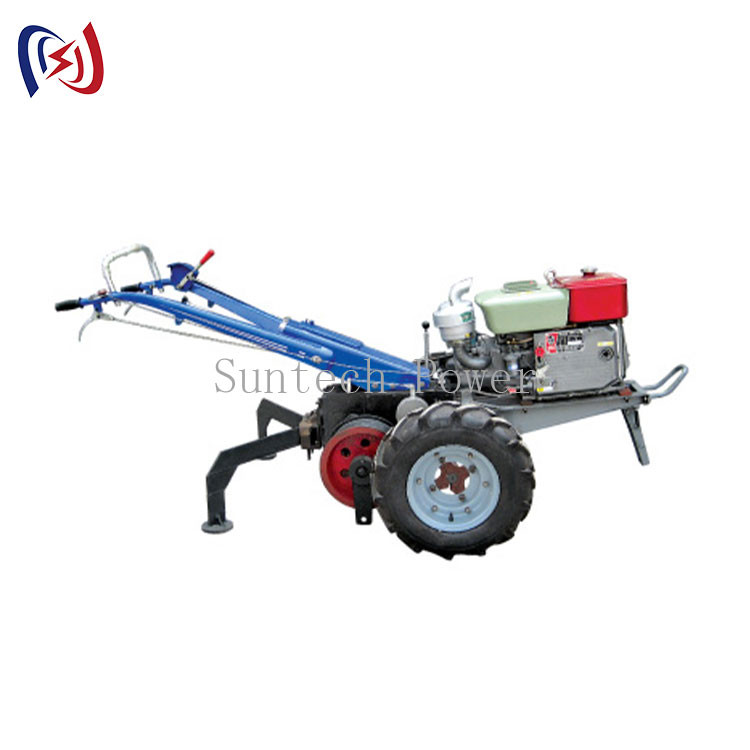

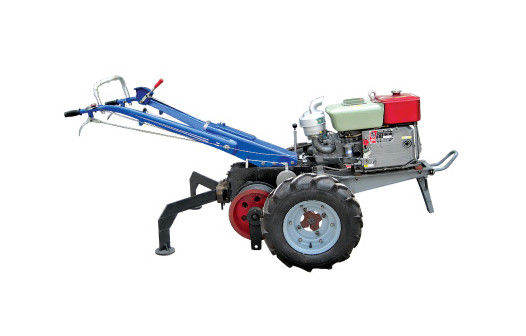

Diesel Engine Cable Wire Pulling Walking Tractor Winch Puller
Features
Four gear,forward gear and reverse gear
Double drum,seven groove,protect the wire rope speedy and convenient
The grinding of walking tractor is reformed from 12 type walking tractor.
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Item number | Model | Ground | wheel-base(MM) | Power(HP) | speed(RPM) | Travel speed(KM/H) | Outline | Weight(KG) |
Clearance(MM) | size(MM) | |||||||
9171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 550 |
9172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 600 |
Gear | Ⅰ | Ⅱ | Ⅲ | IV | reversalⅠ | reversalⅡ | ||
Traction force(T) | 60 | 37 | 20 | 12 | / | / | ||
Traction speed(M/MN) | 11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Contact Person: Peter
Tel: 86-13958364836
