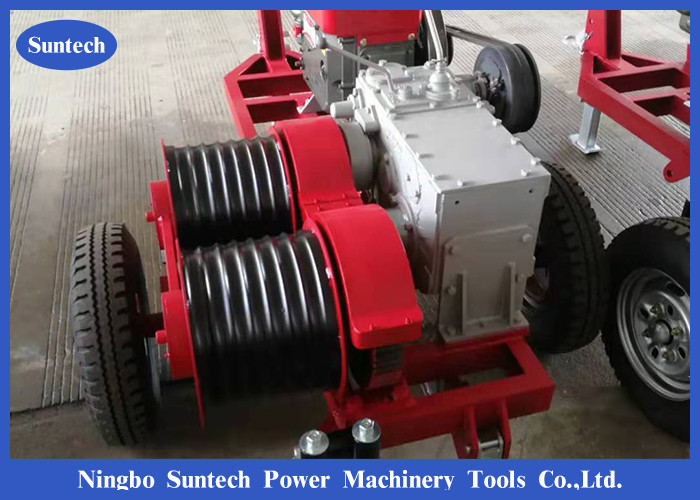

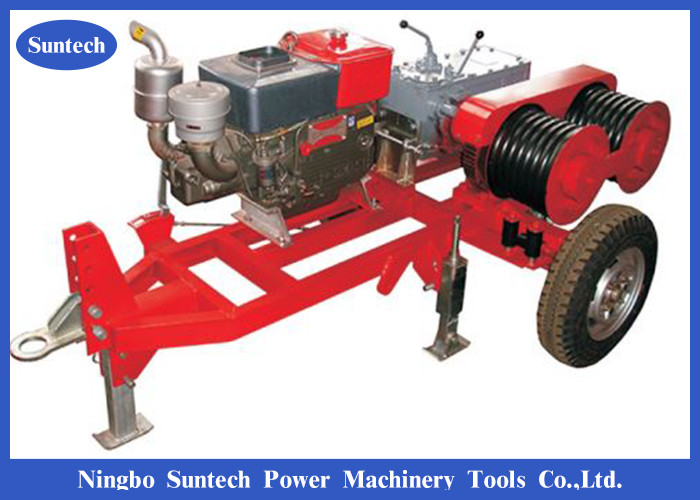

JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller

JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller

  • JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller
  • JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller
JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: 9152
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Exported Plywood Case
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 800 sets per month
Contact Now
Detailed Product Description
Name: Diesel Engine Cable Winch Puller Type: Double Drum
Power: 9 HP Traction Speed: 3600 M/MIN
Moderate Speed: 19.2/11.8 M/MIN Drum Bottom Of Groove Diamete: Φ230
High Light:

9 HP Cable Winch Puller

,

Tower Erection Cable Winch Puller

,

JJCS-50 Winch Puller

Diesel Engine Powered Cable Winch Puller For For Tower Erection 9 HP



Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.



Cable Winch Puller with compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes



Cable Winch Puller Specifications:

Item number 09151 09152 09162
Model JJCS-30 JJQS-30 JJCS-50
Engine Model

R175A

Diesel Engine

GX270

Gasoline Engine

S195G

Diesel Engine

(HP)Power 6 9 9
(RPM)Speed 2600 3600 2000

(KN)

Pull

force/

(M/MIN)

speed

Slow 30/5.7 30/7.43 50/3.1,40/9.6
Moderate 18.9/9.1 19.2/11.8 45/7.1,17/22.3
Fast 7.6/22.7 7.2/31.4 33/11.3,10/35.6
Reverse -/6.5 -/8.4 -/7.35

(MM)

Drum bottom of groove diamete

Φ230 Φ230 Φ300
(MM)outline size 1000x670x600 1000x670x600 2230x1210x1135
(KG)Weight 305 270 700



JJCS-50 Tower Erection Diesel Engine Powered Cable Winch Puller 0



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
