Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | JJCS50 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Plywood Case |
Delivery Time: | 5 workdays |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets per month |
Name: | Cable Winch Trailer | Type: | Diesel Engine Powered |
---|---|---|---|
Power: | 9HP | Traction Speed: | 3600 M/MIN |
Drum Bottom Of Groove Diamete: | Φ230 | ||
High Light: | Hydraulic Diesel Engine Winch,Small 2 Ton Engine Winch,2000RPM Diesel Engine Winch |

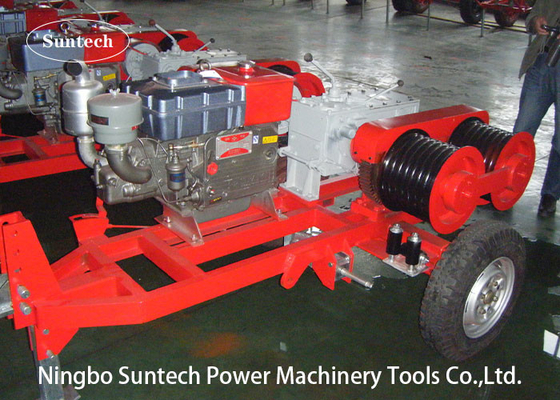

Honda Engine 5 ton Double Capstan Winch Cable Pulling Machine for Power Construction
5 Tons Honda Yamaha Gasoline Engine Double Capstan Drum Winch with Tailer
It is mainly used for power transmission and transformation project (including underground powercable engineering), telecommunications, communications engineering construction tower erection,traction cable, tighten the wire, lifting weights and tools, especially suitable for small batch job in the city.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Honda Gasoline Winch 5T With Two Cable Drums For Wire Rope Pulling
Item number | 09151 | 09152 | 09162 | |
Model | JJCS-30 | JJQS-30 | JJCS-50 | |
Engine | Model |
R175A Diesel Engine |
GX270 Gasoline Engine |
S195G Diesel Engine |
(HP)Power | 6 | 9 | 9 | |
(RPM)Speed | 2600 | 3600 | 2000 | |
(KN) Pull force/ (M/MIN) speed |
Slow | 30/5.7 | 30/7.43 | 50/3.1,40/9.6 |
Moderate | 18.9/9.1 | 19.2/11.8 | 45/7.1,17/22.3 | |
Fast | 7.6/22.7 | 7.2/31.4 | 33/11.3,10/35.6 | |
Reverse | -/6.5 | -/8.4 | -/7.35 | |
(MM) Drum bottom of groove diamete |
Φ230 | Φ230 | Φ300 | |
(MM)outline size | 1000x670x600 | 1000x670x600 | 2230x1210x1135 | |
(KG)Weight | 305 | 270 | 700 |
Application
Honda Gasoline Winch 5T With Two Cable Drums For Wire Rope Pulling is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
