Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJQ-30 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Plywood Case |
| Delivery Time: | 7-9workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Name: | Cable Winch Puller | Power: | 4.04KW |
|---|---|---|---|
| Rotational Speed: | 9RPM | Traction Speed: | 4M/MIN |
| Tractive Force: | 4Ton | Tractive Force: | 3Ton |
| Weight: | 82kg | ||
| High Light: | 4 Ton Cable Winch Puller,6HP Cable Winch Puller,Gasoline Operated Winch Puller |
||
4 Ton 6HP Gasoline Engine Powered Cable Winch Puller For Construction Work
Cable Winch Puller INTENDED USE
Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Cable Winch Puller Specifications:
Uses:suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.

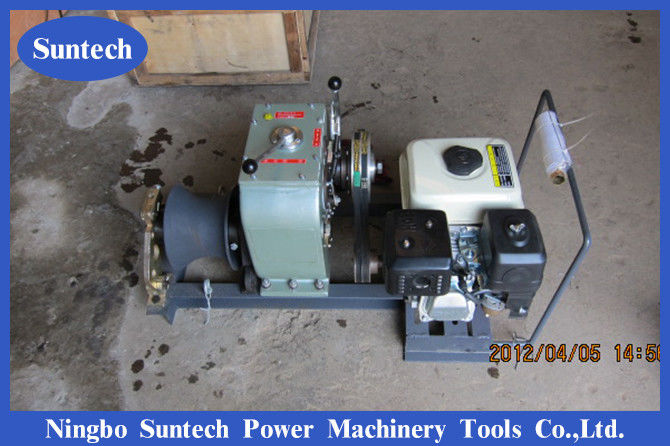

Cable Winch Puller Pictures
| Item number | Model |
Rotation direction |
Gear |
rotational speed () |
Traction speed (m/min) |
Tractive force (T) |
Power (KW) |
Outline size (mm) |
Weight (kg) |
| 09121 |
JJQ-3Q 6HP Gasoline engine |
corotation |
Ⅰ Slow |
9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
|
Ⅱ Fast |
16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A |
JJC-30 170F Diesel engine |
corotation |
Ⅰ Slow |
11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
|
Ⅱ Fast |
21.0 | 9.0 | 1.8 | ||||||
| reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B |
JJD-30 3KW Electromotor |
corotation |
Ⅰ Slow |
8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
|
Ⅱ Fast |
10.5 | 6.5 | 1.8 | ||||||
| reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 |
JJQ-50 9HP Gasoline engine |
corotation |
Ⅰ Slow |
6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
|
Ⅱ Fast |
16.0 | 9.0 | 2.2 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A |
JJC-50 6.6HP Diesel engine |
corotation |
Ⅰ Slow |
8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
|
Ⅱ Fast |
19.0 | 11.0 | 2.3 | ||||||
| reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B |
JJD-50 4KW Electromotor |
corotation |
Ⅰ Slow |
5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
|
Ⅱ Fast |
14.0 | 8.0 | 3.0 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 |
JJQ-80 13HP Gasoline engine |
corotation |
Ⅰ Slow |
5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
|
Ⅱ Fast |
9 | 5 | 4.5 | ||||||
| reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A |
JJC-80 10.5HP Diesel engine |
corotation |
Ⅰ Slow |
7 | 4 | 8 | 7.86 |
1000x750x630 | 230 |
|
Ⅱ Fast |
13 | 7.5 | 4 | ||||||
| reversal | Reverse | 6.5 | 3.7 | No liftin |
