Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | JJM |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the latest price |
Packaging Details: | Exported Plywood Case |
Delivery Time: | 3-5 workdays |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets per month |
Electric Motor: | 3KW Or 4KW | Name: | Cable Pulling Winch |
---|---|---|---|
Application: | Power Construction | Power: | Electric Engine 220V / 380V |
Drive: | Belt Drive | Warranty: | 1 Year At Least |
High Light: | Electric Cable Winch Puller,5 Ton Cable Winch Puller,JJM3-D Winch Puller |

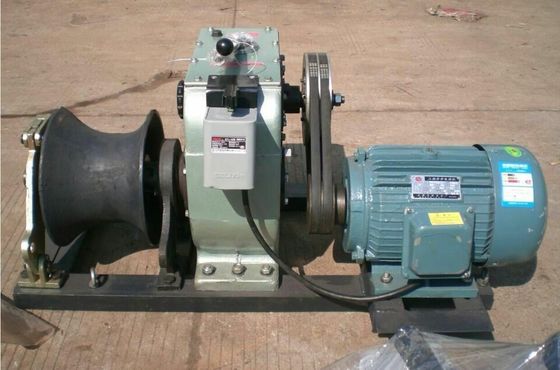

JJM5-D 5 Ton Cable Winch Puller Electric Hoisting Used In Power Transmission
5 tons Cable Pulling Machine Cranes Winch with Electric Engine 220V 380V Pulling Hoisting
Operation methods
1: before turning on the machine,you must turn on the clutch first and put the racker for crosspiece-changing in the zero position
2: when moving the crosspiece,you should be quick.Otherwise the brake won’t work well.when turning on the machine,you shouldn’t work too fiercly
3: when changing the crosspiece position,you must turn on the clutch.Otherwise the gear will be damaged.After that,you should check whether the changing job is well done.Make sure you haven’t changed two crosspieces in one time.
Technical Data JJM5-D Cable Pulling Tools 5 Ton Electric Wire Rope Cable Winch Puller
Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(Ton) |
JJM5-D | Electric Engine | Slow | 5 | 5 |
Quick | 9 | 3 | ||
Reverse | 3 | No lifting |
It is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure construction safety.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
5 Ton Electric Engine Powered Hoist Winch for Power Construction Application
5 Ton Electric Engine Powered Hoist Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
