Place of Origin: | Ningbo |
Brand Name: | Suntech |
Certification: | CE and ISO 9001 |
Model Number: | SJZ |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Containers or Exported Wooden Cases |
Delivery Time: | 7 days oncepayment got |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 300pcs/month |
Name: | Cable Pulling Winch | Model Number: | SJZ |
---|---|---|---|
Power Source: | Gasoline Power Or Diesel Power, Diesel Gasoline | Application: | Power Construction |
Capacity: | 16KN,30KN,50KN | Type: | Belt Drive Winch |
High Light: | 30KN Wire Take Up Machine,5Ton Wire Take Up Machine,30KN Cable Pulling Winch |

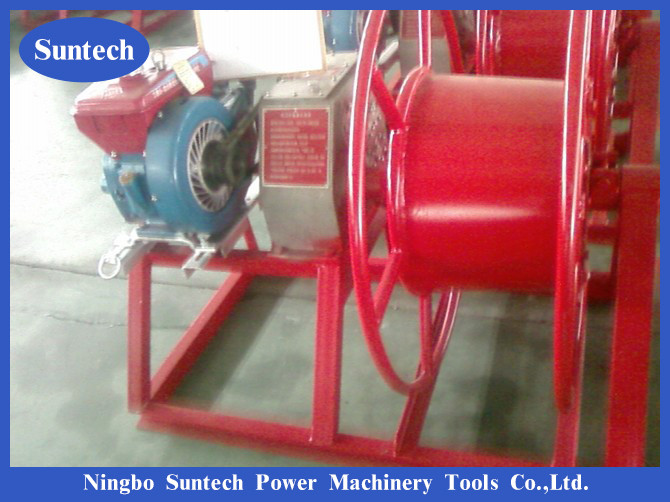

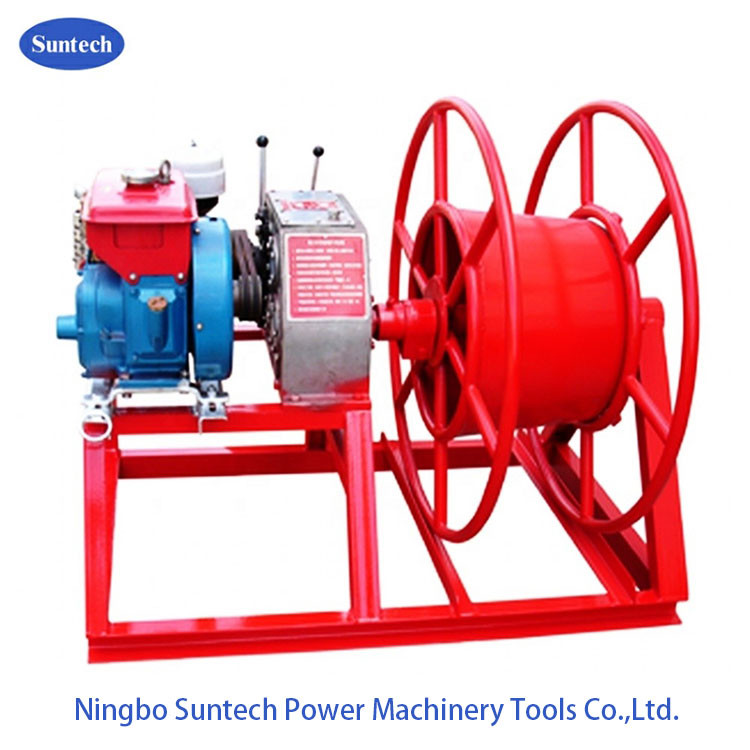

5 Ton Belt Drive Recovery Wire Take-Up Cable Winch Puller Machine
Uses:To withdraw the old conductors or erectthe overhead earth wires.
1. This wire Take-up machine is used to withdraw the old conductor or erect the overhead earth wires, and the outer side of the
drum it is detachable.
2. To the Specofocations, we can refit it accordling per your demands, so the table data it is just for your reference.
3. The engine has the gasoline and diesel type
4. The drum size, as it is easy changable, means if your tell us your demands on it, we also can make the drum suitable to you.
Item number | Model | Rated Load | Pulling Speed(m/min) | Motor Power | Weight |
8151 | SJZ-10B | 13 | 10-80 | Gasoline engine | 180 |
8152 | SJZ-10C | 13 | 10-80 | Diesel engine | 210 |
08151A | SFJ-30 | 30 | 13.3-24.3 | Gasoline engine | 160 |
08152A | SFJ-30C | 30 | 13.3-24.3 | Diesel engine | 180 |
8153 | SFJ-50 | 50 | 7.5-14 | Gasoline engine | 180 |
8154 | SFJ-50C | 50 | 7.5-14 | Diesel engine | 200 |
