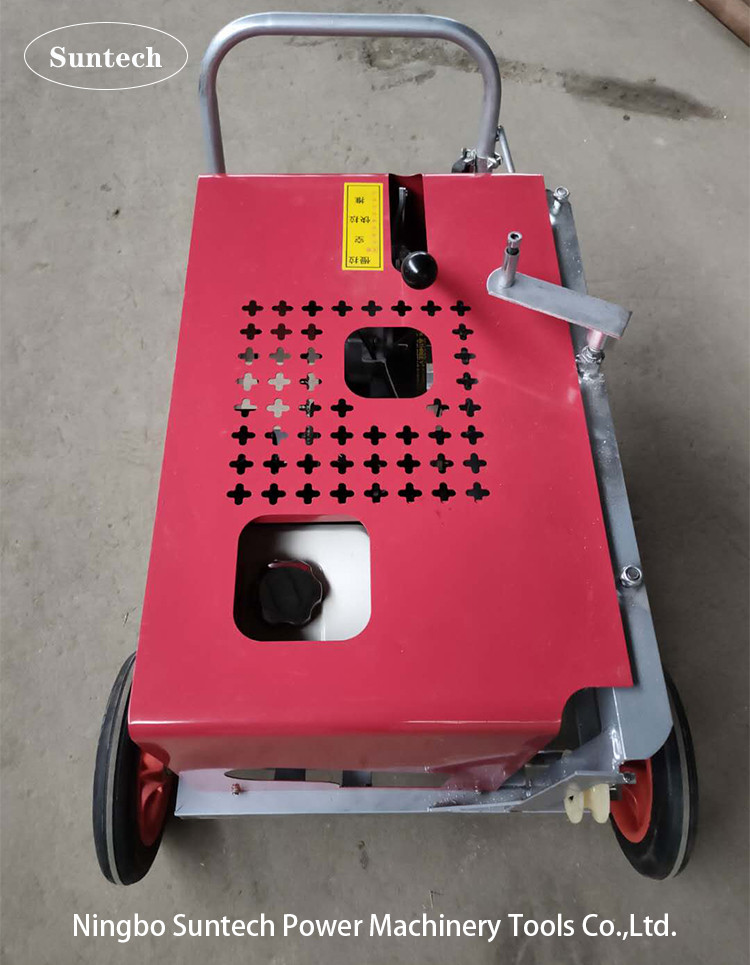

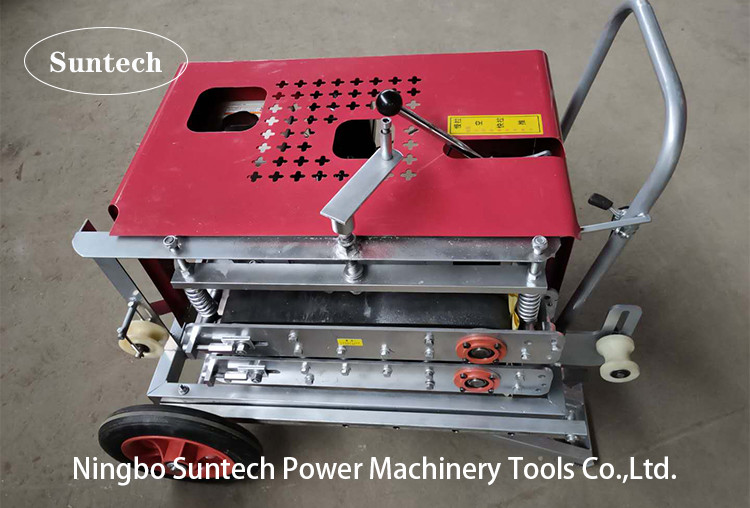

Electronic Optical Cable Tractor Fiber Gasoline Engine Optic Cable Pulling Equipment
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Optic Cable Pulling Equipment used for the construction of fiber optic cable pipelines. It can adapt to the propulsion and recovery of 5-45 optical cables or cable cables. The speed of advancement is 30-50 meters per minute and the length of propulsion can reach 500 meters.The cable is laid and laid, which can adapt to the deployment and recycling of all optical cables. Pulling speed per minute is 30-70 meters.
| Traction | >3KN |
| Traction speed | 50-60 meters / minute |
| Diameter range | 5mm-45mm |
| Applicable cable | Cable/steel wire/cable |
| Gas tank capacity | 4 liters |
| Total equipment power | 3.7 KW |
| Machine size | 800mm*600mm*800mm |
| Machine weight | 56kg |
