Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | SA-YQ30 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get lastest price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 5-8days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 150pcs per month |
| Item: | 07001 | Max Tension: | 30KN |
|---|---|---|---|
| Usage: | Cable Puller Tensioner | Dimensions: | 3200X1600X2000mm |
| Weight: | 1500KG | Continuous Tension: | 30KN |
| Bottom Of Groove Diameter: | 300 | Engine Power/Speed: | 31/2200 |
| High Light: | 30KN Cable Puller Tensioner,30KN Hydraulic Puller Tensioner,220KV Transmission Line Tensioner |
||

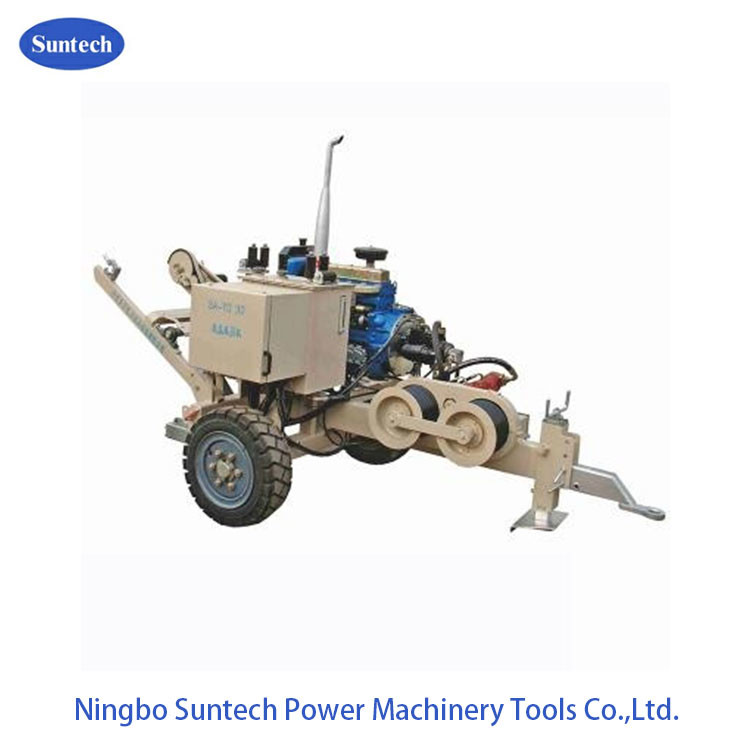

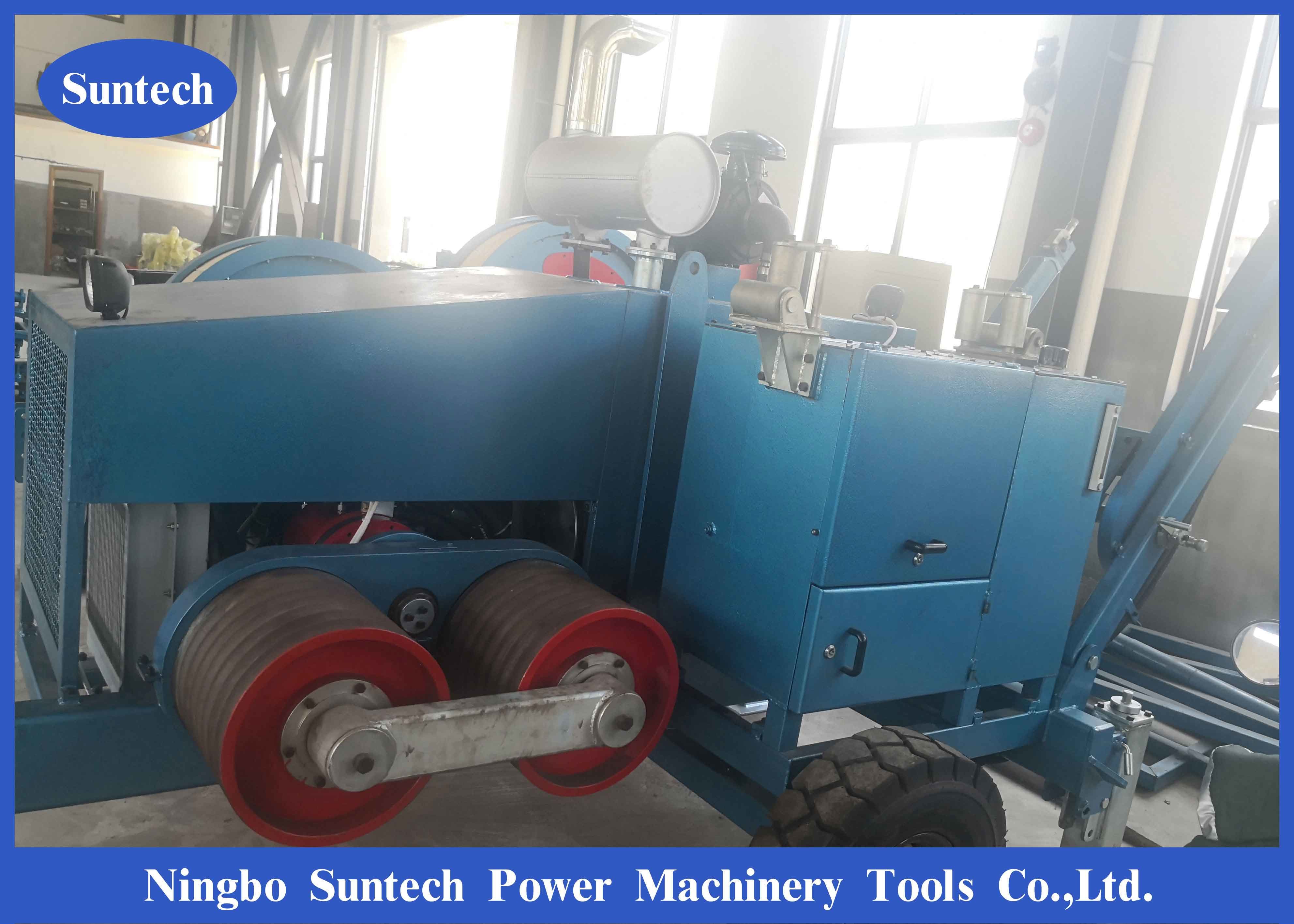

30kn Transmission line Stringing Equipment , Hydraulic Cable Puller
Main component
1. Chinese famous diesel engine.
2. Main pump:SAUER –SUNDSTRAND pump .main motor : SAI techniques product .
3. Radiator:AKG
4. Hydraulic instrument:
5. Mating with model GSP950 drum (order number :07125A).
Technical Data
| Maximum linepull (kN) | 30 |
| Continuous linepull (kN | 25 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ300 |
| Bullwheel grooves number | 7 |
| Maximum suitable steelrope diameter (mm) | Φ13 |
| Maximum through connector diameter (mm) | Φ40 |
| Engine power /speed (kW/rpm) | 31/2200 |
| Dimensions (mm) | 3200×1600×2000 |
| Weight (kg) | 1500 |
Characteristic
1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.
2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.
3. Maximum traction force can be preset, automatic overload protection.
4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.
5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.
6. Trailer type structure,rigid scaffold,attractive appearance.
