Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | SA-YQ40 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get lastest price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 5-8days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100sets per month |
| Item: | 07011 | Max Tension: | 40KN |
|---|---|---|---|
| Usage: | Hydraulic Cable Puller | Dimensions: | 3500X2000X2300mm |
| Weight: | 2500kg | Continuous Tension: | 40KN |
| Bottom Of Groove Diameter: | 400 | Engine Power/Speed: | 60/2000 |
| High Light: | SA-YQ40 power line tensioner,40KN hydraulic cable tensioner,Hydraulic Bull Wheel Tensioner |
||

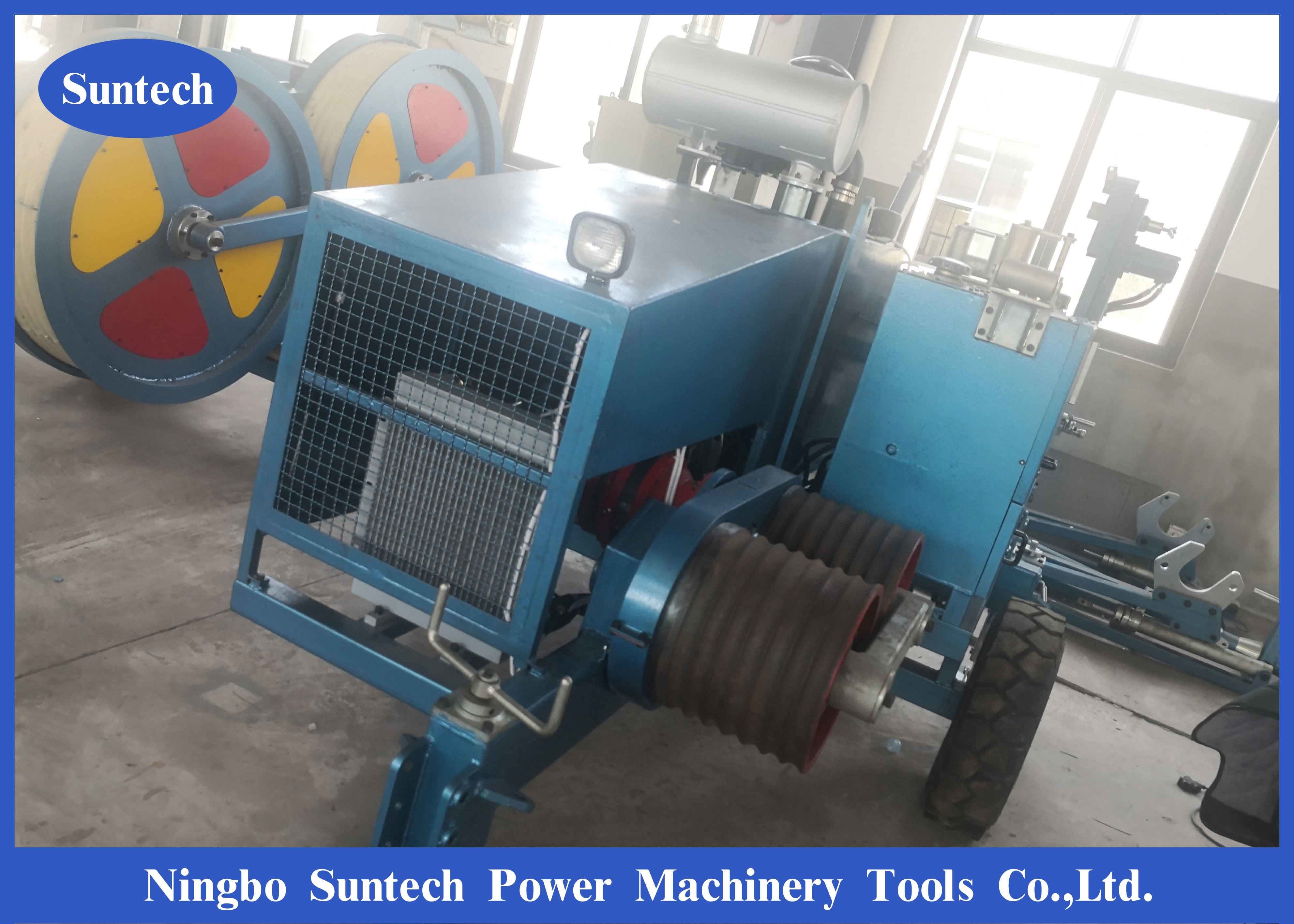

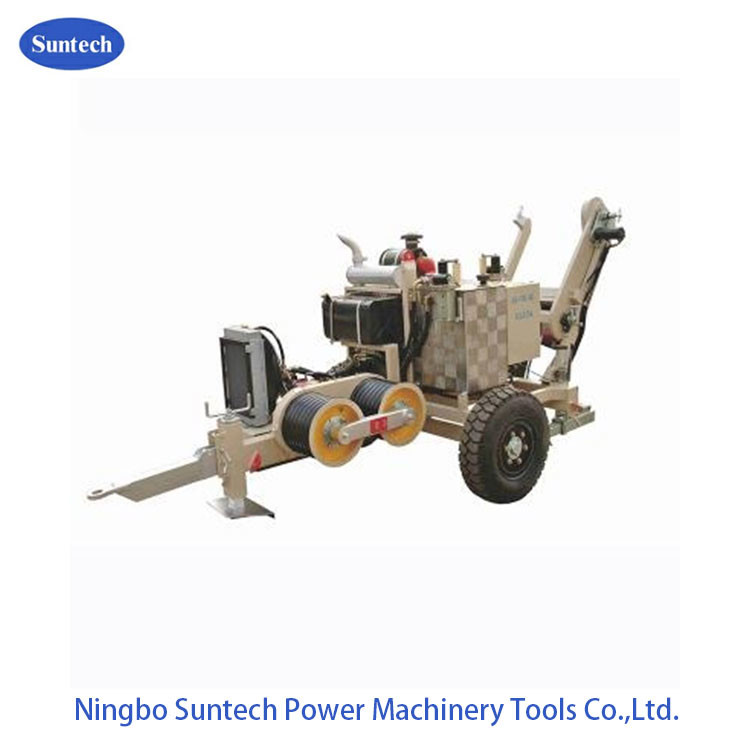

SA-YQ40 Overhead Transmission Line Stringing Equipment , Hydraulic Puller Machine
This Hydraulic Puller is suitable for the tension stringing operation of various steel wire ropes, conductors, and earth wires. Its bullwheel is lined with the abrasion resistant MC nylon material, and the groove spacing is ultra wide. Additionally, this product can achieve the constant-tension conductor stringing, due to the infinitely variable tension control.
In case of hydraulic failure, the spring applied hydraulically released multi-plate brake can work automatically, thus ensuring the safe operation. Our YQ40 Hydraulic Puller is also equipped with the hydraulic-power output interface, which is used to connect the shaft bracket of hydraulic wire.
Technical Data
| Maximum linepull (kN) | 40 |
| Continuous linepull (kN) | 35 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | 400 |
| Bullwheel grooves number | 7 |
| Maximum suitable steelrope diameter (mm) | 16 |
| Maximum through connector diameter (mm) | 50 |
| Engine power /speed (kW/rpm) | 60/2000 |
| Dimensions (mm) | 3500X2000X2300 |
| Weight (kg) | 2500 |
Feature
Bullwheel with wearproof MC nylon lining segment
closed hydraulic circuit and bi-directional variant plunger pump .infinitely variable linepull/tension control
Rexroth pump and motor, Italian RR reducer ,model C attached reel winder .
Spring applied hydraulic released brake, overpull protection is on the safe side and easy operation.
there is a hydraulic circuit for drive ,matching DW2240 A reel stand .
Main component
1. Main hydraulic valve :Rexroth .
2. Radiator :AKG
3. Hydraulic instrument :
4. Mating GSP1200 reel of C type versatile hydraulic puller /tensioner needs order additionally .(order number :07125 C)
