Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SA-YQ300 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get lastest price |
Packaging Details: | Exported Containers |
Delivery Time: | 7-10 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100pcs per month |
Product Name: | Pulling Machine | Item: | 07071 |
---|---|---|---|
Max Tension: | 300KN | Usage: | Overhead Transmission Line |
Dimensions: | 5.9x2.5x2.9m | Continuous Tension: | 250kn |
Bottom Of Groove Diameter: | 960 | Engine Power/Speed: | 298/2100 |
High Light: | 30 Ton hydraulic cable tensioner,Overhead Line Hydraulic Puller Tensioner,300KN Hydraulic Puller Tensioner |

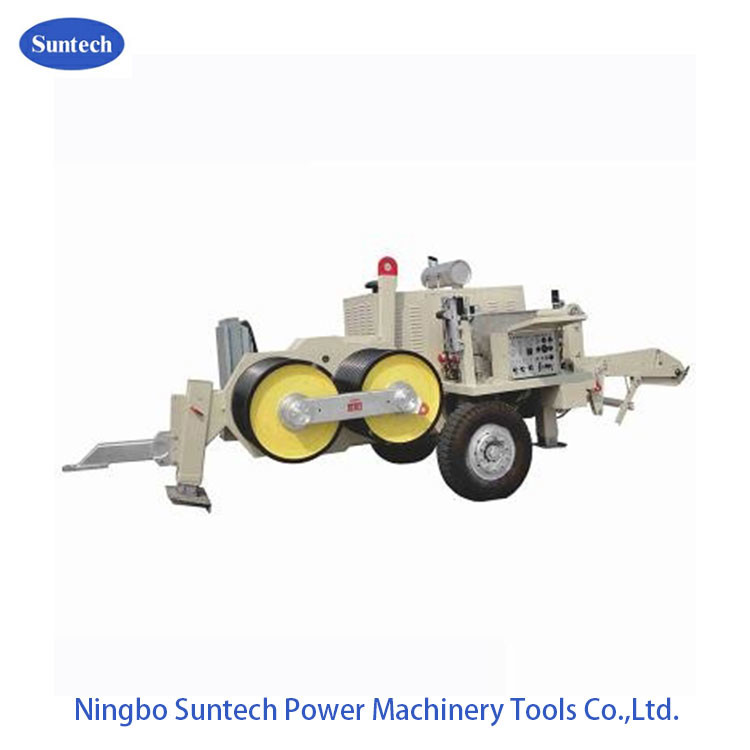

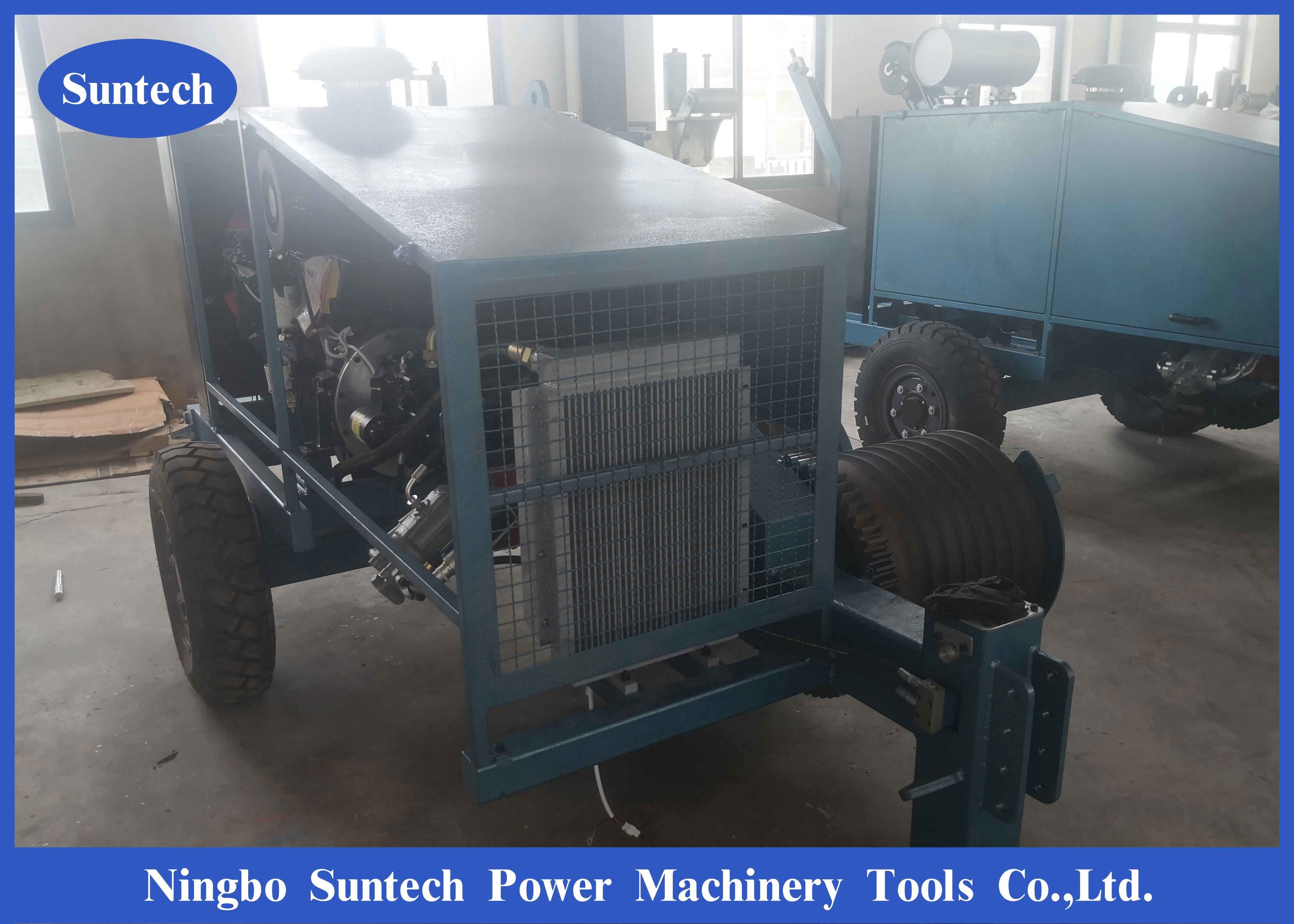

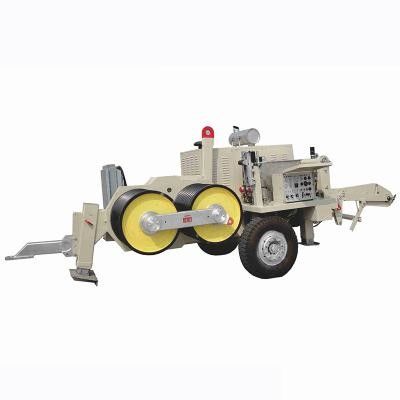

Overhead Line 300KN Wire Puller Machiner , Hydraulic Pulling And Mounting Machine
Configuration
Traction force,traction speed stepless adjustable,intuitive display;
Maximum traction can be preset,overload automatic protection;
Automatic braking without pressure,to ensure the operation safety when the engine
suddenly flameout or other reasons causing the system to lose pressure;
With wire rope automatic winding device,automatic rope laying,loading and unloading
convenience.
Item number | 07001 | 07011 | 07031 | 07041 | 07051 | 07061 | 07065 | 07071 | 07075 | |
Model | YQ-30Y | YQ-40Y | YQ-60Y | YQ-90Y | YQ-180Y | YQ-220Y | YQ-250Y | YQ-300Y | YQ-420Y | |
Maximum pull forc (KN) |
30 | 40 | 60 | 90 | 180 | 220 | 250 | 300 | 420 | |
Continuous pull forc (KN) |
25 | 35 | 50 | 80 | 150 | 180 | 200 | 250 | 350 | |
Maximum pull force (KM/H) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
Bottom of groovr diamere (MM) |
Φ300 | Φ400 | Φ460 | Φ520 | Φ630 | Φ760 | Φ820 | Φ960 | Φ960 | |
Number of groovr (MM) |
7 | 7 | 7 | 7 | 9 | 10 | 10 | 10 | 11 | |
Maximum suitable stell rope diamete (MM) |
Φ13 | Φ16 | Φ18 | Φ20 | Φ24 | Φ30 | Φ32 | Φ38 | Φ45 | |
Maximum through connectors diamete (MM) |
Φ40 | Φ50 | Φ60 | Φ60 | Φ63 | Φ75 | Φ80 | Φ80 | Φ80 | |
Engine power/speed (KW/RPM) |
31/ 2200 |
60/ 2000 |
77/ 2800 |
123/ 2500 |
209/ 2100 |
243/ 2100 |
261/ 2100 |
298/ 2100 |
402/ 2100 |
|
Dimensions (M) |
3.2 x1.6x2 |
3.5 x2x2 |
3.8 x2.1x2.3 |
3.5 x2.1x2.5 |
5.5 x2.2x2.6 |
5.7 x2.3x2.6 |
5.8 x2.4x2.6 |
5.9 x2.5x2.9 |
6.1 x2.6x2.8 |
|
Weight (KG) |
1500 | `2500 | 3000 | 4300 | 7500 | 8000 | 9000 | 11500 | 14800 | |
matching wire rope tray | Mode |
GSP 950 |
GSP 1400 |
GSP 1400 |
GSP 1400 |
GSP 1600 |
GSP 1600 |
GSP 1600 |
GSP 1900 |
GSP 1900 |
Item No. | 07125A | 07125C | 07125C | 07125C | 07125D | 07125D | 07125D | 07125E | 07125E |
