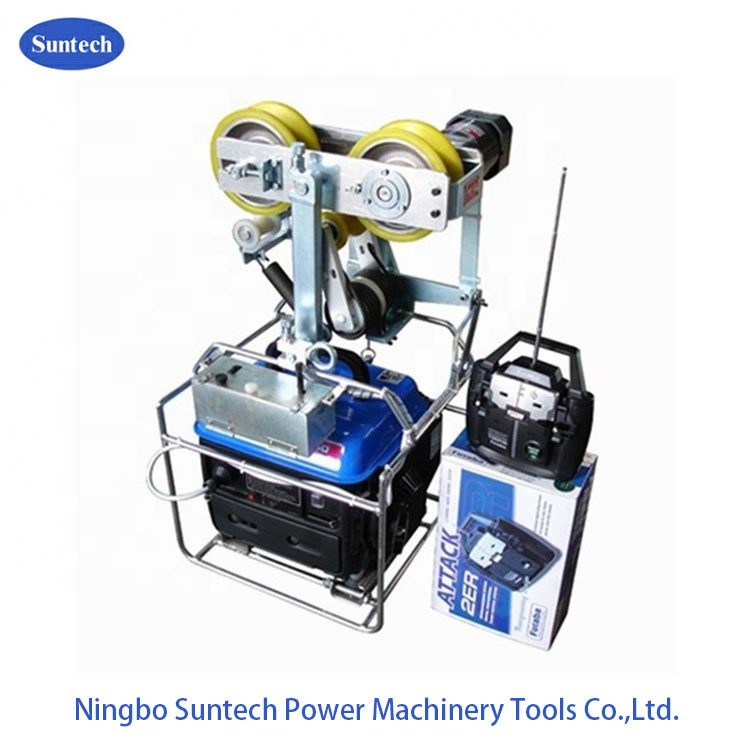

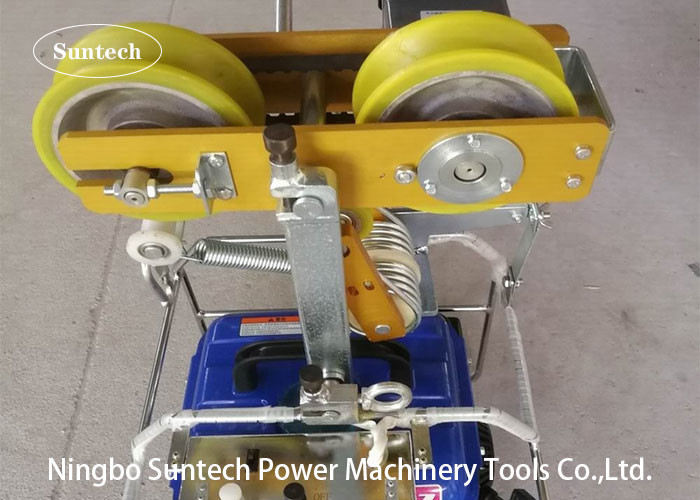

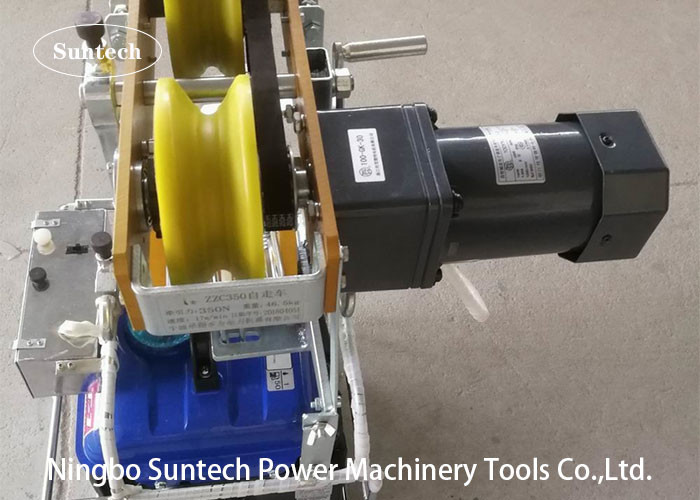

ZZC350 Self Moving Traction Machine 350N OPGW Optical Fiber Stringing Tools
This ZZC350 type self-moving traction machine can be used to spread the optical power ground wire abbreviated as OPGW.
Also, it is able to replace the old conductor.
Use gasoline, Remote control operation, Use to spread OPGW,replace old conductor.
Item No. | 20121 |
Model | ZZC350 |
Block passed diameterrange(mm) | φ9~φ13 |
Maximum creepingangle(°) | 31 |
Gasoline Engine | YAMAHAET 950/650W |
Driving dynamo type | 100YYJ140-3(140W) |
Remote controllinear distance (m) | 300~500 |
Dimension(mm) | 422×480×758 |
Running speed(m/min) | 17 |
Horizontal pull(N) | 350 |
Weight(kg) | 46.5 |
