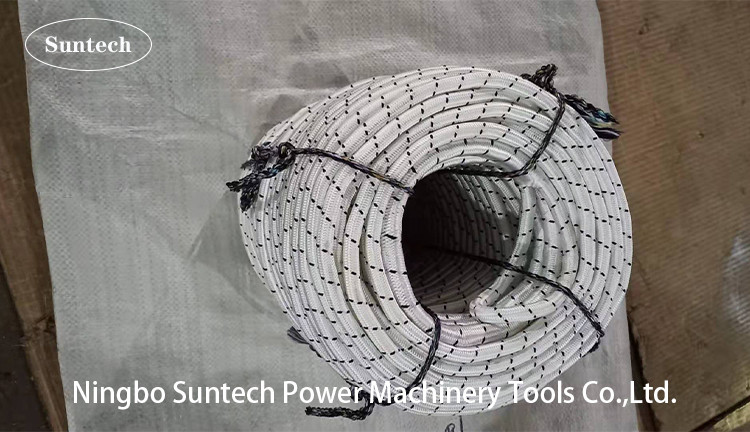

High Strength Double Braided Pulling Stringing Insulated Silk Nylon Rope
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
Application
For power transmission line conductor stringing
The specification and length of steel can custom according to your request
Feature:
Pack it in rolls or according to your needs
| Item number | Diameter | Linear density (g/m) | After Diameter (mm) | After Linear density (g/m) | Break force (kN) |
| (mm) | |||||
| 18170A | 2 | 2.31 | 3 | 3.2 | 4.3 |
| 18170B | 3 | 4.65 | 4.5 | 7.3 | 8.5 |
| 18170C | 3.5 | 6.78 | 5 | 9.5 | 11.4 |
| 18170D | 4 | 9.31 | 5.5 | 13 | 16.6 |
| 18170E | 4.5 | 11.3 | 6 | 16 | 19 |
| 18170F | 5 | 14 | 7 | 20 | 24.4 |
| 18170G | 6 | 20 | 8 | 28.2 | 31.9 |
| 18170H | 7 | 27 | 9 | 36 | 43.6 |
| 18170J | 8 | 35 | 10 | 48.4 | 58.8 |
| 18170K | 9 | 42 | 11 | 58.5 | 70.3 |
| 18170L | 10 | 56 | 12 | 77 | 92.5 |
| 18170M | 11 | 70 | 13 | 97 | 115 |
| 18170N | 12 | 84 | 14 | 113.4 | 137 |
| 18170P | 13 | 98 | 15 | 132 | 159 |
| 18170Q | 14 | 106 | 16 | 150 | 180 |
| 18170R | 16 | 132 | 18 | 177 | 211 |
| 18170S | 18 | 186 | 21 | 247.3 | 296 |
