Place of Origin: | Zhejiang,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Anti Twist Braid Rope |
Minimum Order Quantity: | 100m |
---|---|
Price: | Negotiable |
Packaging Details: | Drums and containers |
Delivery Time: | 7-10workdays |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 30000m per month |
Steel Grade: | Steel | Type: | Galvanised |
---|---|---|---|
Application: | Power Construction | Alloy Or Not: | Non-alloy |
Product Name: | Anti Twisting Braided Steel Wire Rope | Feature: | High Strength |
High Light: | BW2000 Anti Twist Wire Rope,12 Strand Anti Twist Wire Rope,Anti Twisting Braided Wire Rope |

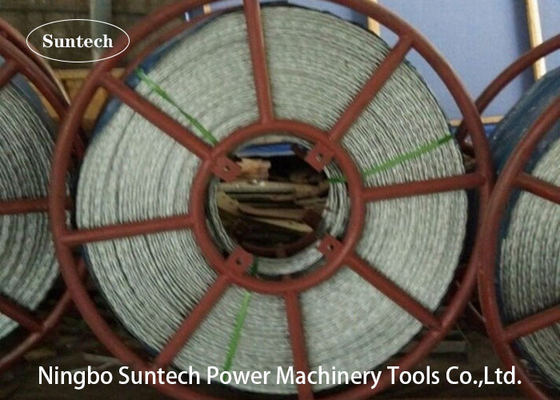

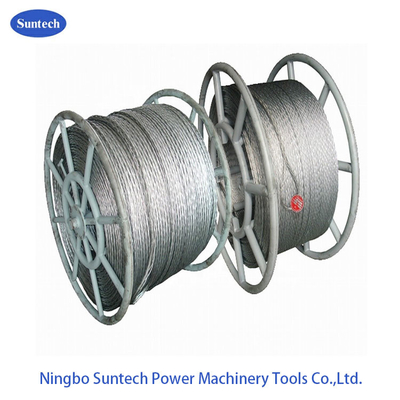

Hexagon Galvanized Cable Pulling Device Anti Twisted Pilot Wire Rope With 6 Squares
Anti-Twisting Steel Wire Rope,Non-Rotation Steel Wire Rope,Anti-Torsion Braided Wire Rope,Pilot Wire,Pilot Rope,Anti-Twist Pilot Wire,Anti-Twisting Steel Wire,Anti-Twist Rope.
Steel Wire Reel and Stand is also called cable reel cradle,drum cradle or reel stand.It is made of high strength steel tube and welded together.It has different models and different outside diameter of reel, with compact size,reasonable weight and long durability,which is easy to use and operate.
Application
Applied to mechanical pulling and tensioning release conductors, unsuitable to pulling ropes for small diameter winch.It is braided 1960MPa high-strength galvanized steel wire.Rotation resistance during pulling. Supple and disperse resistance.
The specification and length of steel can custom according to your request
Made of high strength galvanized steel wire.It doesn't turn when it's turn round.Soft not broken strand.
Used to roll or pay off anti-twisting steel wire rope.
Item number | Structure | Diameter | Breaking Force | Weight |
18117 | 12 Strand | 9 | ≥54 | 0.3 |
18118 | 11 | ≥81 | 0.45 | |
18119 | 13 | ≥115 | 0.58 | |
18120 | 15 | ≥157 | 0.82 | |
18121 | 18 | ≥205 | 1.03 | |
18122 | 20 | ≥260 | 1.33 | |
18123 | 23 | ≥320 | 1.63 | |
18124 | 25 | ≥387 | 2.03 | |
18125 | 27 | ≥461 | 2.37 | |
18126 | 28 | ≥520 | 2.6 | |
18127 | 30 | ≥560 | 3.12 | |
18140 | 21 | ≥173 | 0.87 | |
18141 | 18 Strand | 24 | ≥236 | 1.24 |
18151 | 27 | ≥309 | 1.55 | |
18152 | 30 | ≥389 | 1.99 | |
18153 | 33 | ≥481 | 2.45 | |
18154 | 36 | ≥581 | 3.05 | |
18155 | 39 | ≥692 | 3.56 | |
18156 | 42 | ≥817 | 4.22 |
