Features

Specifications

Product Name: Cable Mesh Socks Joint

Item: 21361-21370

Usage: Connect, Power Construction

Rated Load: 8-50KN

Size: 12-280mm

Application: Power Line Construction

Highlight:

Power Line Conductor Mesh Joints

280mm Conductor Mesh Joints

50KN Power Line Mesh Joints

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Newart

Certification: ISO

Model Number: SWL

Payment & Shipping Terms

Packaging Details: Exported Box and carton

Delivery Time: 5-7 workdays

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200pcs per month

Gallery

280mm 50KN Power Line Conductor Mesh Joints

Product Description

Wire Laying Construction Steel Cable Socks Wire Rope Pulling Cable Grips Protection Conductor Cable Mesh Socks Joint


Feature
1. As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench.
2. The most ideal tool for electric power construction. Applicatoin Apply to installing electrcity cable communication cable and normal cable.

Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward. The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction. After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.

Technical Data


			Item number
			Model
			Applicable
Cable Diameter
(mm)

			Rated Load
(KN)

			Weight
(kg)



			21361
			SWL-16
			Φ12-16
			10
			0.8


			21362
			SWL-20
			Φ16-20
			10
			0.8


			21363
			SWL-25
			Φ20-25
			15
			1.0


			21364
			SWL-37
			Φ25-37
			15
			1.0


			21365
			SWL-50
			Φ37-50
			15
			1.0


			21366`
			SWL-60
			Φ50-60
			25
			2.4


			21367
			SWL-80
			Φ60-80
			25
			2.4


			21368
			SWL-100
			Φ80-100
			25
			2.4


			21369
			SWL-120
			Φ100-120
			30
			2.6


			21370
			SWL-150
			Φ120-150
			30
			2.6

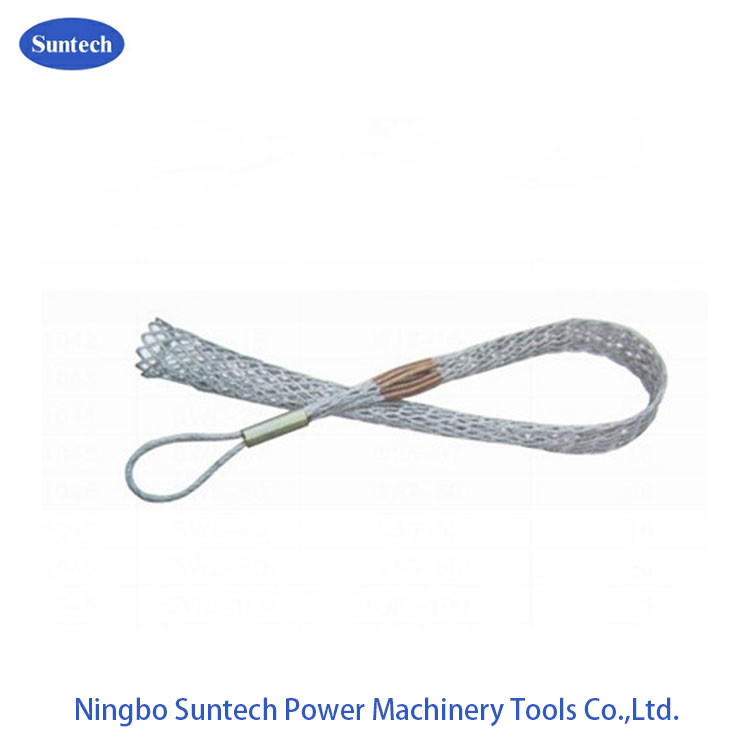

280mm 50KN Power Line Conductor Mesh Joints 0

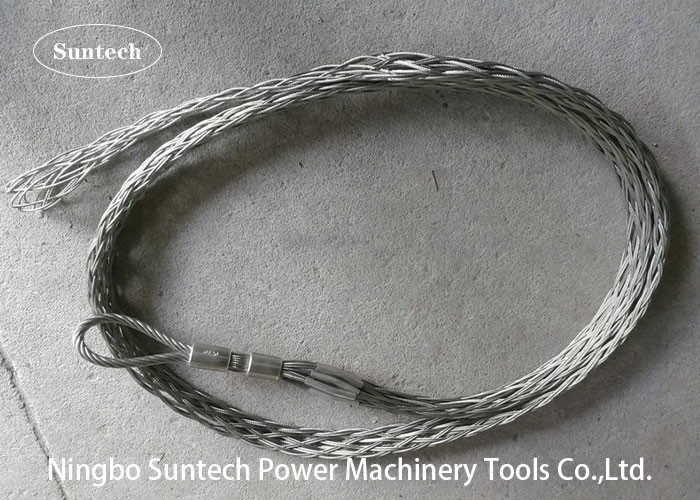

280mm 50KN Power Line Conductor Mesh Joints 1

280mm 50KN Power Line Conductor Mesh Joints 2

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
