3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools

3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools

  • 3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools
  • 3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools
3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools
Product Details:
Place of Origin: Ningbo,Zhejiang,China
Brand Name: Newart
Certification: ISO,CE
Model Number: 3T-9T
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Pallets and Cartons
Delivery Time: 7-10 days after deposit
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Chain Type Handle Hoist Tackle Block Rated Load: 5-90KN
Type: Chain Hoist Feature: Safety Factor More Than Three Times
Weight: 4.2-47kg Warranty: At Least One Year
High Light:

90KN Chain Pulley Block

,

90KN pulley tackle and hoists

,

3Ton Chain Pulley Block

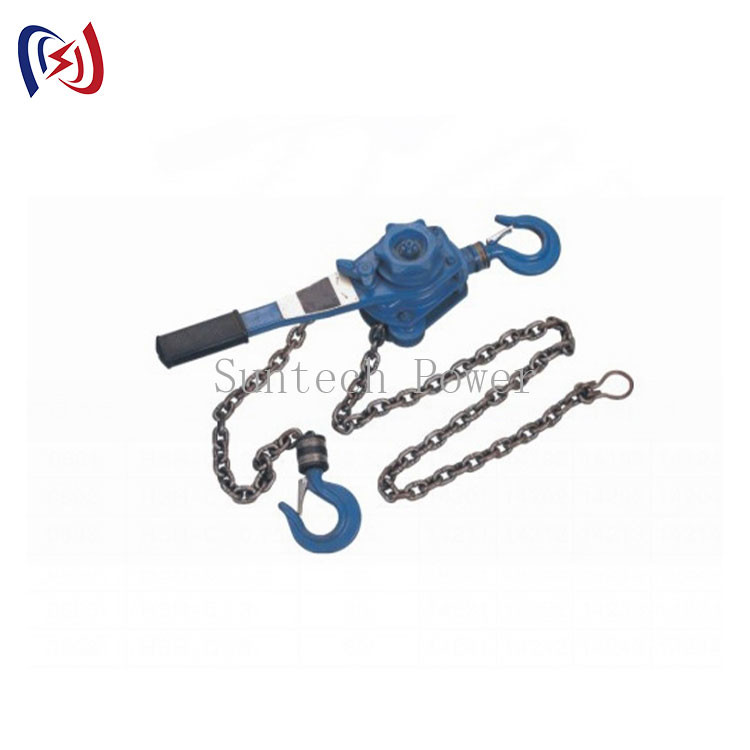

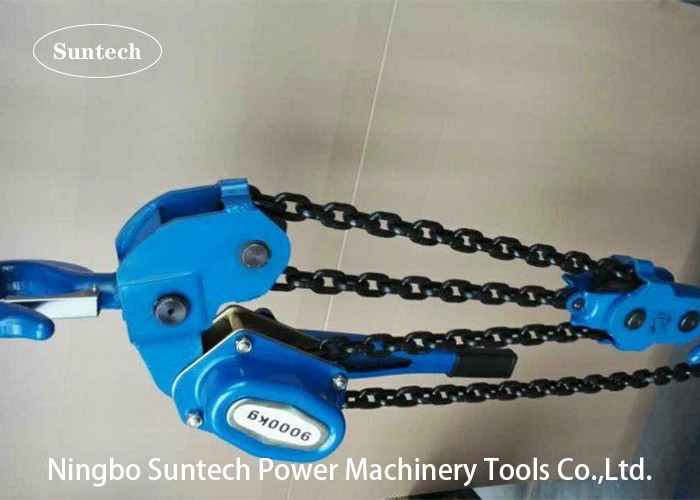

Chain Type Handle Hoist Tackle Block , Chain Pulley Block 3 Ton Hoist Crane



Feature

Great Quality manual hand series lifting chain hoist block is light weight, suitable for simple manual operation and has a strong safety performance and high safety of the product performance, easy to use security; specifically designed for heavy industry, 360 ° rotating hand chain guide allowed operation from all angles, so that the operator can stay away from the danger zone.

Applicatoin
Apply to lifting machine parts, tightening steel stranded wire and aluminum stranded wire, etc in the construction.

Specificaitons



Item number 14201 14211 14215 14221 14231

14241



14245
Rated load(KN) 5 7.5 10 15 30 60 90
Minimum distance between hooks(MM) 260 320 380 380 480 620 700
Standard Lifting Height(M) 1.5
Number of lines of Lifting Chain(row) 1 1 1 1 1 2 3
Weight(KG) 4.2 7.5 11.5 11.5 21 31.5 47
Item No. 3m Length Of Chain 14202 14212 14216 14222 14232 14242 14246
5m Length Of Chain 14204 14214 14218 14224 14234 14244 14248

Weight of 1m chain(KG) 0.52 0.8 1.4 1.4 2.2 4.4 6.6



3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools 0

3 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools 13 Ton 90KN Chain Pulley Block Transmission Line Stringing Tools 2
