Name: Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SKGF-2
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Anti Twist Steel Rope Gripper

Usage: Wire Rope Gripping

Material: Steel

Type: Bolt Type

Warranty: One Year

Capacity: 20-100kn

Highlight:

60KN Wire Rope Gripper

SKGF-6 Wire Rope Gripper

Aluminium Wire Rope Gripper

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO9001

Model Number: SKGF-2

Payment & Shipping Terms

Packaging Details: Exported Wooden Cases Or Containers

Delivery Time: 7days after payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pcs per month

Gallery

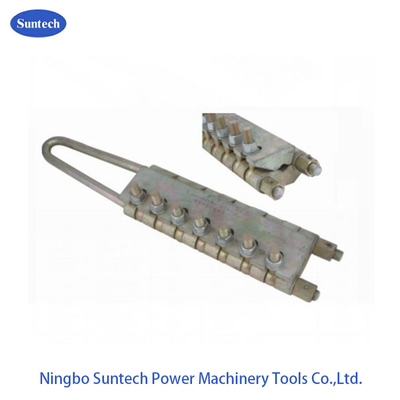

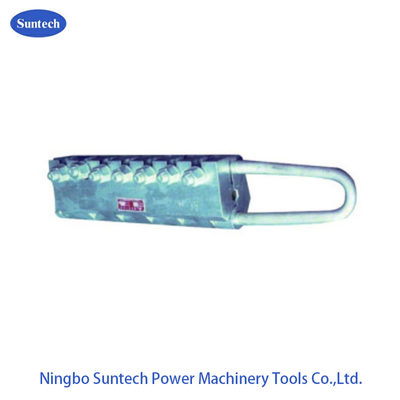

Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp

Product Description

Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.

Feature

1. The body of the clamp is fabricated from high tensile steel.
2. The two halves are hinged to each other on one side and the other side High tensile bolts are provided along with the nuts.

Applicatoin

The clamp is suitable to grip specific round strand wire rope.

Apply to anti-twising steel rope.

Item number	Model	Rated Load(KN)	Applicable Anti Twist Steel Rope	Weight(KG)
13171	SKGF-2	20	7,9	5.6
13172	SKGF-3	30	11	5.6
13173	SKGF-5	50	13,15	18
13174	SKGF-6	60	16,18	18
13175	SKGF-8	80	20	20
13176	SKGF-10	100	22,24	20

Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp 0

Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp 1

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
