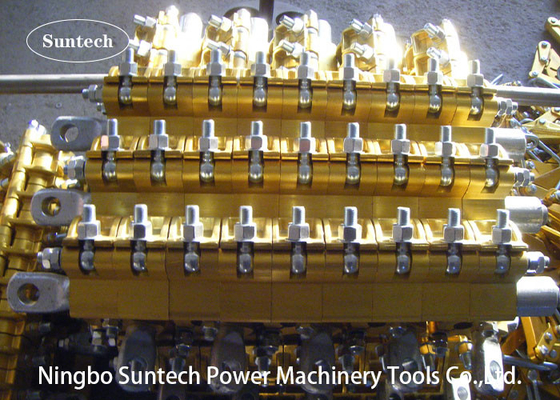

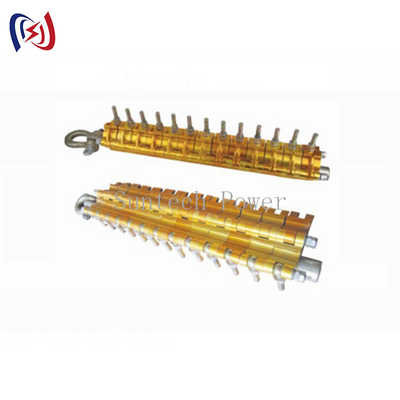

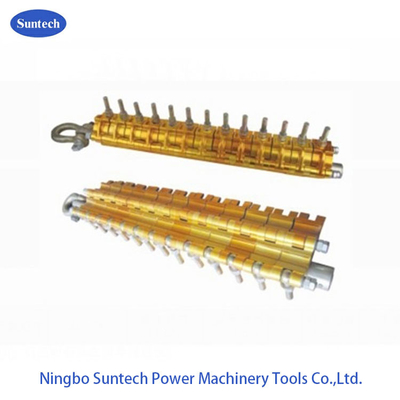

Multi Segment Type Conductor Wire Gripper Come Along Clamp Stringing Tools

1pcs
MOQ
Get the lastest price
Price
Multi Segment Type Conductor Wire Gripper Come Along Clamp Stringing Tools
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium Alloy
Usage: Tightening
Structure: Tight Wire
Type: Wire Clamp
Warranty: One Year
Product Name: Multi-segment Type Aluminum Alloy Conductor Wire Gripper
Highlight:

Conductor Gripper Come Along Clamp

,

Multi Segment Come Along Clamp

,

SK35DP2 Come Along Clamp

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: SK35DP2
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: In Stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs per month
Product Description

Multi Segment Type Conductor Wire Gripper Come Along Clamp Stringing Tools



Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Feature:

1.High strength aluminium alloy with light weight and no damage to insulating layer

2.All gripping jaws are produced with new technology to increase jaw life.

Applicatoin:

Apply to large cross-section conductor under high tension and long span construction situation.

Item number
Model
Rated Load
(KN)
Applicable
Conductor Diameter
(mm)
Tightening
Torque
(N.m)
Weight
(kg)
13230L
SK35DP2
120
25-35
780
20
13231L
SK50DP2
150
MAX50
780
25
13230
SK35DP1
120
MAX35
780
45
13231
SK45DP1
120
MAX45
780
50
13230LA
SK35DP2A
90
25-35
780
18
13230LB
SK35DP2B
150
25-35
780
26



Multi Segment Type Conductor Wire Gripper Come Along Clamp Stringing Tools 0
