Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | CE and ISO |
Model Number: | SKJL |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Wooden Case |
Delivery Time: | Shipped in 7 days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs per month |
Material: | Aluminum | Rated Load: | 10KN To 30KN |
---|---|---|---|
Diameter Of Cable: | 10mm To 37mm | Weight: | 1.4kg To 4.0kg |
Max Open: | 15mm To 39mm | Name: | Aluminum Alloy Insulated Conductor Gripper For Hanging Cable |
High Light: | 37mm Conductor Gripper,30KN Conductor Gripper,Conductor Gripper 4kg |

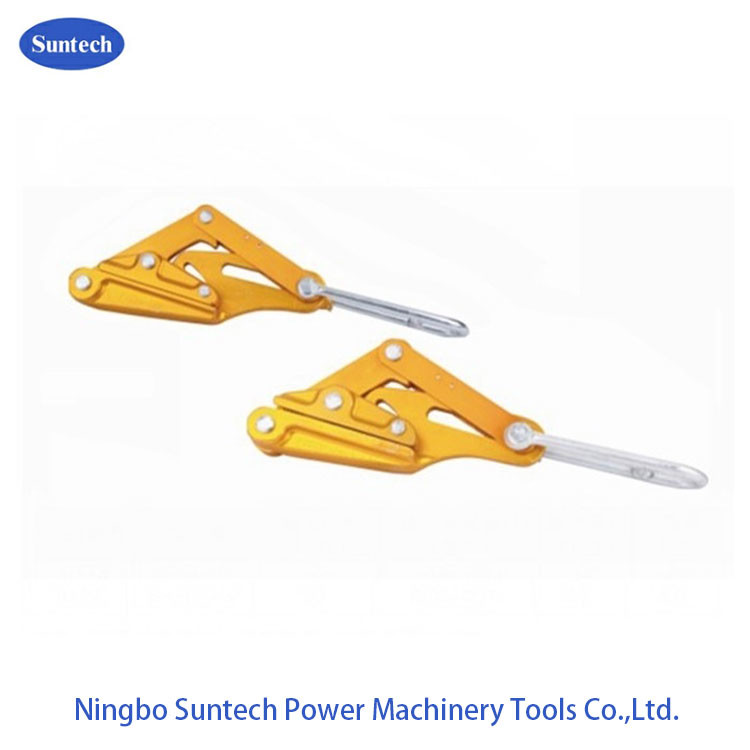

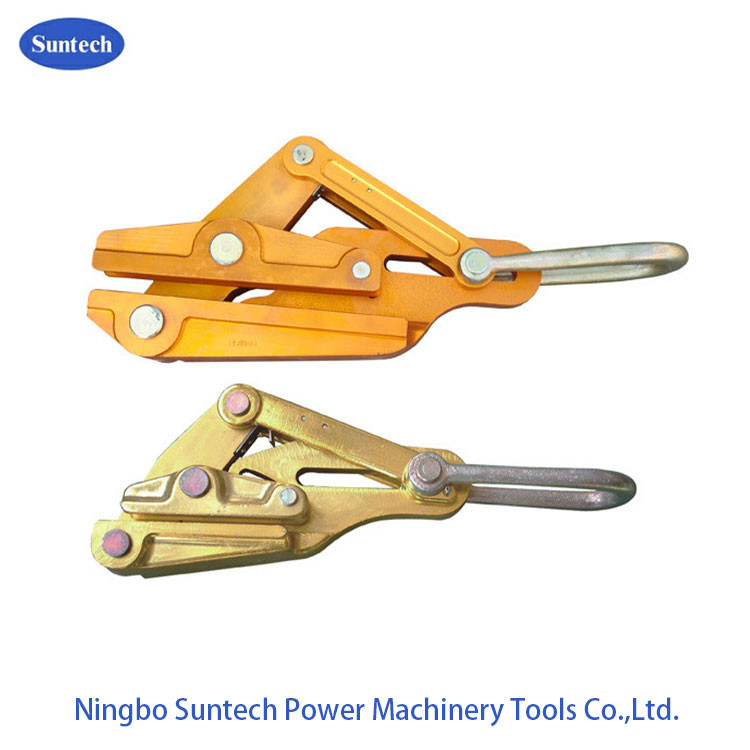

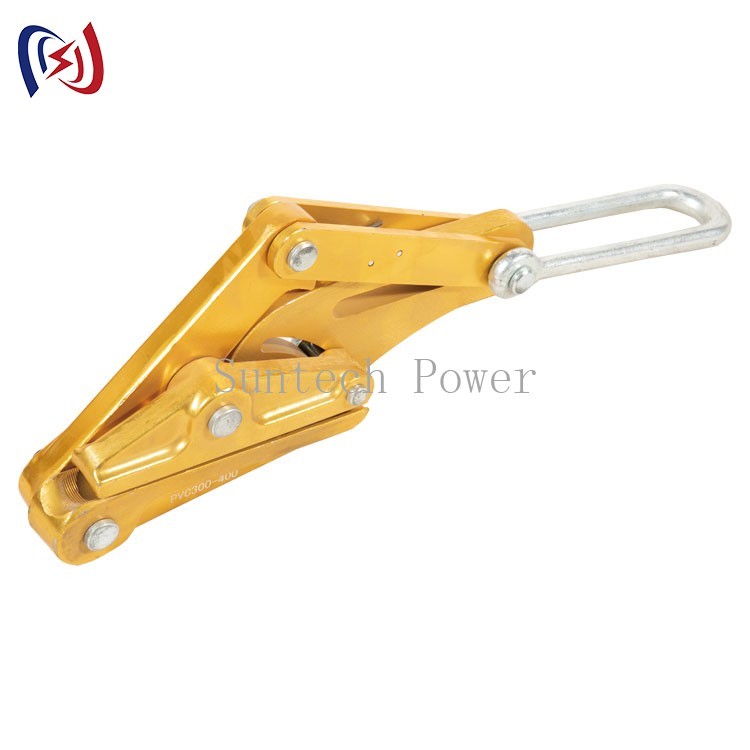

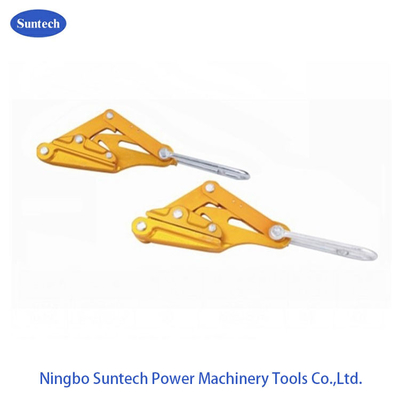

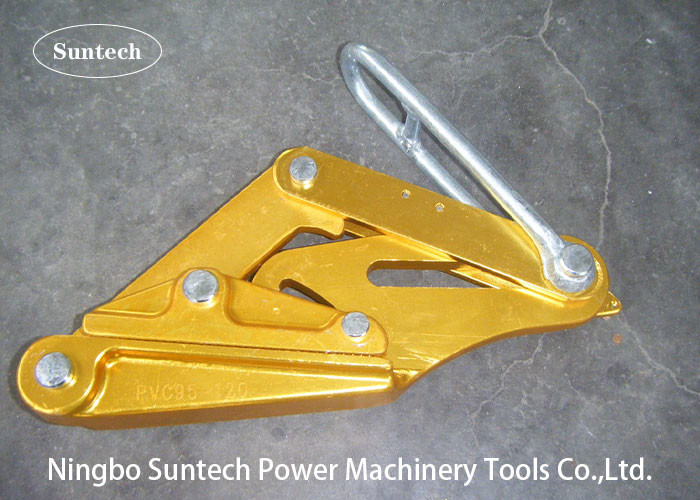

Aluminum Alloy Insulated Conductor Gripper Come Along Clamp Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
Application
Aluminum alloy conductor gripper,cable wire grips for different conductors is applied to adjusting sag in erecting wire and sagging.
The product is forged of high strength aluminum alloy, compact and light weight.
Speicifications
Item number | Model | Rated Load(KN) | Applicable Conductor(LG) | Applicable Wire Diameter(MM) | Max Open(MM) | Weight(KG) |
13192 | SKJL-1 | 10 | 25-70 | Φ10-Φ14 | 15 | 1.4 |
13202 | SKJL-1.5 | 15 | 95-120 | Φ14-Φ20 | 22 | 3 |
13212 | SKJL-2 | 20 | 150-240 | Φ20-Φ25 | 27 | 4 |
13213 | SKJL-2.5 | 25 | 300-400 | Φ25-Φ32 | 34 | 4 |
13214 | SKJLA-3 | 30 | 500-630 | Φ32-Φ37 | 39 | 4 |
Contact Person: Peter
Tel: 86-13958364836
