Place of Origin: | Ningbo or Shanghai |
Brand Name: | Suntech |
Certification: | CE GS |
Model Number: | ZNL-3200 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the lasted price |
Packaging Details: | Cartons or Cases |
Delivery Time: | 5-7days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000pcs per month |
Advantage: | Easy Operation | Model: | ZNL-3200 |
---|---|---|---|
Certification: | CE GS | Product Name: | Wire Rope Pulling Hoist |
Capacity: | 3.2Ton | Application: | Cable Pulling,Lifting |
High Light: | 120cm Wire Rope Pulling Hoist,L2 Wire Rope Pulling Hoist,GS Transmission Line Stringing Tools |

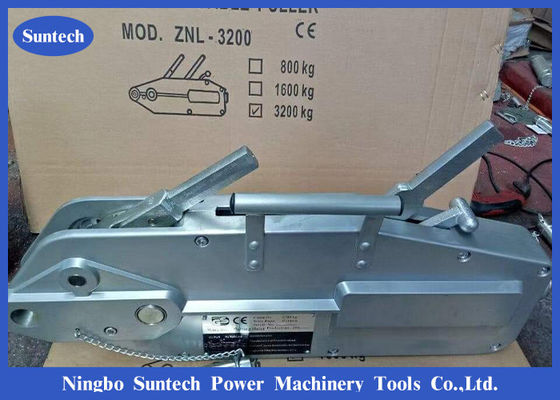

Transmission Line Tool 3.2T Wire Rope Hoist Puller Cable Pulling Hoist For Lifting
Item number | 14183 | 14184 | 14185 | 14186 |
Model | HSS408 | HSS416 | HSS432 | ISS454 |
Rated Lifting/Pulling(KN) | 8/12.5 | 16/25 | 32/50 | 54/84 |
Once journey(mm) | ≥40 | ≥40 | ≥16 | ≥20 |
Diametre of steel rope(mm) | Φ8 | Φ11.6 | Φ16 | Φ22 |
Standard length of steel rope(m) | 20 | 20 | 20 | 20 |
Net weight(kg) | 6.8 | 13 | 25 | 52 |
Hand wrenching at the rate load(N) | ≤343 | ≤400 | ≤441 | ≤550 |
Encasement dimension(mm) | 420x106x250 | 530x126x315 | 660x160x360 | 930x390x150 |
