Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 23106-23109B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Box and Cases |
| Delivery Time: | 5-7 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60000pcs per month |
| Name: | Electroscope | Power: | Electronic |
|---|---|---|---|
| Voltage: | 10-500KV | Effective Insulation Length: | 90-7000mm |
| Pull Length: | 1000 - 8000mm | Package: | Boxes |
| High Light: | Electronic Electroscope,8000mm electroscope,500KV electroscope |
||

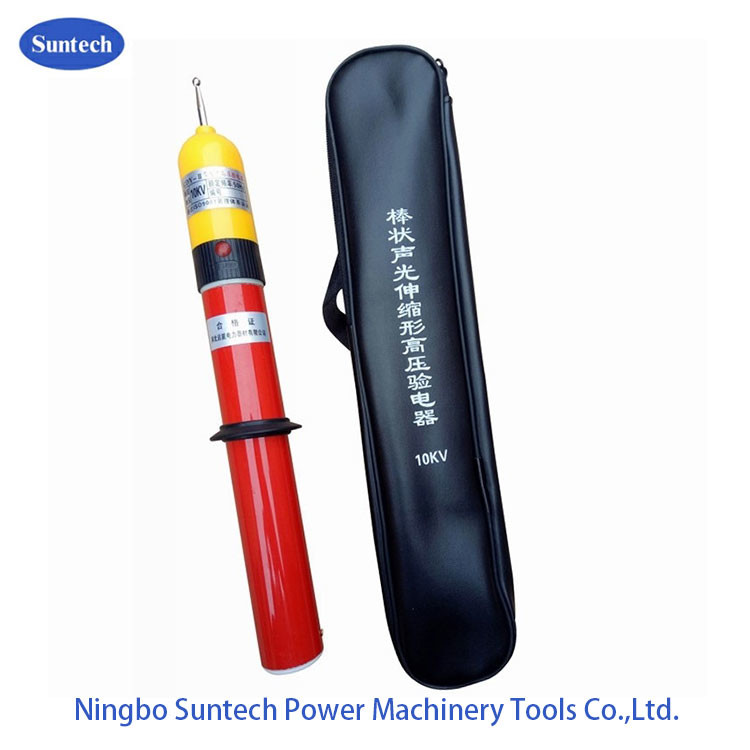

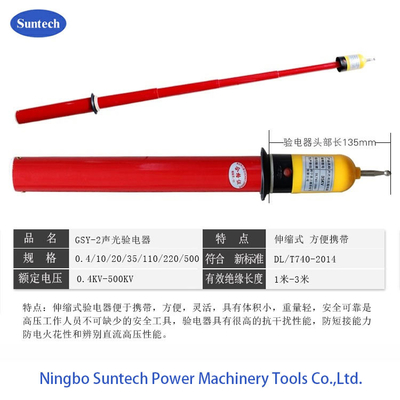

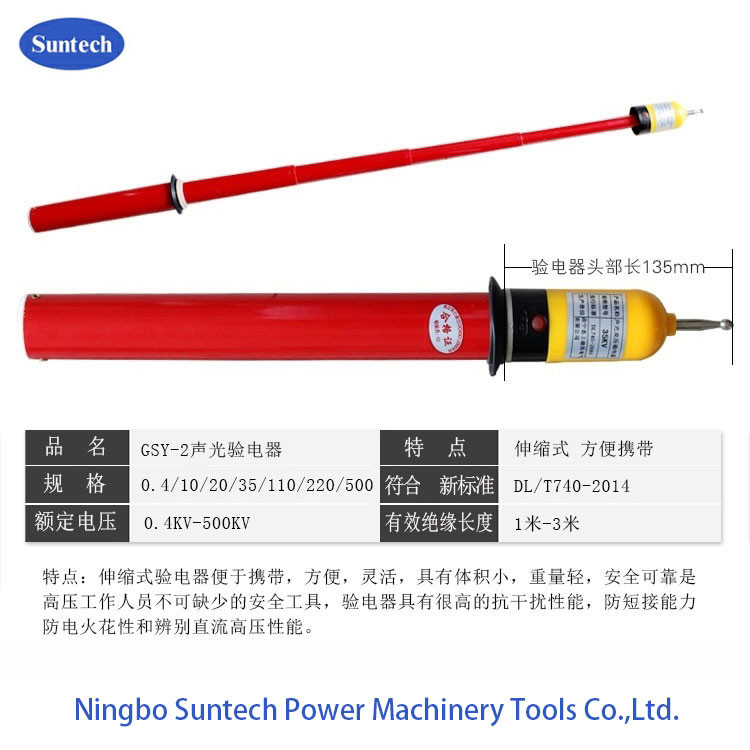

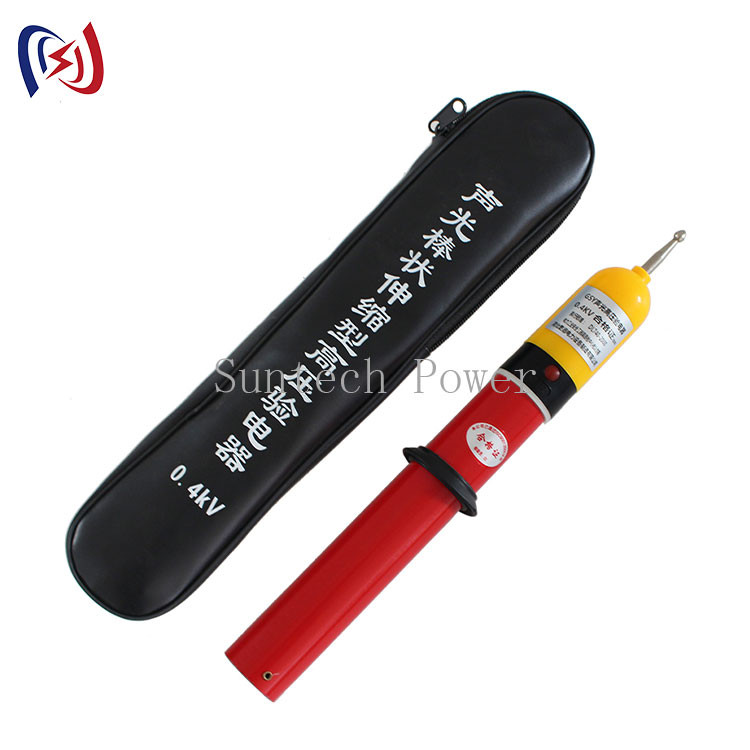

High Voltage Communicate Sound-light Electroscope for Cheak the high voltage
Application
High Voltage Electroscope, integrated the advantages of various traditional electroscope. The lines and advanced and practical features. Field operation with acousto-optic alarm, safe and reliable. It can detect high voltage line and equipment Whether there is the power frequency voltage
Features
1.safe and reliable
2.high quality
3.Sound and light alarm
4.dual display
5.ensure work safety.
Technical Data
| Item number | Rated Voltage(KV) |
Effective Insulation Length(MM) |
Extension(MM) | Constriction(MM) |
| 23105 | 0.4 | 1000 | 1100 | 350 |
| 23106 | 10 | 1000 | 1100 | 390 |
| 23107 | 35 | 1500 | 1600 | 420 |
| 23108 | 110 | 2000 | 2200 | 560 |
| 23109 | 220 | 3000 | 3200 | 710 |
| 23109A | 330 | 4000 | 4500 | 1000 |
| 23109B | 500 | 7000 | 7500 | 1500 |
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
