| Type: | Conductor Stringing Blocks | Material: | Aluminum , Nylon Sheaves |
|---|---|---|---|
| Name: | Hold Down Stringing Block | Size: | LGJ120-LGJ720 |
| Usage: | Stringing Blocks | Rated Load: | 10-40kn |
| Weight: | 13-39kg | Item: | 10241-10244C |
| High Light: | wire rope pulley block,wire stringing blocks |
||

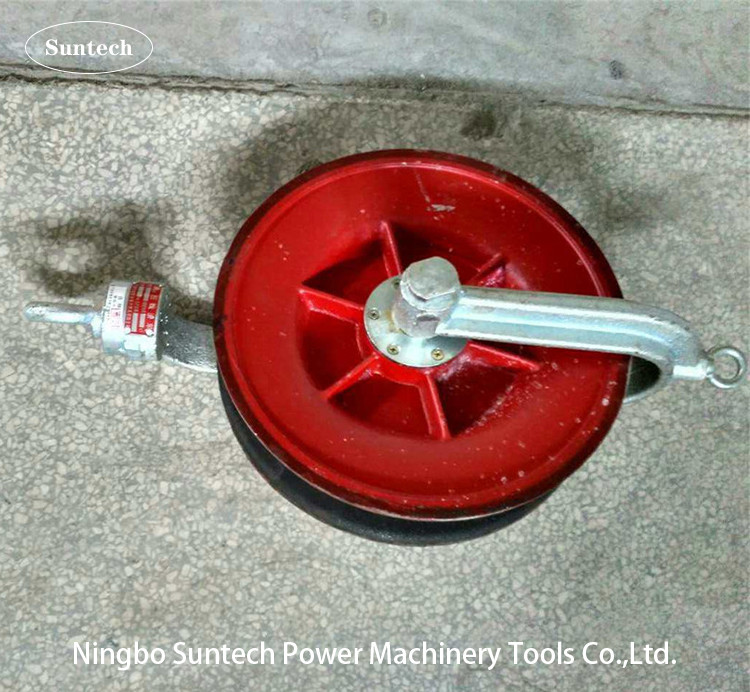

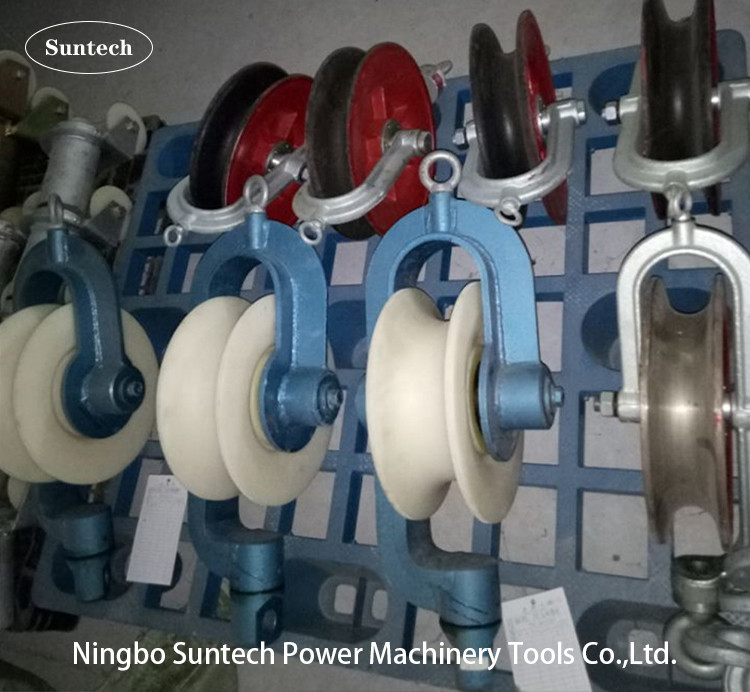

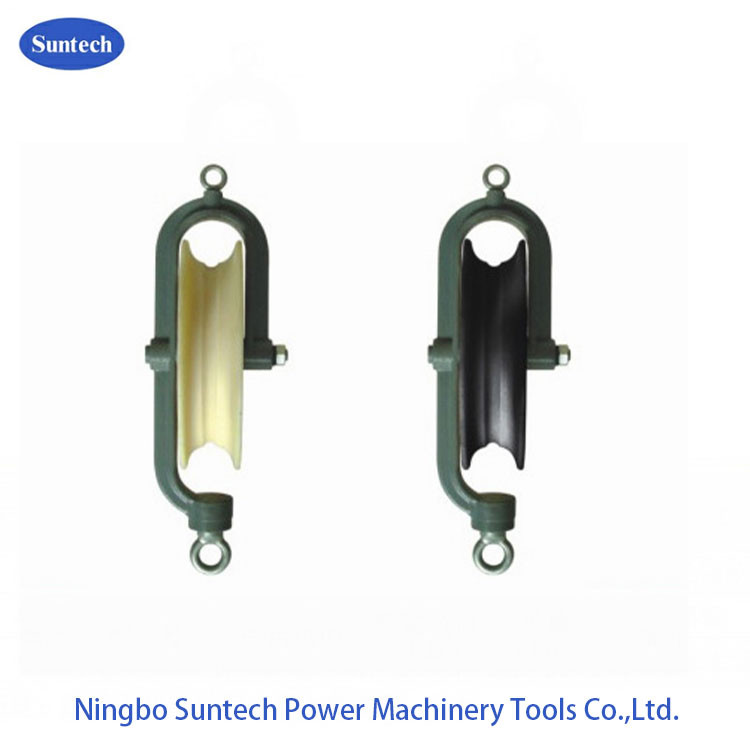

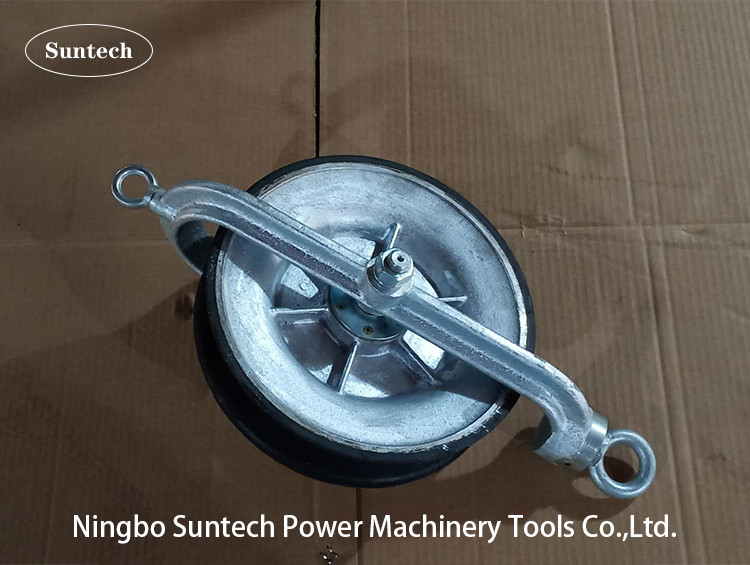

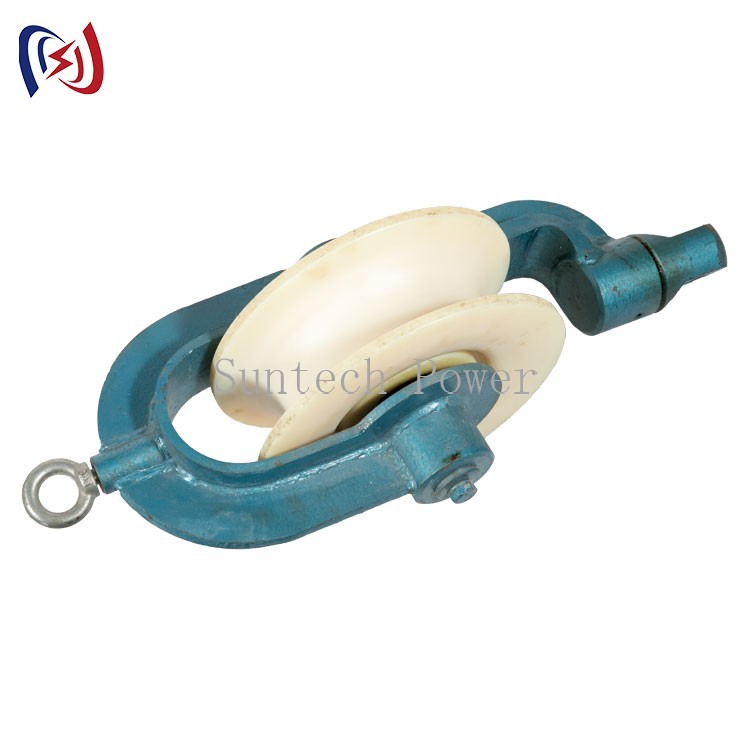

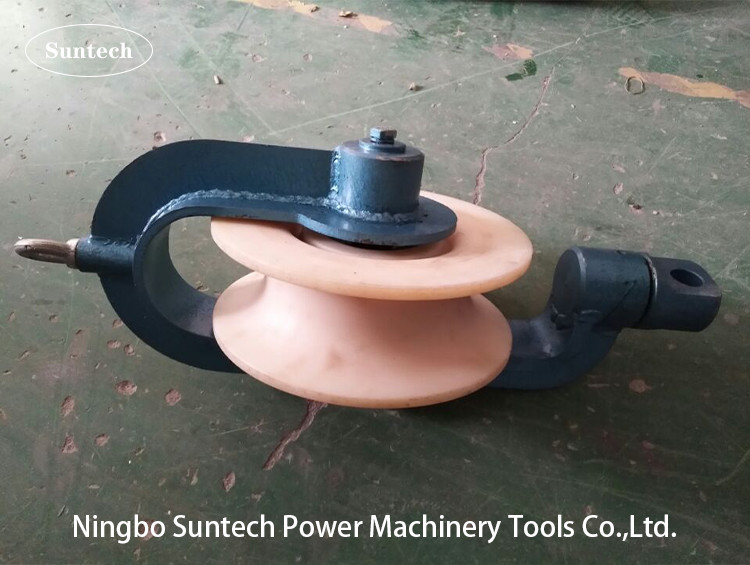

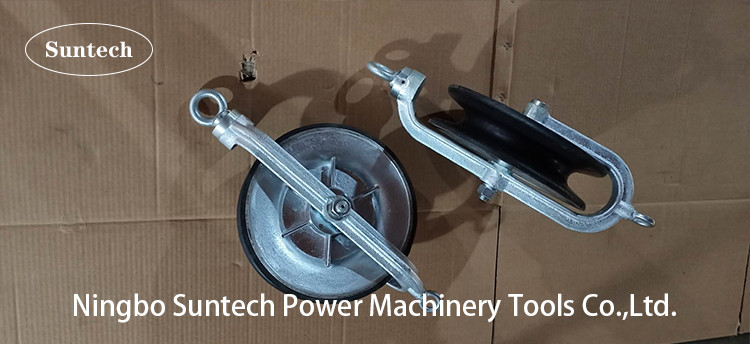

Overhead Line Round Belt Hold Down Wire Cable Pulley Stringing Block
Apply to hold down the the upward conductor and ground wire in pulling.
Overhead Line Round Belt Hold Down Wire Cable Pulley Stringing Block
Application:
The anti lifting antomatic release pulley, it is used to press down earth wires or conductors in condutor stringing.
The sheave is installed on balll bearings. The frame is made of highly quality galvanzied steel.
The pulley is equipped with spring release system, can be released from the cable automatically.
Also the sheave can be made of MC nylon sheave or steel ,or aluminum sheave.
If you have some technical doubts, pls freely ask us. we will recommend you the best suitable item.
Technical Data

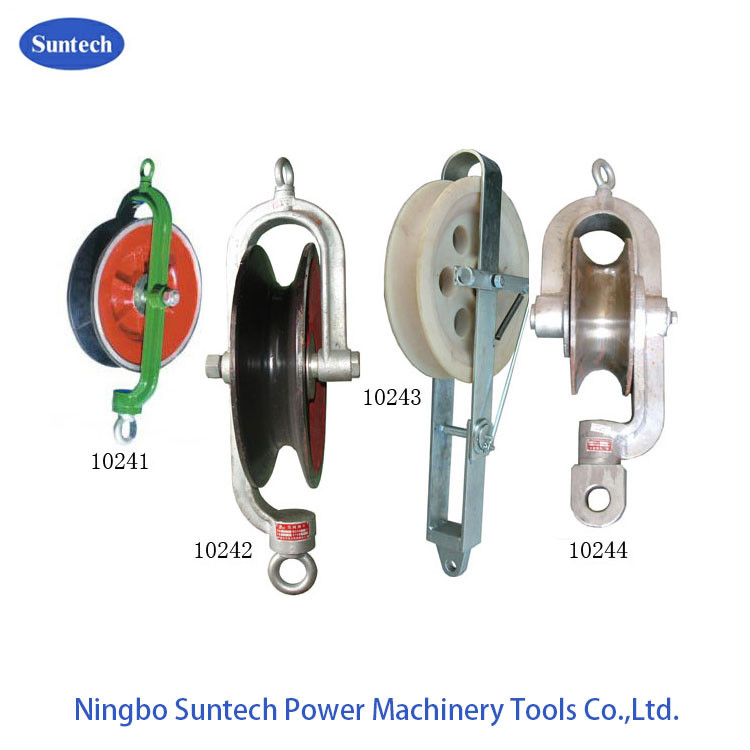

| Item number | Model | Applicable Conductor | Rated Load(KN) | Weigh(kg) | Remarks |
| 10241 | SHY10L | ≤ ACSR400 | 10 | 13 | Aluminum Sheave With Rubber Liner |
| 10242 | SHY10G | ≤ 14mm | 10 | 20 | Steel Sheave |
| 10243 | SHY25N | ≤ ACSR720 | 25 | 16 | MC Nylon Sheave |
| 10244A | SHY40G | ≤ 28mm | 40 | 55 | Steel Sheave |
| 10244B | SHY40L | ≤ ACSR720 | 40 | 39 | Aluminum Sheave |
| 10244C | SHY40N | ≤ ACSR720 | 40 | 34 | MC Nylon Sheave |
