Name: Aluminum Sheave Grouding Wire Cable Pulley Block Conductor Stringing Blocks
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SJL-100,SJT-100
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Belt Type, Earth Wire Stringing Stock

Material: Aluminum

Name: Earth Wire Block

Applicable Conductor: Dia 40mm Conductor

Usage: Transmission Line

Max Current: 100A

Sheave Material: Casting Steel

Bottom Diameter: 50mm

Highlight:

40mm Conductor Stringing Blocks

Aluminum Wire Cable Pulley 40mm

Cable Pulley 40mm Stringing Blocks

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO,CE

Model Number: SJL-100,SJT-100

Payment & Shipping Terms

Packaging Details: Exported Box and carton

Delivery Time: 5-7 days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Gallery

Aluminum Sheave Grouding Wire Cable Pulley Block Conductor Stringing Blocks

Product Description

Aluminum Sheave Grouding Wire Cable Pulley Block Conductor Stringing Blocks

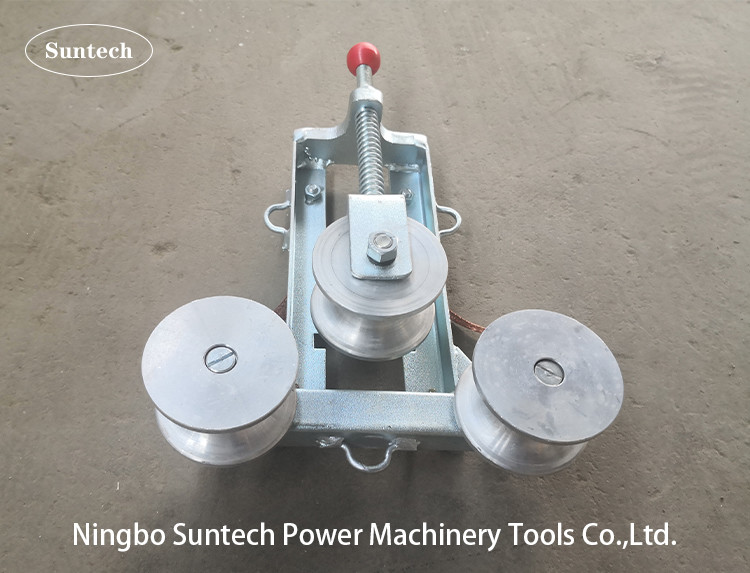

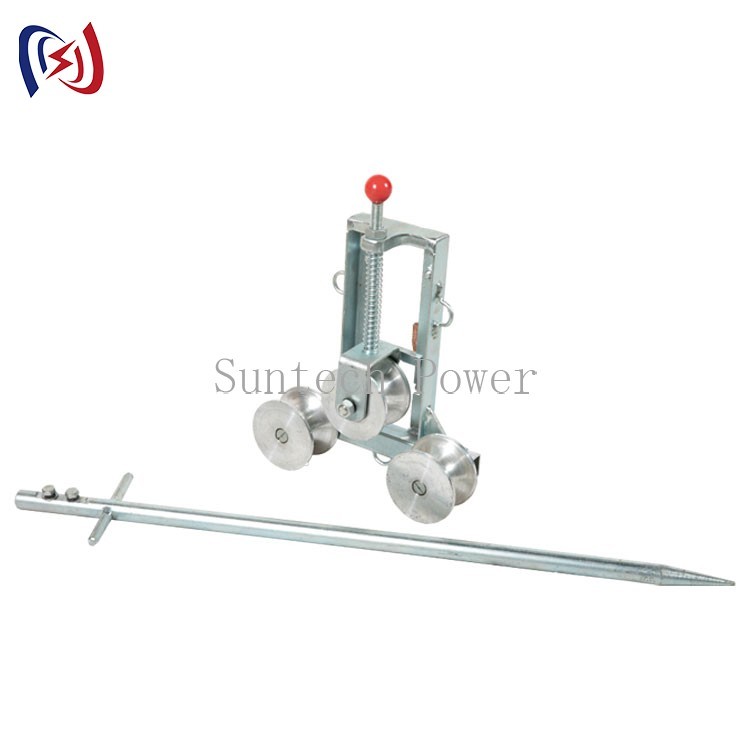

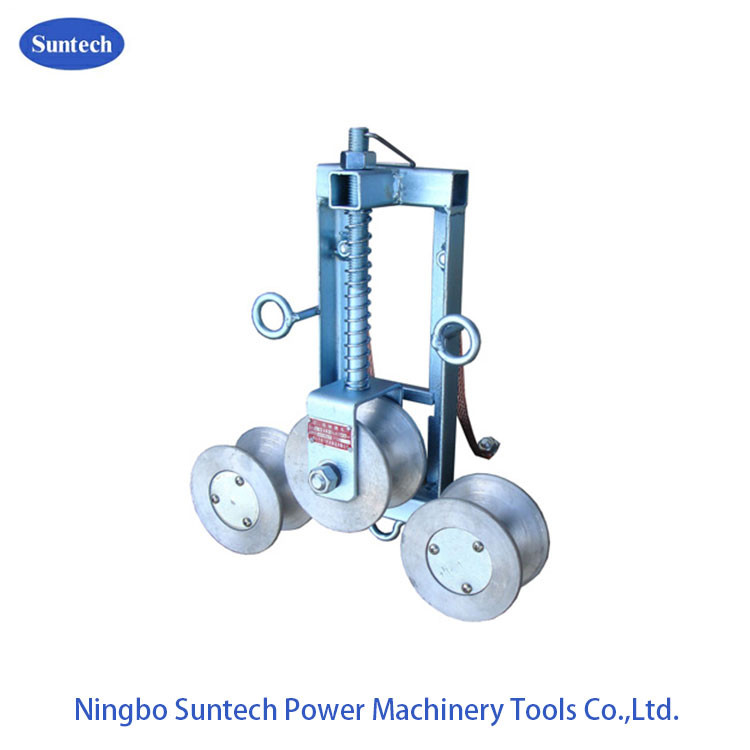

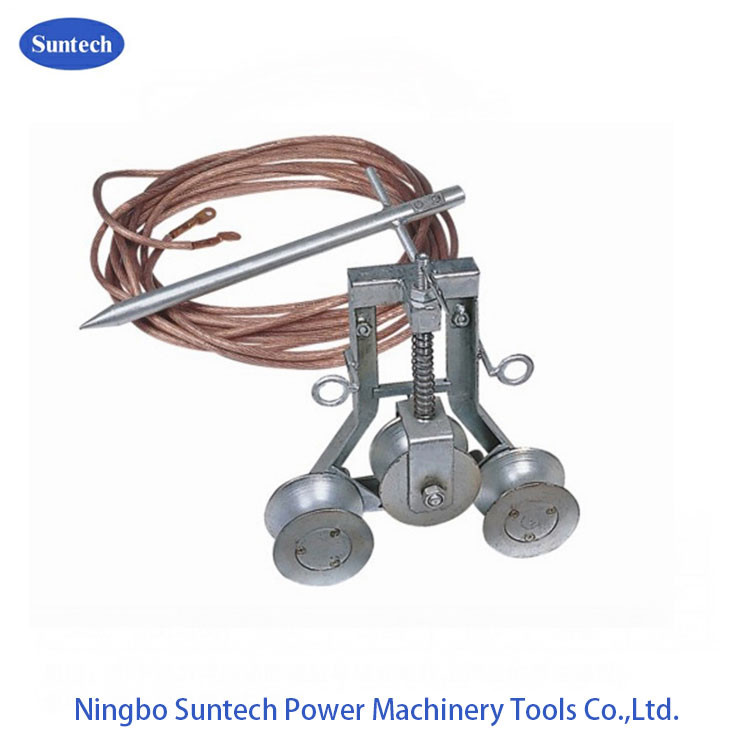

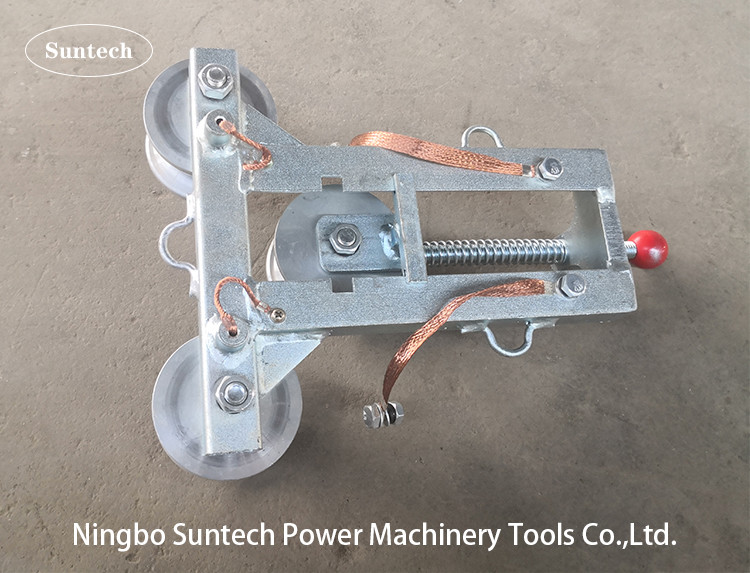

This hook grounding block can remove the induced electricity from the conductor or earth wire during the stringing operation.

When in use, it can be mounted on the outlet side of tensioner or the inlet side of puller, and then pulled by two stay wires.

Our hook grounding block is designed with triple sheave mechanism, which is automatically compacted by the torsion spring.

The maximum allowable current reaches 100A, and the transit time is only 0.1 second. The recommended sectional area

of the supporting earth wire is 25mm2.

Item number	Model	Bottom Diameter (mm)	Applicable Wire	Max Current (A)	Sheave Material	Weight (kg)
12101	SJL38-100	Φ46	Φ38 Conductor	100	Casting steel	8.9
12101A	SJL48-100	Φ56	Φ48 Conductor	100	Casting steel	10.0
12102	SJT38-100	Φ46	Φ38 Steel wire ropeGrounding Wire	100	Casting steel	11.0

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
