| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | SHL,SHG |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Box and carton |
| Delivery Time: | 5-7 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per month |
| Application: | Construction Works | Material: | Aluminum And Nylon |
|---|---|---|---|
| Name: | Grounding Stringing Block | Applicable Conductor: | Conductor Or Steel Wire Rope Dia 6-28 |
| Bottom Diameter: | Dia 60-75 | Warranty: | At Least One Year |
| Sheave Material: | Aluminum Alloy Or Steel | Usage: | Eliminate The Faradism |
| High Light: | Aluminum Nylon Hook Pulley Block,75mm Hook Pulley Block,Grounding Stringing 75mm Block |
||

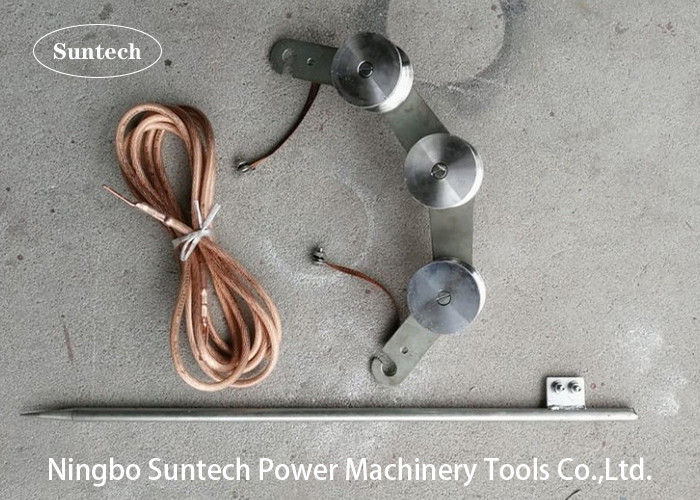

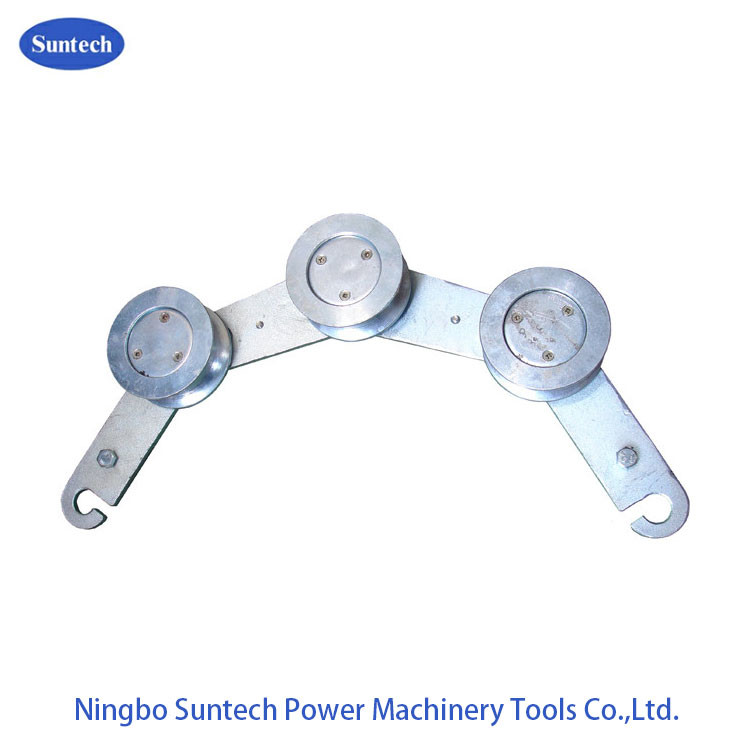

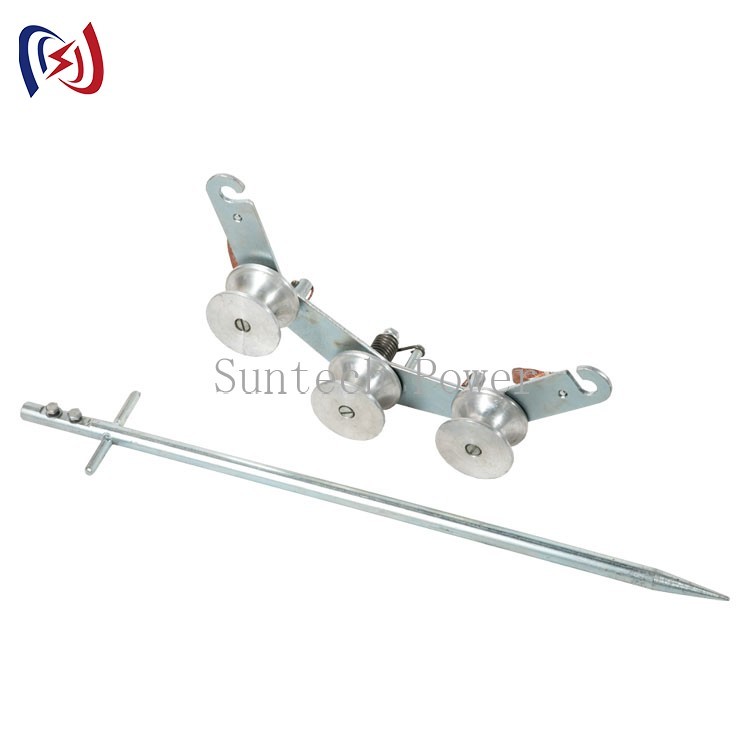

Aluminum Sheave Hook Grounding Block Conductor Stringing Block
Uses:
To eliminate induced staticelectricity in conductor or grounding wire spread when tensioning erect wires .
1. Toeliminate induce electricity in conductor and grounding wire when releasingwires .
2. Mountedon the outlet side of tensioners or the inlet side of puller ,and drawn by twostay wires .
3. Tri-sheavemechanism ,compacted automatically .
4. Maximumallowable current is 100A,time electrified is 0.1 second.
5. It isrecommended that section of mating conductor is 25 mm2
| Item number | Model | Bottom Diameter(mm) | Applicable Conductor | Sheave Material | Weight(kg) |
| 12111 | SHL40-75D | Φ75 | Φ6-Φ40 conductor | Aluminum Alloy | 4.5 |
| 12111A | SHL48-75DA | Φ6-Φ48 conductor | 5 | ||
| 12112 | SHG32-60D | Φ60 | Φ6-Φ32 Steel Wire Rope And Steel strand | steel | 5 |
| 12112A | SHG38-60DA | Φ6-Φ38Steel Wire Rope And Steel strand | 5.5 | ||
