20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block

20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block

  • 20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block
  • 20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block
20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block
Product Details:
Place of Origin: Fenghua,Ningbo,China
Brand Name: Suntech
Certification: ISO 9001
Model Number: SHT,SHTN
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the newest price
Packaging Details: Pallets and Exported Wooden Case
Delivery Time: 7-15days after payment
Payment Terms: L/C, T/T, D/A, Western Union, MoneyGram
Supply Ability: 800pcs per month
Contact Now
Detailed Product Description
Name: Earth Wire Stringing Block Type: Grouding Wire Stringing Block
Applicable Steel Strand: GJ35-GJ150 Rated Load: 5-20KN
Material: Nylon Sheave Or Steel Sheave Item: 10331-10344
High Light:

20KN Wire Rope Pulley Block

,

GJ150 Wire Rope Pulley Block

,

Earth wire stringing block

20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block



5-20KN Hook type earth wire stringing pulley block is used as hanging pulley and skyward stringing pulley.It is used to release lightning shield line or cross steel strand.



We are a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle, Wire Grip, Reel Stand, Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors, Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric power construction. At the same time, agents of various imported construction tools and power equipment.



There are more than 200 employees in the group company. Among them, there are more than 50 senior and mid-level titles, technicians and managers. In July 2004, the company set up municipal engineering technology research and development center, and used "center" as a technological support for research and development of various new products.



The company's existing testing methods are in good condition, detection equipment is advanced and complete, the company set up the measurement room, laboratory, equipped with a horizontal tensile testing machine, tensile testing, vertical lifting tower hydraulic universal testing machine, hardness tester, salt spray test machine, hydraulic integrated test and testing equipment, from raw material incoming inspection to the factory inspection of products, can fully guarantee the quality control of parts and product performance.



The professional R & D capability is the premise of product innovation and technological progress. Many products of the group have their own intellectual property rights. They have obtained 6 invention patents, nearly 20 patents on utility models and designs. And many times included in the Ningbo municipal new product trial production plan and the national key new product plan.

On the basis of the implementation of the ISO9000 quality system management, the company carries out the special TS16949 management system of the automobile industry at a higher level.

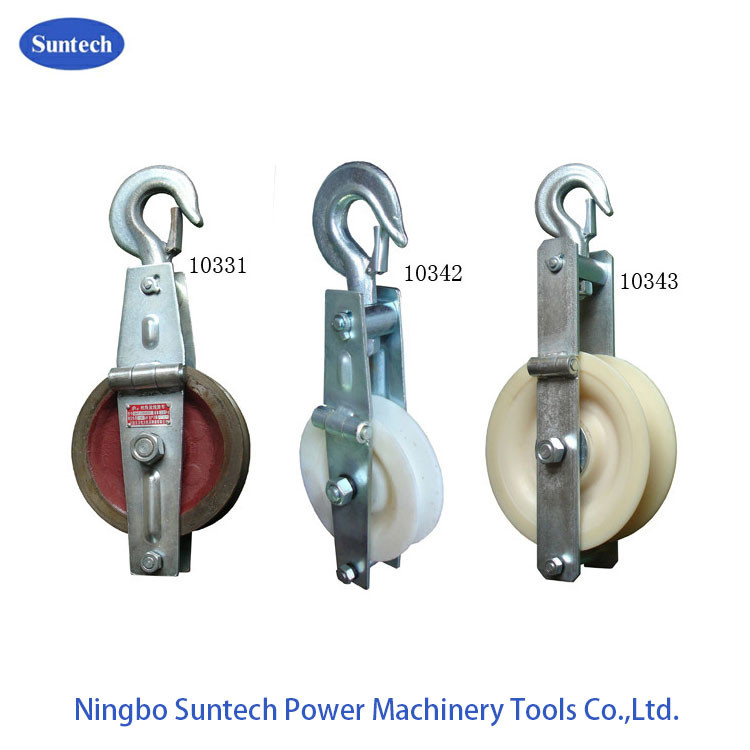

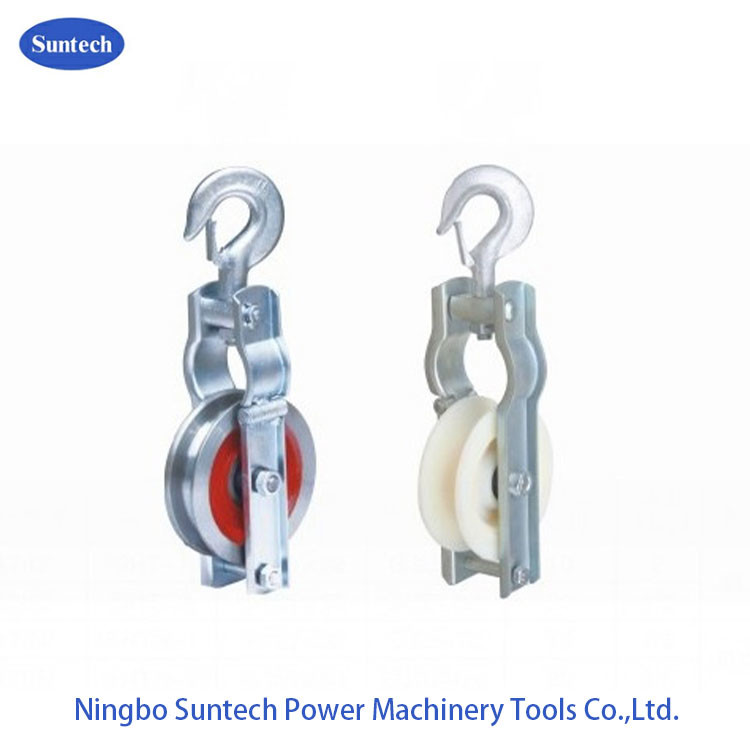

Item number Model Applicable stranded wire Rated load (kN) Weight (kg) Remark
10331 SHT-120×30 GJ35 5 2.2
10332 SHT-150×32 GJ70 10 3.6 Cast steel sheave
10333 SHT-165×50 GJ120 20 4.5
10334 SHT-200×60 GJ150 20 5.2
10341 SHTN-120×30 GJ35 5 1.6
10342 SHTN-150×32 GJ70 10 2.4 Nylon sheave
10343 SHTN-165×50 GJ120 20 3.3
10344 SHTN-200×60 GJ150 20 3.8



20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block 0



20KN Transmission Line Earth Wire Grounding Conductor Stringing Pulley Block 1



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
