Name: Suntech Power Construction Overhead Line ACSR Conductor Stringing Blocks
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: 10121
Price: 285,715.00 USD
Availability: InStock

Suntech Power Construction Overhead Line ACSR Conductor Stringing Blocks

1 Set

MOQ

Get the newest price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Nylon,Aluminum

Middle: Cast Steel Sheave

Number Of Sheave: 1-3

Rated Load: 60-120KN

Outside Diameter: 660mm

Type: Stringing Blocks

Max Conductor Diameter: LGJ500

Usage: Overhead Line

Highlight:

ACSR Conductor Stringing Blocks

1160mm Overhead Line Blocks

1160mm Conductor Stringing Blocks

Basic Infomation

Place of Origin: Fenghua,Ningbo,China

Brand Name: Suntech

Certification: SGS & CE

Model Number: 10121

Payment & Shipping Terms

Packaging Details: Exported Wooden Boxes and pallets

Delivery Time: 7-15 Workdays

Payment Terms: L/C, T/T，D/P, Western Union

Supply Ability: 600pcs per month

Gallery

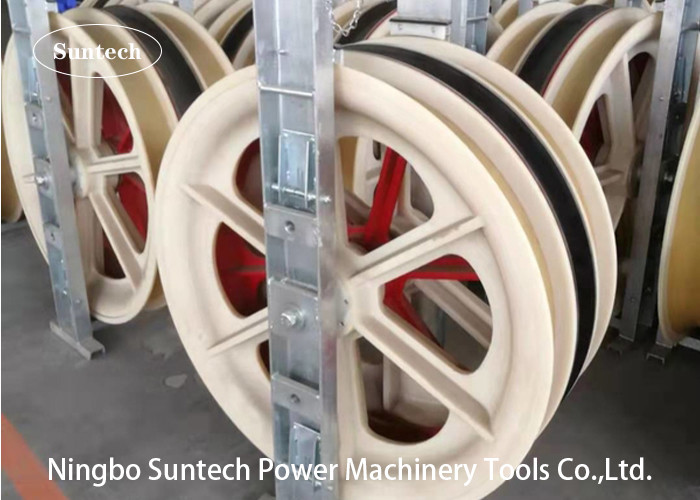

Suntech Power Construction Overhead Line ACSR Conductor Stringing Blocks

Product Description

Suntech Power Construction Overhead Line ACSR Conductor Stringing Blocks

Ningbo Suntech Power Machinery Tools Co.,Ltd. It is a research and development, production and sales: Stringing Block, Hoisting Tackle, Wire Grip, Reel Stand, Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors, Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric power construction. At the same time, agents of various imported construction tools and power equipment.

Technical Data

Item number	Model	Number of sheaves	Rated load (kN)	Weight (kg)	Features
10121	SHD660	1	20	30	Rubber lined aluminium sheave
10122	SHS660	3	40	100	Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave
10123	SHW660	5	60	150
10124/10124A	SHDN660	1	20	26	MC nylon sheave
10125	SHSLN660	3	40	86	Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave
10126	SHWLN660	5	60	120
10127/10127A	SHSQN660	3	40	70	MC nylon sheave
10128/10128A	SHWQN660	5	60	110	MC nylon sheave
10130	SHQ660A	7	75	190	Middle :cast steel sheave Conductor : MC nylon sheave

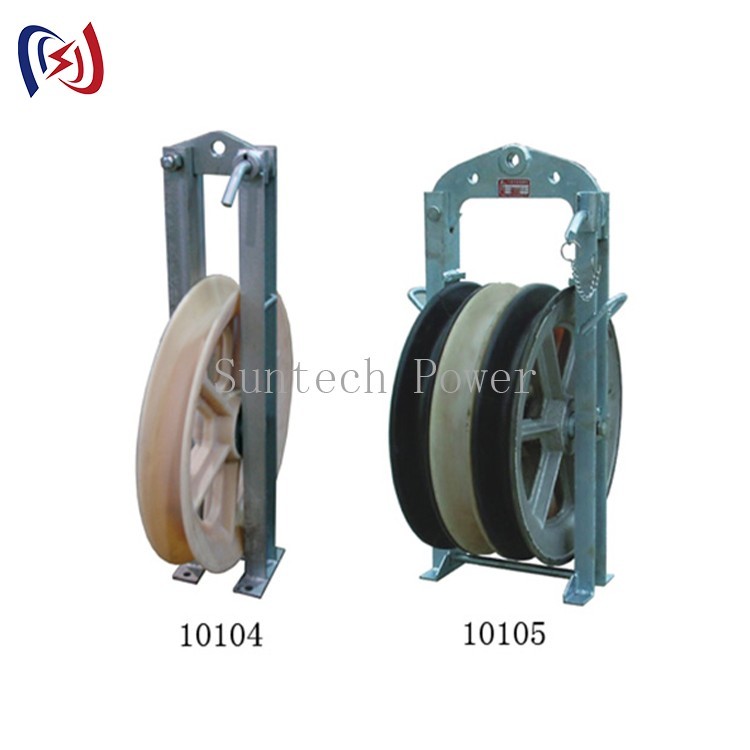

Suntech Power Construction Overhead Line ACSR Conductor Stringing Blocks 0

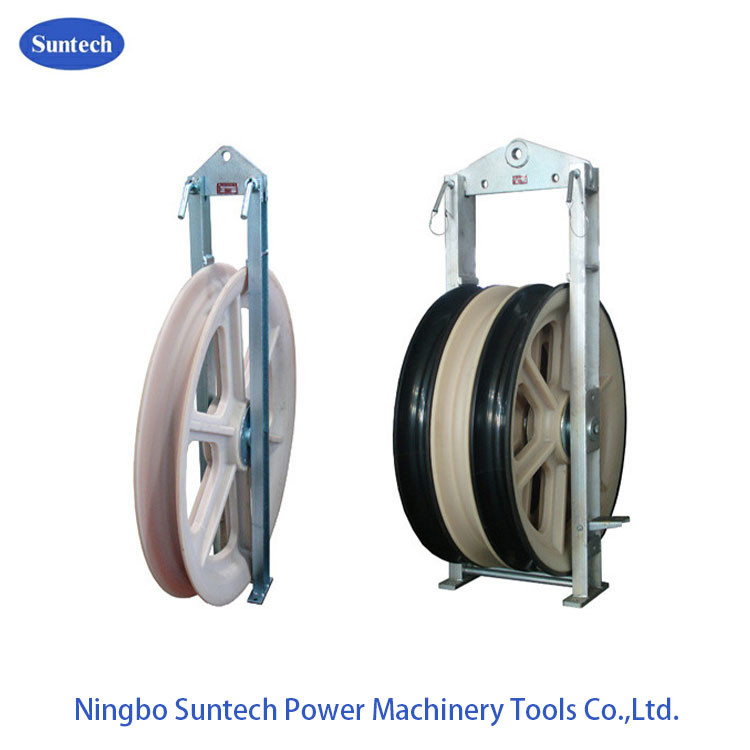

Suntech Power Construction Overhead Line ACSR Conductor Stringing Blocks 1
