Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Fenghua,Ningbo,China |
| Brand Name: | Suntech |
| Certification: | SGS,ISO & CE |
| Model Number: | 10165-10167 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Exported Wooden Cases Or Pallets |
| Delivery Time: | 15-20 Workdays |
| Payment Terms: | L/C, T/T,, Western Union, D/P |
| Supply Ability: | 1000 sets per month |
| Item: | Stringing Blocks | Sheave Size: | 1040*900*125mm |
|---|---|---|---|
| Material: | Nylon,Aluminum | Rated Load: | 50-200KN |
| Model: | SHDN1040,SHSQN1040,SHWQN1040 | Max Conductor ACSR: | LGJ1120 |
| High Light: | 1040mm Bundle Conductor Stringing Blocks,200KN Conductor Stringing Blocks,LGJ1120 Stringing Blocks |
||
LGJ1120 1040mm Bundled 200KN Large Diameter Conductor Stringing Blocks
Cable guide pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes
straight cable rollers,corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches .
Cable rollers should always be used when pulling cables.
Cable Pulley Features:
1. Good wear-resistance,no deformation,long life cycle and so on.
2. We are an OEM supplier specializing in varous casting,forgings and machining
3. The quality of our products have all passed the international standards.
4. The processed products are exported to Asia, Europe, Africa, the United States and other countries.

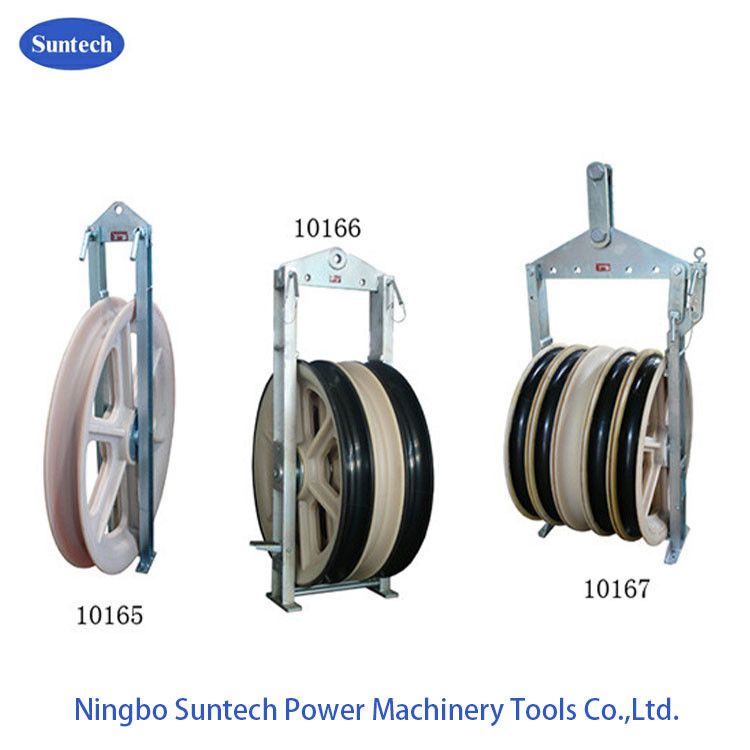

| Item number | Model | Number of sheaves | Rated load (KN) | Weight (kg) | Features |
| 10165 | SHDN1040 | 1 | 50 | 62 | MC nylon sheave |
| 10166 | SHSQN1040 | 3 | 100 | 200 | Middle : MC nylon sheave |
| 10167 | SHWQN1040 | 5 | 200 | 330 | Conductor : rubber lined aluminium sheave |
1.Maximum suitable conductor ACSR1120
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ1040×Φ900×125(mm).
3.The rubber lined MC nylon sheave are completely lined,half lined sheave can be customized
