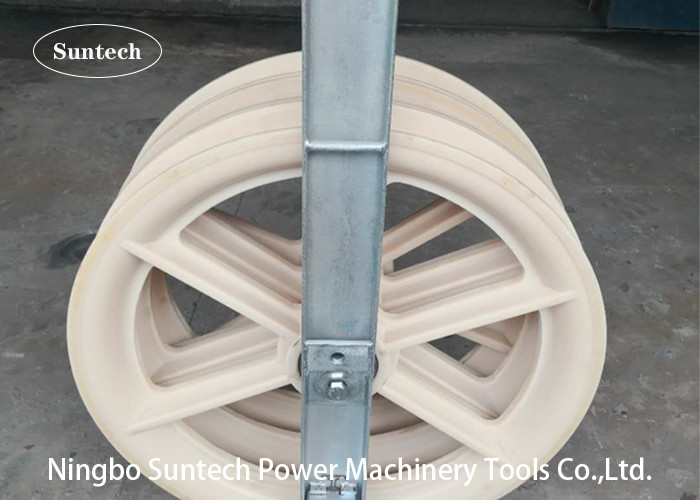

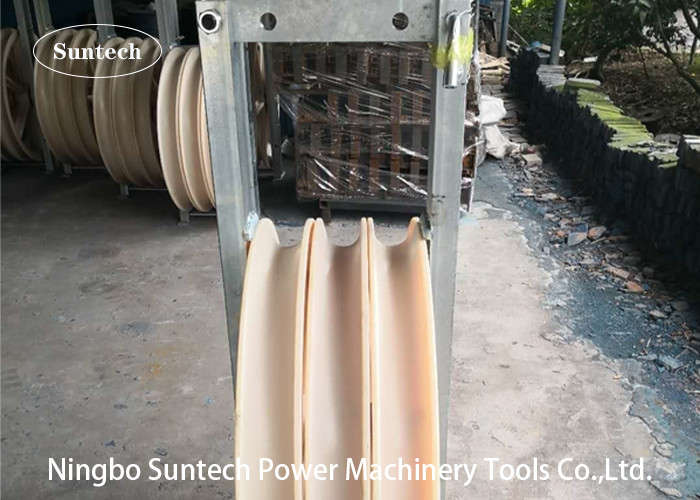

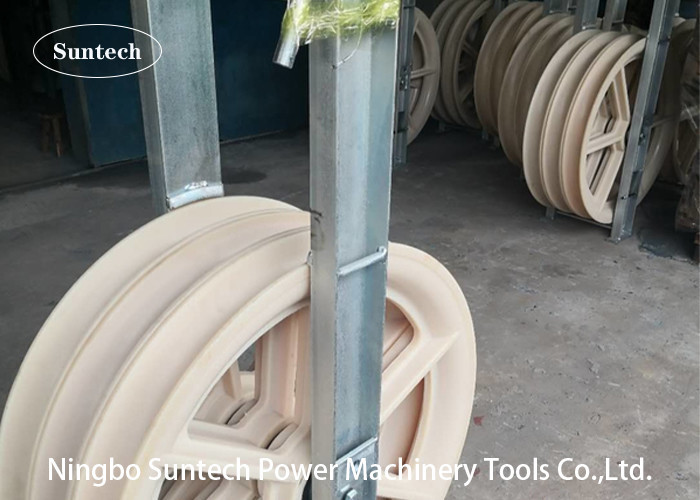

822mm MC Nylon Wire Conductor Stringing Pulley Blocks

Large Diameter Conductor 822mm Cable Pulling Stringing Pulley With MC Nylon Block

This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width)

of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our

conducting wire has the maximum cross section of 630 square millimeters.

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,

gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor

from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave

is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated

MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.
