Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | GR500 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Cartons or Pallets |
| Delivery Time: | 25days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 80pcs per month |
| Power Source: | Hand | Model: | GR500 |
|---|---|---|---|
| Capacity: | 500kg 1100lbs | Product Name: | 1100lbs Worm Gear Winch |
| Type: | Hand Windlass | Usage: | Hositing |
| Weight: | 17kg | Transmission Ratio: | 7.75:1 |
| High Light: | worm gear boat winch,worm hand winch |
||

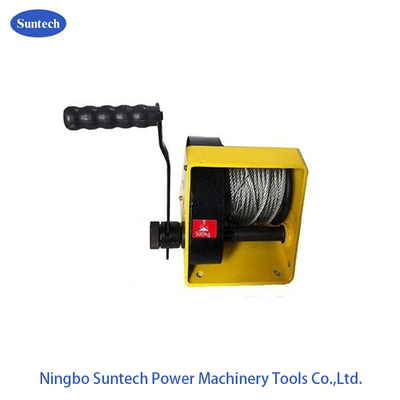

Portable Power Worm Gear Winch 500kg Mini Manual Customized Optional Cable
Applications:
Model GR500 worm gear winch,manual windlass,cable winch,manual winch is used as a widespread instrument for automobile, shipping, transport, workshop, agriculture and sports facilities, etc.
Positive action brake can hold the load in any position.Compact, light weight and rugged construction.
Mechanical components enclosed for protection.It has functions of structure compactly. Being easy to carry, operating simply, and can be operated with no power.
Specifications in details:
| MODEL | GR150 | GR300 | GR500 | GR1000 | GR2000 |
| Capacity(kg) | 150 | 300 | 500 | 1000 | 2000 |
| Steel Wire Rope(mm) | 4 | 5 | 6.8 | 9 | 13 |
| Length(m) | 22 | 40 | 25 | 25 | 30 |
| Layer Number | 6 | 6 | 4 | 4 | 3 |
| Net Weight(kg) | 8 | 16 | 17 | 38 | 60 |
| A(mm) | 180 | 240 | 240 | 412 | 500 |
| B(mm) | 325 | 385 | 385 | 485 | 585 |
| C(mm) | 150 | 200 | 200 | 300 | 325 |
| D(mm) | 150 | 200 | 200 | 300 | 405 |
| E(mm) | 350 | 250 | 250 | 350 | 350 |
| Φx(m) | 4x22 | 5x40 | 6.8x20 | 9x25 | 15x30 |
| Transmission Ratio | 2.842:1 | 6.67:1 | 7.75:1 | 23.75:1 | 43.7:1 |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
