Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | BHW600CS-N |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Inner boxes and outside cartons or customize packing |
Delivery Time: | 30days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 6000pcs per month |
Capacity: | 600kg | Power Source: | Manual Source |
---|---|---|---|
Application: | Poultry Farm | Gear Ratio: | 31:1/41:1/51:1 |
Warranty: | One Year | Product Name: | Worm Gear Winch |
High Light: | worm gear hand winch,worm hand winch |

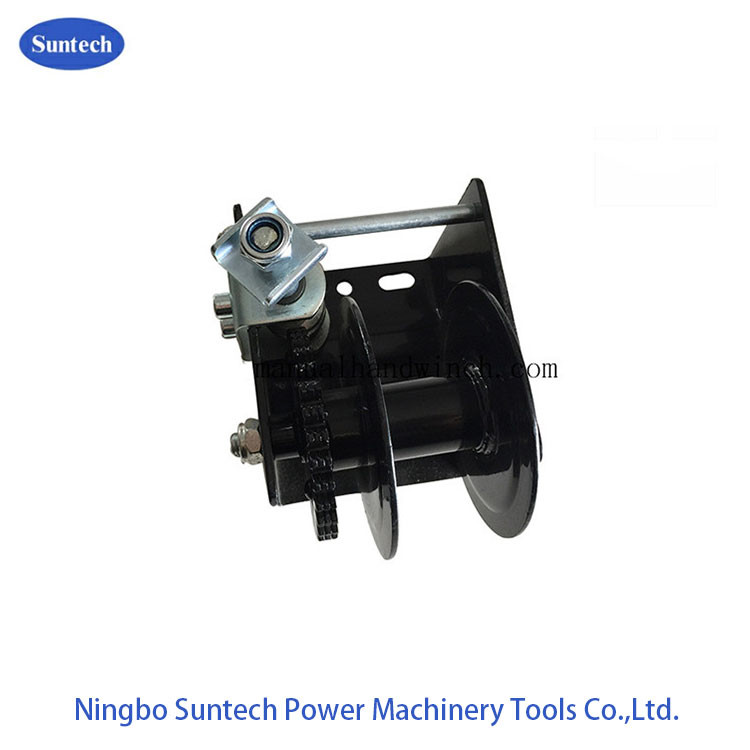

Poultry Wall Mounted Worm Gear Hand Winch 600kg Single Drum Black Plated
Descriptions For Worm Gear Winch
Heavy gauge zinc plated steel frame.
Adapts for ratcheting or free spooling.
Five slots in base to allow multiple fixing positions to suit most trailers, boats, caravans.
Ratchet Type: Two Way, The higher position is for pulling, the lower position is for releasing, the middle position is for both pulling and releasing, but can only be used when unloaded.
Ideal use on pickup trucks, trailers and other mobile applications.
Installs easy with bolts and lock nuts (not included).
Product name: Worm gear hand winch
Capacity: 1500lbs-3000lbs
Gear Ratio: 31:1/41:1/51:1
With Cable,Strap or without Cable/Strap
Specification:
Model | BHW600CS-N |
Capacity (Lbs) | 600KG |
Gear ratio | 31:1/41:1/51:1 for choice |
Drum | Single |
Drum-hub Diameter | ¢38mm |
Cable Diameter | ¢4.8mm |
Cable Length(m) | None |
Hook Typen | None |
Surface Treatment | Black Coated |
Hand length (mm) | 280mm |
N.W(kg)/pcs | 4.3kg/pcs |
Pcs/Each Carton | 4pcs |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Contact Person: Peter
Tel: 86-13958364836
