Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,Zhejiang,China |
| Brand Name: | Newart |
| Certification: | ISO |
| Model Number: | LDE2600N |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Inner Box and outside carton |
| Delivery Time: | 25-30days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000pcs/month |
| Capacity: | 2600LBS | Power Source: | Hand Source |
|---|---|---|---|
| Application: | Lifting | Material: | Steel A3 Or Stainless Steel |
| Gear Ratio: | 10:1 | Brake System: | Automatic Brake |
| Certification: | CE | Surface Treatment: | Power Coated Or Zinc Plated |
| High Light: | stainless steel hand winch with brake,2600Lb Stainless Steel Hand Winch,2600Lb Boat Hand Winch |
||

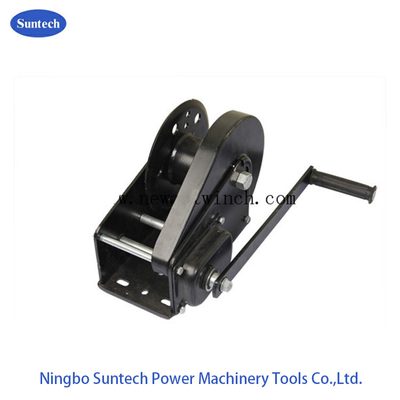

2600lbs Black Color Marine Hand Winch Automatic Brake With CE Approved
The automatic brake winch ensures the load remains suspended when the crank is released and avoids unchecked descent of the load;Newart provides the extra hands you need for fast and sure tow make-up and breakdown with a complete line of hand winches in both left and right hand models
Descriptions
Heavy gauge zinc plated steel frame.
Adapts for ratcheting or free spooling.
Five slots in base to allow multiple fixing positions to suit most trailers, boats, caravans.
Ratchet Type: Two Way, The higher position is for pulling, the lower position is for releasing, the middle position is for both pulling and releasing, but can only be used when unloaded.
Ideal use on pickup trucks, trailers and other mobile applications.
Installs easy with bolts and lock nuts (not included).
Product Name: Hand Brake Winch
Work Load: 2600lbs
Gear Ratio: 10:1
| Model | LDE1200C | LDE1800C | LDE2600C |
| Safe working load (Lbs) | 1200 | 1800 | 2600 |
| Test load (KN) | 8 | 12.13 | 17.64 |
| Drum-hub Diameter (mm) | ￠48.5 | ￠60 | ￠80 |
| Gear ratio | 4.2:1 | 5:1 | 10:1 |
| Hand length (mm) | 210 | 320 | 320 |
| N.W/G.W (kg) | 3.7/4.5 | 8.1/9.0 | 10.4/11.5 |
| Package size (cm) | 16X16X22 | 35X20X23 | 35X24X24 |
