Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | CE |
| Model Number: | JJC5B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export cases |
| Delivery Time: | 10-15 days after deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200pcs/month |
| Product Name: | Wire Rope Winch | Power: | 5.7 Kw |
|---|---|---|---|
| Capacity: | 50KN | Usage: | Transmission Line |
| Engine: | Gas Or Diesel | Warranty: | 1 Year |
| High Light: | manual boat winch,manual cable winch |
||

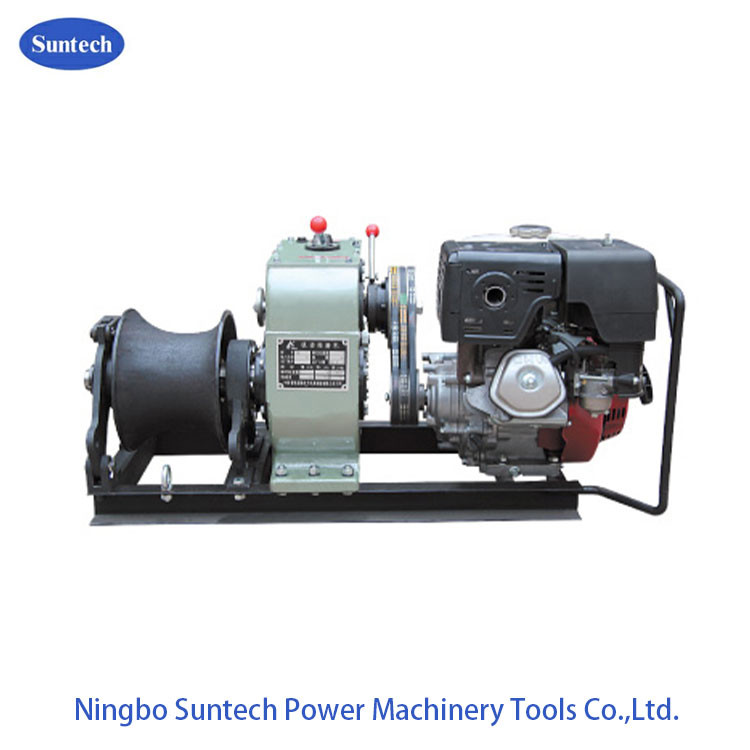

5 Ton Fast Speed Diesel Wire Rope Winch For Cable Pulling
5 Ton Fast Speed Diesel Wire Rope Winch For Cable Pulling is used for tower erection, stringing in electric power line construction.
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Technical Data
| Model Type | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power(KW) | Dimension(mm) | Weight(kg) |
| JJM-5B 186F Diesel Engine | Fast | 9 | 24 | 5.7 | 1100*498*600 | 137 |
| Mid | 15 | 14 | ||||
| Mid | 30 | 9 | ||||
| Slow | 50 | 5 |
Contact Person: Peter
Tel: 86-13958364836
