Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | NEWART |
| Certification: | CE&TUV |
| Model Number: | LDC3000W |
| Minimum Order Quantity: | 300pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Color Boxes and Cartons |
| Delivery Time: | 30-35 days after deposit |
| Payment Terms: | L/C, T/T, D/A, Western Union |
| Supply Ability: | 30000pcs/month |
| Capacity: | 3000lbs | Gear Ratio: | 5.1:1&12.2:1 |
|---|---|---|---|
| Cable Or Strap: | Both Are Ok Or None | Power Source: | Manual |
| Usage: | Cranes,lifting,Transportation | Surface Treatment: | Galvanized Or Powder Coated |
| Warranty: | 12 Months | Max. Capacity: | 4000lbs |
| Handle: | Plastic In Color Black Or Red | ||
| High Light: | 3000Lb Mini Manual Winch,Mini Manual Winch With Webbing,Color Strap 3000Lb Manual Winch |
||

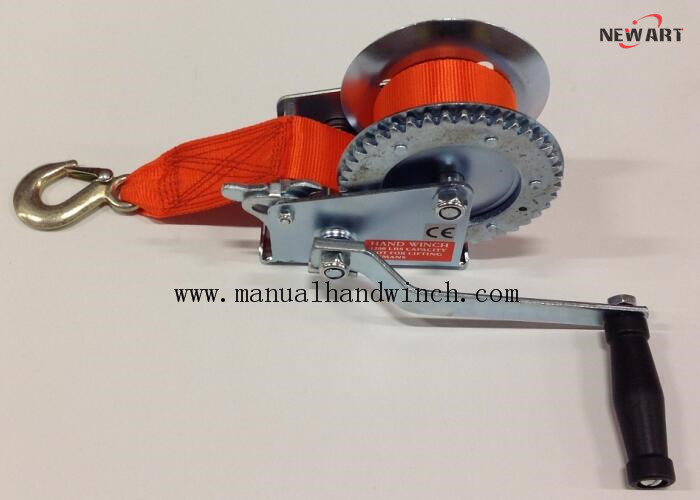

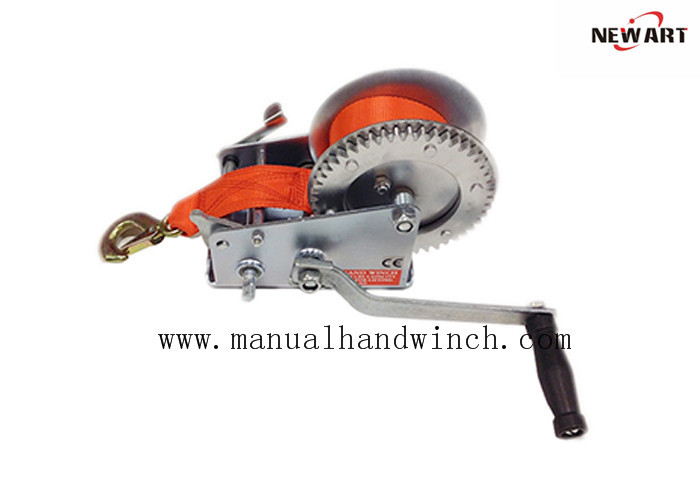

600 800 1200 1600 2500 3000 3500 LBS Lifting Manual Hand Winch:
Hand winch can be used in the snow,swamp,desert,beach and harsh environment,such as muddy road on the vehicle itselft,to remove obstacles,drag and drop items,also can be used as a modern electonic control automatic production line equipment,transportation,railway construction etc.
Descriptions:
1. Highest quality material,C#45 carbon steel
2. Best technology of gear-machined not stamped
3. Anti-rust surface treatment,Dacromet or environmetal protection galvanised.
4. Removal convenient with Released handle
5. Wonderful appearance.
| Model | Capacity (LBS/KN) | Gear Ratio | Handle Length(mm) | Drum-Hub Dia(mm) | Cable Size (mm×m) | Size of Color Belt | PCS/Carton | Size package (cm) |
| LDC600C | 600(270) | 3.1:1 | 165 | φ16 | φ4.2×8 | 1.0×50×8m | 6 | 59×26×16 |
| LDC800C | 800(360) | 3.1:1 | 175 | φ16 | φ4.2×8 | 1.0×50×8m | 6 | 59×26×16 |
| LDC1000C | 1000(450) | 4.1:1 | 200 | φ18 | φ4.2×10 | 1.2×50×8m | 6 | 66×27×18 |
| LDC1200C | 1200(540) | 4.1:1 | 225 | φ18 | φ4.2×10 | 1.4×50×8m | 6 | 66×27×18 |
| LDC1400C | 1400(630) | 4.5:1 | 225 | φ18 | φ4.5×10 | 1.6×50×8m | 6 | 67×27×19 |
| LDC1600C | 1600(720) | 5.1:1 | 225 | φ20 | φ4.8×10 | 1.6×50×8m | 4 | 46×31×20 |
| LDC1800C | 1800(810) | 4.1:1&9.8:1 | 250 | φ20 | φ4.8×10 | 1.8×50×8m | 4 | 52×31×20 |
| LDC2000C | 2000(900) | 4.1:1&9.8:1 | 250 | φ20 | φ5×10 | 1.8×50×8m | 4 | 52×31×20 |
| LDC2500C | 2500(1100) | 5.1:1&12.2:1 | 275 | φ42 | φ5×10 | 2.0×50×8m | 4 | 54×31×22 |
| LDC3000C | 3000(1363) | 5.1:1&12.2:1 | 275 | φ42 | φ5×10 | 2.0×50×8m | 4 | 54×31×22 |
| LDC3500C | 3500(1590) | 5.1:1&12.2:1 | 275 | φ42 | φ5.5×10 | 2.0×50×8m | 4 | 54×31×22 |
