3 Ton Belt Driven Cable Winch Puller Cable Pulling Winch With YAMAHA or Honda Engine
Brief introduction of engine powered winch
Winch is simple and lightweight structure. Can be used for transmission line construction neutral tower, overhead line and other operations, is set up aerial high voltage transmission lines and laying of underground cable construction machinery, smooth, easily Tower Group legislature leather in a variety of complex conditions, erection and other lifting wires, traction. The experiments and field proven practical effect, have combined management, small size, light weight, great skill, flexible operation, easy handling advantages and widespread electricity operators welcome.

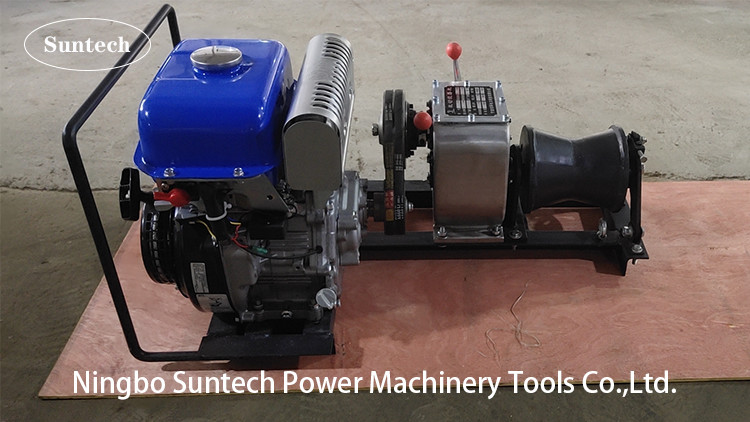

3 Ton Belt Driven Cable Winch Puller Cable Pulling Winch With YAMAHA Engine
The winch is powered by YAMAHA gasoline engine. It is drived by V-belt between power and gear box, and is equipped with brake clutch.
Cable Winch is used for tower erection, pole setting, stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Cable Winch Puller 3 Ton Gas Engine Powered Cable Drum Winch For Hoisting
Features of engine powered winch
1. High versatility
2. Compact structure
3. Small volume, light weight, convenience in using and transferring
4. Driving stably
5. Very light noise
6. With big drum rope capacity to make you a wide range of choice for the pulling length.
7. Adjustable pulling speed for different usage environment.
Technical Data of 3 Ton Belt Driven Cable Pulling Winch With YAMAHA Engine
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3-Q | YAMAHA engine | Slow | 4 | 3 |
| Quick | 7 | 1.8 | ||
| Reverse | 3.5 | No lifting |
Other Type Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3Q | Petrol engine 6HP | Slow | 4 | 3 |
| Quick | 7 | 1.8 | ||
| Reverse | 3.5 |
