Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,Zhejiang,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE and GSG |
| Model Number: | LDC1600W |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Exported Packing Carton or Pallet |
| Delivery Time: | 25-30 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000pcs/month |
| Capacity: | 1600lbs(727kg) | Gear Ratio: | 5.1:1 |
|---|---|---|---|
| Surface Treatment: | White Zinc Coated | Handle Length: | 225mm |
| Belt Size: | 50mm X 8m Or Customized | Weight: | 4.5kg |
| High Light: | manual boat winch,manual cable winch |
||

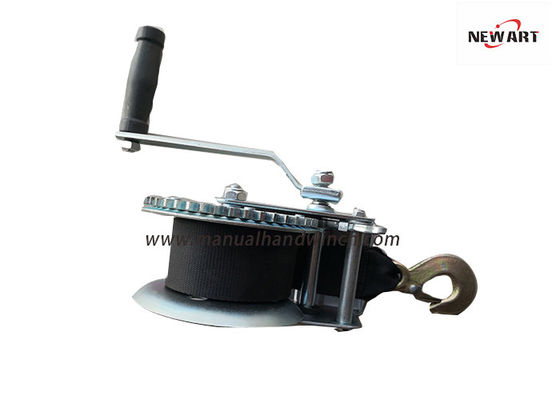

1600lbs Black Strap Portable Boat Trailer Small Hand Winch , Hand Operated Winches
Strap or wire rope hand winch installed on automobiles can also pull pieces of equipment or trailers behind the automobile at a slow speed,or help to remove brush, stones or other large, heavy objects to which the winch cord is connected. Wire cable hand winch self-activating automatic brake hold the load securely when crank handle is released.Hand winch large drum hub to maximize cable life.Hand winches are most often ratchet devices or use spur or worm gears to operate the drum. Manual winches typically have bolt holes at the bottom or side of the housing for mounting.A mini hand winch or light duty hand winch can be used for small loads and tight spaces .
Specificatins in details
| Model | LDC1600W |
| Capacity (LBS/KN) | 1600lbs(727kg) |
| Gear Ratio | 5.1:1 |
| Handle Length | 225(mm) |
| Drum-hub Diameter | ₵20(mm) |
| Surface Treatment | White Zinc Coated or Customized |
| Belt | 50mmx8m |
| Gross Weight | 3.5kg/pcs |
| Quantity in carton | 4pcs/carton |
