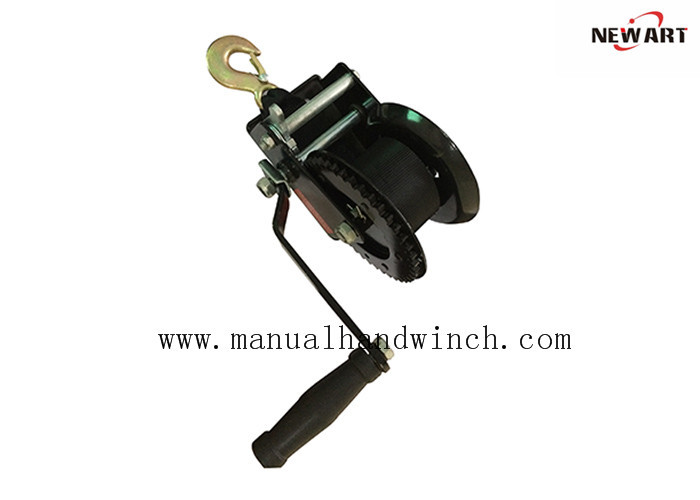

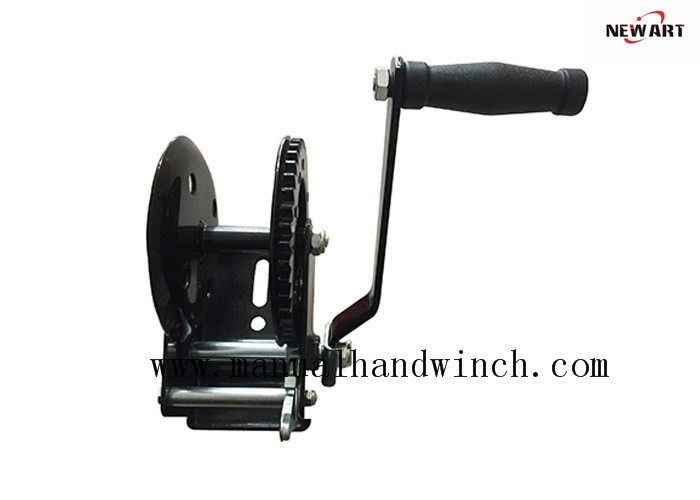

1200Lbs Hand Winch , Manual Winch With Ratchet / Hand Brake Winch
Application:
Manual Hand Winch as a lifting tool,application range is very extensive,such as boat trailer to pull small aluminum boat,rubber dinghy,greenhouse of farm,lifting air-conditioner according to different demand.
Manual windlass,cable winch,manual winch is used as a widespread instrument for automobile, shipping, transport, workshop.Hand winch can be used in the snow,swamp,desert,beach and harsh environment,such as muddy road on the vehicle itselft,to remove obstacles,drag and drop items,also can be used as a modern electonic control automatic production line equipment,transportation,railway construction.
Character:
1. Be used to pull or life loads
2. Soft rubber handle
3. Steel wire or webbing are both can use
4. Compact structure, small volume, light weight
5. High commonality, easy to move
Quick detail:
1. Heavy duty rated capacity for pulling goods up to 1200lbs
2. Max rolling load of 1450lbs
3. Working load:950lbs
4. Black Power Coated
5. Without Cable and Webbing
Capacity from 600lbs to 3500lbs for Choice
| Model | LDC1200N |
| Capacity (LBS/KN) | 1200LBS |
| Gear Ratio | 4.1:1 |
| Handle Length | 225(mm) |
| Drum-hub Diameter | ₵18(mm) |
| Surface Treatment | Galvanised |
| With Cable or Strap | NO |
| Net Weight | 2.6kg/piece |
| Quantity in carton | 6pcs/carton |
| Outside Carton Size | 66*27*18(cm) |
