8 Ton Gasoline Engine Powered Winch,Hoist Winch For Power Construction
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.
Our group branch company and factory have already engaged in the field of electric power more than 26 years.
Steel structure industry especially steel towers and related products which include power towers and substation structures,
telecommunication towers and related products of telecom sites, street light poles and so on.
Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,
Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,
aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,
holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

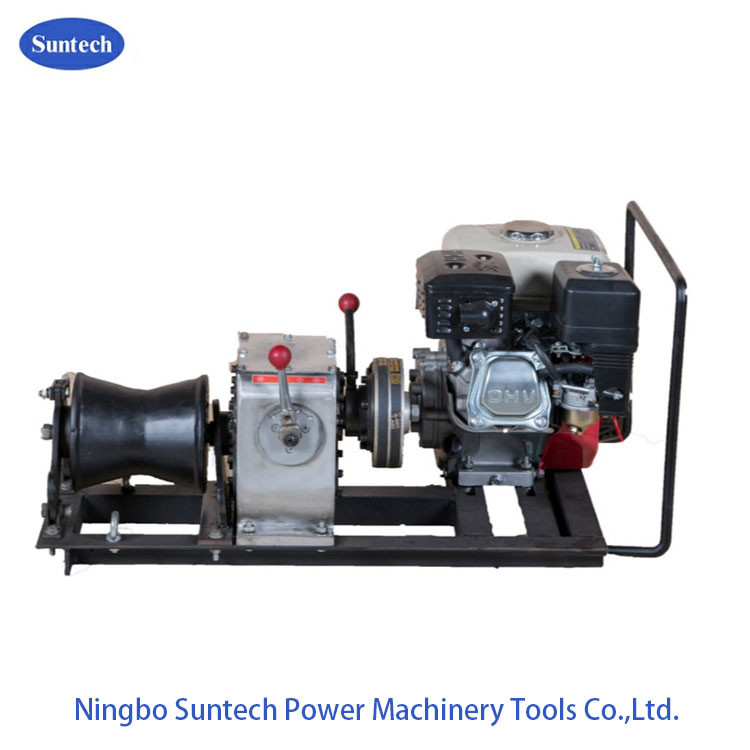

Heavy Duty 8 Ton Petrol Engine Powered Cable Towering Machine Winch Application
Manufacturer 8 Ton Petrol Engine Powered Cable Towering Machine Winch is used for tower erection,pole setting,stringing
wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Technical Data Hoist Winch For Power Construction
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(KN) |
| JJM-8Q | 13HP Yamaha | slow | 4 | 80 |
| fast | 8 | 40 | ||
| reverse | 3.8 |
