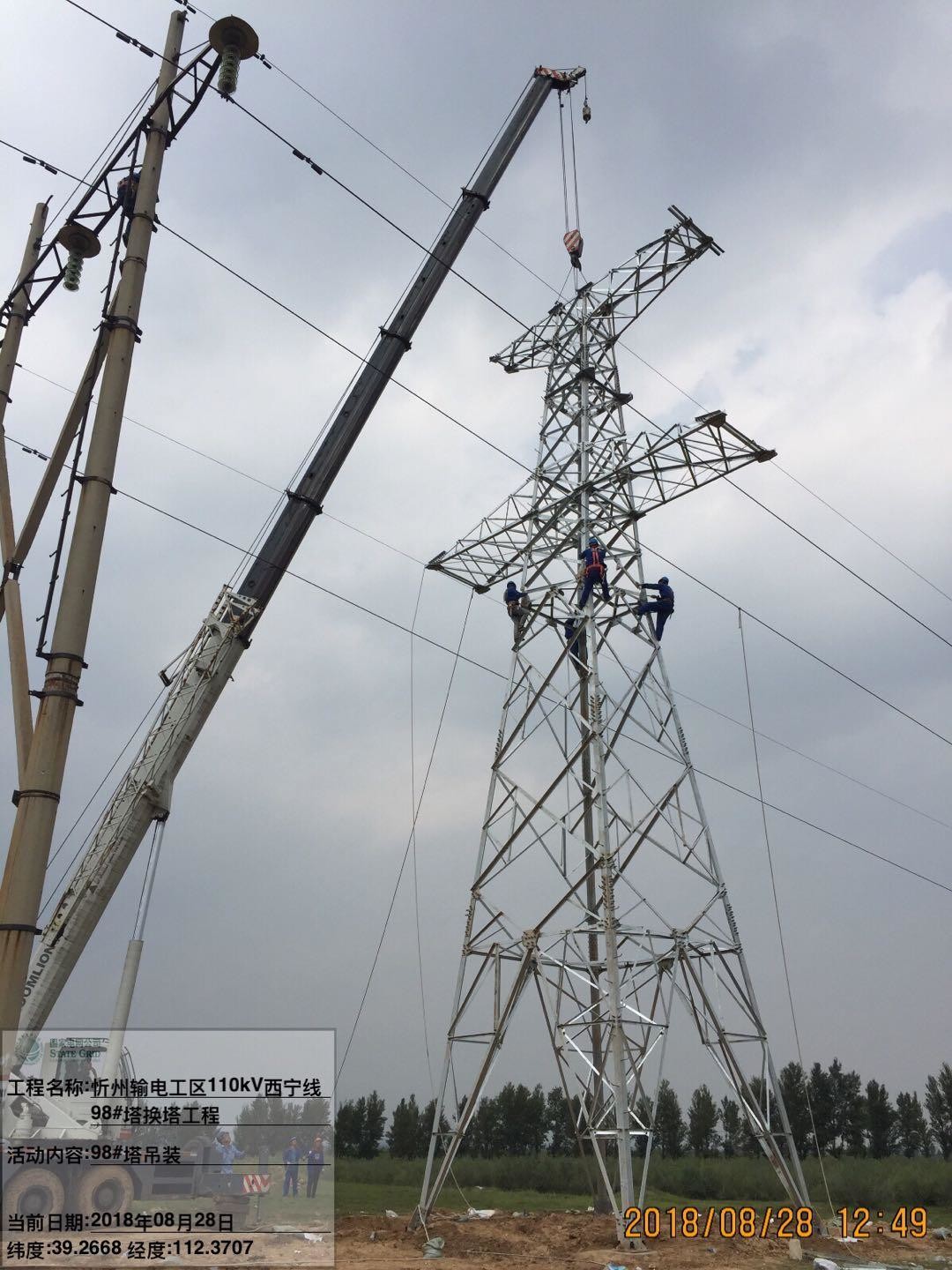

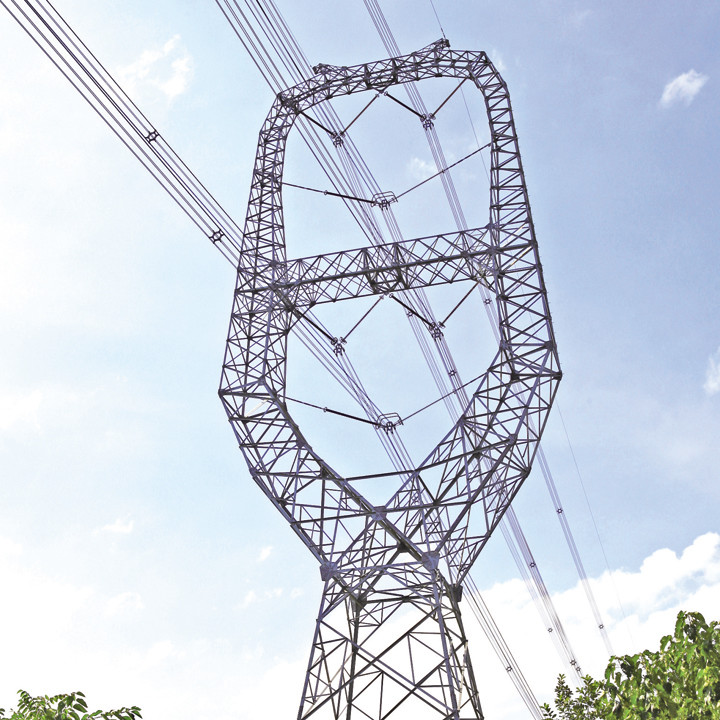

110KV 132KV Galvanized Angel Steel Lattice Transmission Line Tower

110KV 132KV Galvanized Angel Steel Lattice Transmission Line Tower

  • 110KV 132KV Galvanized Angel Steel Lattice Transmission Line Tower
  • 110KV 132KV Galvanized Angel Steel Lattice Transmission Line Tower
110KV 132KV Galvanized Angel Steel Lattice Transmission Line Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Steel Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest prices
Packaging Details: Exported Containers
Delivery Time: 35 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Power Transmission Tower Material: Steel Q355/Q255
Voltage Grade: 110KV/132KV Surface Treatment: Hot Dip Galvanised
Wind Speed: 120KM/H Lifetime: Over 30 Yeas, According To Installing Environment
High Light:

Galvanized Lattice Transmission Line Tower

,

110KV Angel Steel Transmission Line Tower

,

132KV Galvanized Lattice Transmission Tower

110kv 132kv Galvanized Angel Steel Frame Power Tower Lattice Transmission Line Tower



Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line tower in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.



Our factory has been experienced at the production and processing of iron tower. Now it owns 16 processing angle steel CNC processing and production lines, 9 plate CNC punching production lines, and 4 gantry-type mobile CNC drilling machines. Its sophisticated microcomputer lofting system takes the lead in China. Our factory has a stable team composed of experienced engineering technicians, production technicians and operators. More importantly, it boosts a complete quality control and tracking system that has been implemented for years and enbled us to be highly accepted by customers.



Product Steel Structure Tower
Height 5m to 30m or other height customer requirement
Suit for Electric Power Distribution Transmission Steel Tower
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52
Strength 2.5KN,5KN,8KN,10KN,12KN
Torlance of the dimenstion +- 2%
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade I
The casing anti-corrosion performance Class II
Working atmosphere of lighting fixture -40 ºC~+45 ºC
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles Insert mode, inner flange mode, face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160km/hour
Minimum yield strength 335mpa
Minimum ultimate tensile strength 400mpa
Max ultimate tensile strength 620mpa
Standard ISO9001
Length of per section Within 14m once forming without slip joint
Welding
We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard : AWS ( American Welding Society ) D 1.1
Thickness 1mm to 30mm
Production Process Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Style Size and styles are variable as per customer request



110KV 132KV Galvanized Angel Steel Lattice Transmission Line Tower 0
